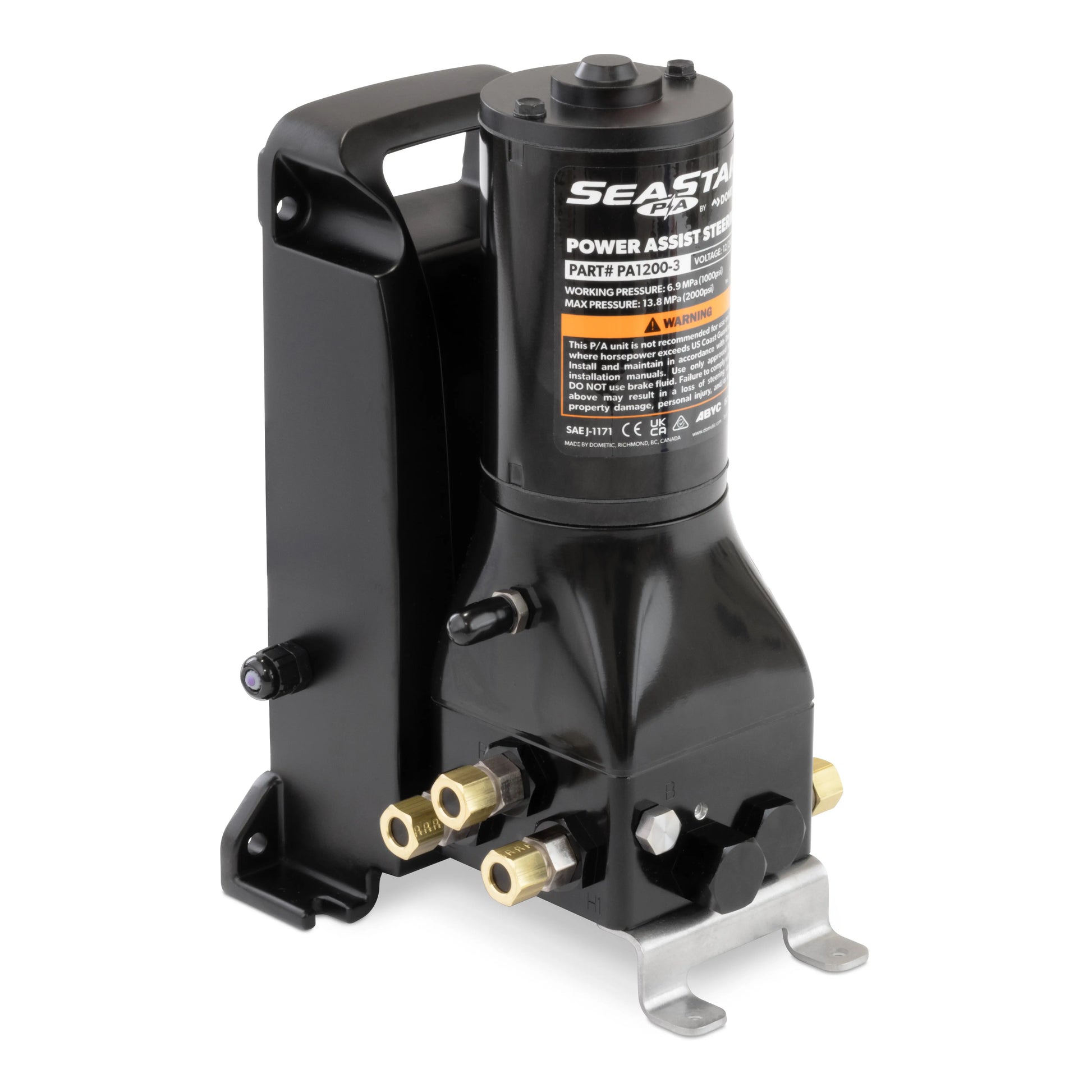

Seastar PA1200-3 Power Assist Unit 12/24v 15ft Harness

Seastar PA1200-3 Power Assist Unit 12/24v 15ft Harness

Seastar PA1200-3 12vDC Power Assist Pump with 15ft Harness

• ORB Fittings


• Dramatically reduces steering effort in heavy or high torque applications


• Easy install. Wall or Floor mount


• OEM or retro-fit


• Simple add-o to an existing SeaStar steering system (from 1.4 to 2.4 SeaStar helms)


• Compatible w/ power purge system


• Return to manual in failure mode


• Suitable for boats w/ multiple engines and rudders, multiple steering stations, and autopilots


• Ignition protected (SAE J-1171). ABYC, CE, NMMA, ISO 10592 Approved

Voltage
12V

System Pressure
1000 psi MAX

Current Draw
40 A MAX, 60 A Peak (1 A System Electronics)

,

Seastar PA1200-3 Power Assit Unit 12/24v with 15ft Harness

The marine industry is continually introducing heavier, more powerful outboard engines. The Dometic SeaStar Steering Power Assist lets you steer these bigger, faster boats with the same comfort and ease that you'd expect when driving a car. Recommended for any boat that is 200 hp and above.

The Dometic SeaStar Power Assist Steering System is comprised of two circuits: a hand operated manual system, which is the control element, and a hydraulic power pump, which is the working element. The manual system consists of a helm pump with internal relief and check valves, and a built in reservoir. The power system is an electronically controlled hydraulic pump that boosts the fluid being sent from the helm pump to the steering cylinder, resulting in much easier effort at the wheel.
