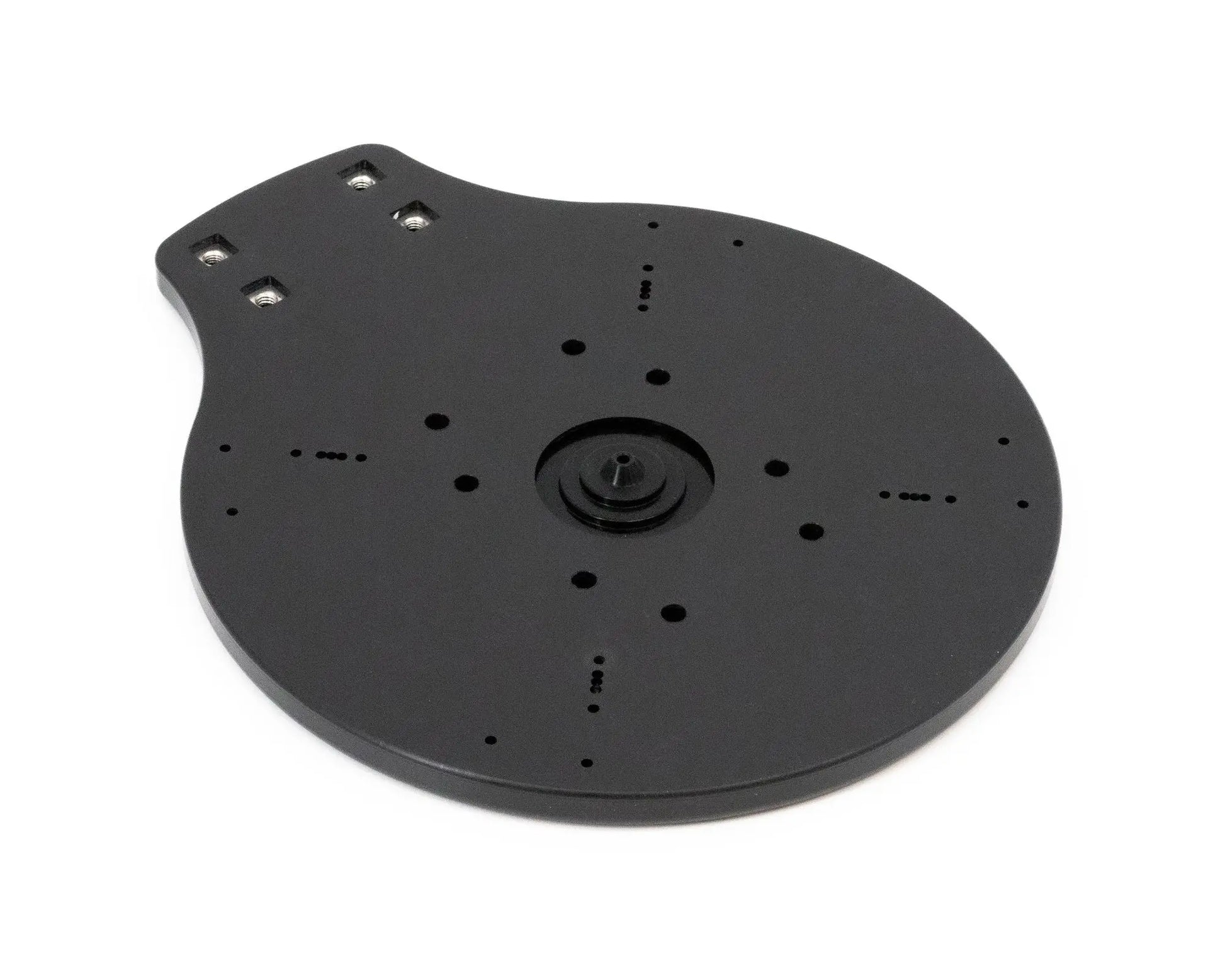

Seaview ADAS1 Plate Black For Small Satelitte Domes

Seaview ADAS1 Plate Black: The Ideal Mounting Solution for Small Satellite Domes

Seaview ADAS1 Plate Black For Small Satelitte Domes

Seaview's innovative new modular electronic mounts feature a unique universal plate design that provides a cleaner look and greater installation flexibility. A pre-drilled anodized aluminum plate is incased inside the UV stable white ABS plastic. There are dimple holes on the top surface of the top plate match up with a drill template allowing you to precisely drill the appropriate holes for your specific radar. The end result is a nice clean look with no unwanted visible holes.

This modular Top Plate fits:

Features:

• No more unwanted visible holes in the mounting plate!
• Easy 3 step modular system.
• Aft, forward, vertical and dual mount designs..
• Easily add on accessories such as lightbars, spreader kits, hinges, wedges and much more!

Closed Dome Radar, Small Satdomes (16 in or smaller) & Cameras

PMF-57-M1 5 in Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required PMF-107-M1 10 in Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-57-M1 5 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-107-M1 10 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-167-M1 16 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-247-M1 24 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-367-M1 36 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required AM5-M1 5 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required AM12-M1 12 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required AM18-M1 18 in Modular Mnt/ Vertical / 8 in Rnd base plate / Light bar compatible / Top plate required Large Satdomes (18 in - 24 in)

PMA-57-M1 5 in Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-1210-M2 12 in Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required PMA-1810-M2 18 in Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required PMA-DM1-M2 12.5 in Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes / Top plate required PMA-DM2-M2 22.5 in Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes / Top plate required

Step 2
Choose Top Plate
ADA-R1 Modular plate for almost ALL closed dome and open array radars (Confirm proper fit with ref guide) Satdome
ADA-S1 1 Modular plate for KVH M1/M2/M3 , Intellian i1/i2/i3, Raymarine 33/37STV, SeaKing 1500/1800-HD, SeaTel ST14
ADA-S2 Modular plate for KVH M5/M7, Intellian i4/i6/d6, Raymarine 45/60STV, SeaTel C18/C24 ADA-S3 2 Modular plate for KVH M1, Intellian i1/i2, Raymarine 33STV, SeaKing 1500/1800-HD
ADA-S4 Modular plate for ALL FB150 & FB250 domes ADA-F1 Modular plate for FLIR M or Ray T series thermal cameras Step 3 Choose Optional Accessories
LTB-R 1 1/4 in Light bar for closed dome radar / folds over 90 deg. / Must pick a LTB TOP below
Must pick a LTB TOP below Must pick a LTB TOP below Must pick a LTB TOP below Must pick a LTB TOP below Must pick a LTB TOP below (LTB TOP) Standard 1-14 thread for GPS or similar
LTB-U1A (LTB TOP) Perko 1197 light with 7 feet of wire / USCG approved for boats up to 20 meters (65. 6 ft) in length.
LTBA-7800 (LTB TOP) Universal box top for All-round, Masthead & Stern (lights not included)
PM-114LT-DLX Floodlight kit for 1 1/4 in. dia. LTB (includes 4 in X 6 in 55-watt 14V quartz halogen floodlight & hardware) PM-U2A Light bar adapter to mount a light and 2 GPS (electronics not included) PM-W4-7 4 degree wedge/ for 7x7 radar mount base plate Hinge Adapters for base plate
PM-H8 Hinge adapter/ for 8x8 base plate/ (fits most 24 -36 in. tall Radar Mounts)

Durable Construction and Design

The Seaview ADAS1 Plate Black is engineered with high-quality materials to ensure durability and long-lasting performance. Specifically designed for small satellite domes, this mounting plate provides a robust foundation for secure installation. Its sleek black finish not only adds a professional look but also offers resistance against corrosion and environmental wear. By maintaining structural integrity over time, the Seaview ADAS1 Plate Black guarantees stable support essential for consistent satellite operations in challenging conditions.

Compatibility and Easy Installation

The Seaview ADAS1 Plate Black is designed for easy compatibility with a range of small satellite domes commonly used in marine and land applications. Its precise dimensions and versatile mounting points simplify the installation process, reducing setup time significantly. Whether you are upgrading existing systems or installing new satellite equipment, this plate ensures a perfect fit, minimizing adjustments and ensuring that the dome remains securely positioned for optimal satellite signal reception.

Enhanced Performance for Satellite Communication

Using the Seaview ADAS1 Plate Black enhances the overall performance of small satellite domes by providing a stable platform resistant to vibration and movement. This stability is crucial for maintaining uninterrupted signal quality, especially in dynamic environments like maritime vessels or remote locations. The plate’s sturdy design supports the dome’s integrity, preventing misalignment and signal dropouts, thus facilitating reliable and continuous satellite communication essential for navigation, data transmission, and entertainment systems.
