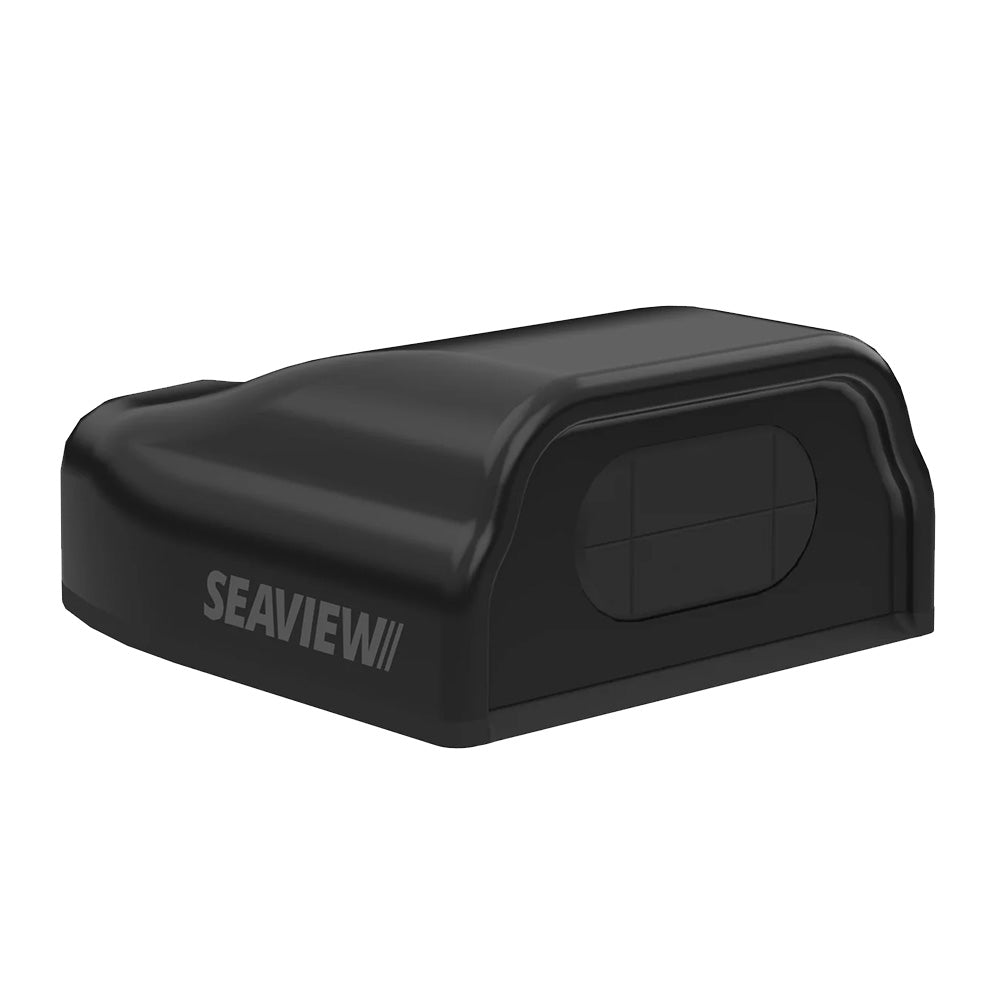

Seaview Black Plastic Horizontal Cable Seal Part CGM90 for Multiple Wires

Black Plastic Horizontal Cable Seal for Multiple Wires

The Seaview horizontal cable seal (90-degree cable seal) is a streamlined, waterproof seal that has a horizontal orientation. This cable seal fits cable diameters up to 0.53 (13.5mm). Max connector size approx. 0.375-0.5 (9.5 mm-12.7 mm) depending on connector length and type.

It has a plastic housing (white or black) that is strong and impact-resistant, with a captive nut in the base to make it easy to assemble. The tapered rubber bung forms a watertight seal and is supplied with a drill tube allowing you to drill your own custom diameter seal. This is also supplied with a thick rubber base gasket. IPX6 / IPX8 tested and approved.

These Cable Seals will work with more than one cable as long as each cable has its own hole and there is at least .125 of rubber around each hole.

The Seaview CGM90 horizontal cable seal is a durable and waterproof sealing solution designed for multiple wires passing through a single point. Its streamlined, 90-degree orientation allows for efficient cable management in various applications. The plastic housing, available in black, is impact-resistant and provides a secure, long-lasting seal. The built-in captive nut in the base simplifies installation, ensuring a secure fit without additional hardware. Featuring a tapered rubber bung, this seal creates a watertight barrier, protecting your cables from moisture and environmental elements. The included drill tube enables customization of the seal diameter to accommodate different cable sizes, while the thick rubber base gasket adds extra sealing strength. Tested and approved to IPX6 and IPX8 standards, this cable seal offers reliable protection in outdoor or harsh conditions. It is suitable for cables with diameters up to 0.53 inches (13.5mm) and connectors approximately 0.375-0.5 inches (9.5-12.7mm), depending on connector length and type. The design supports multiple cables passing through a single hole, provided each cable has at least 0.125 inches of rubber around the hole, making it an ideal choice for secure cable entry points in various settings.

Features:

• Waterproof and impact-resistant plastic housing for durability

• Impact-resistant housing available in black for visibility and protection

• Captive nut in the base simplifies installation process

• Tapered rubber bung forms a watertight seal

• Drill tube included for custom diameter sealing

• Thick rubber base gasket enhances sealing performance

• Suitable for cables up to 0.53 inches (13.5mm) in diameter

• Supports multiple cables with proper spacing and rubber coverage

• Tested and approved to IPX6 and IPX8 standards for water resistance

• Designed for outdoor and harsh environment applications
