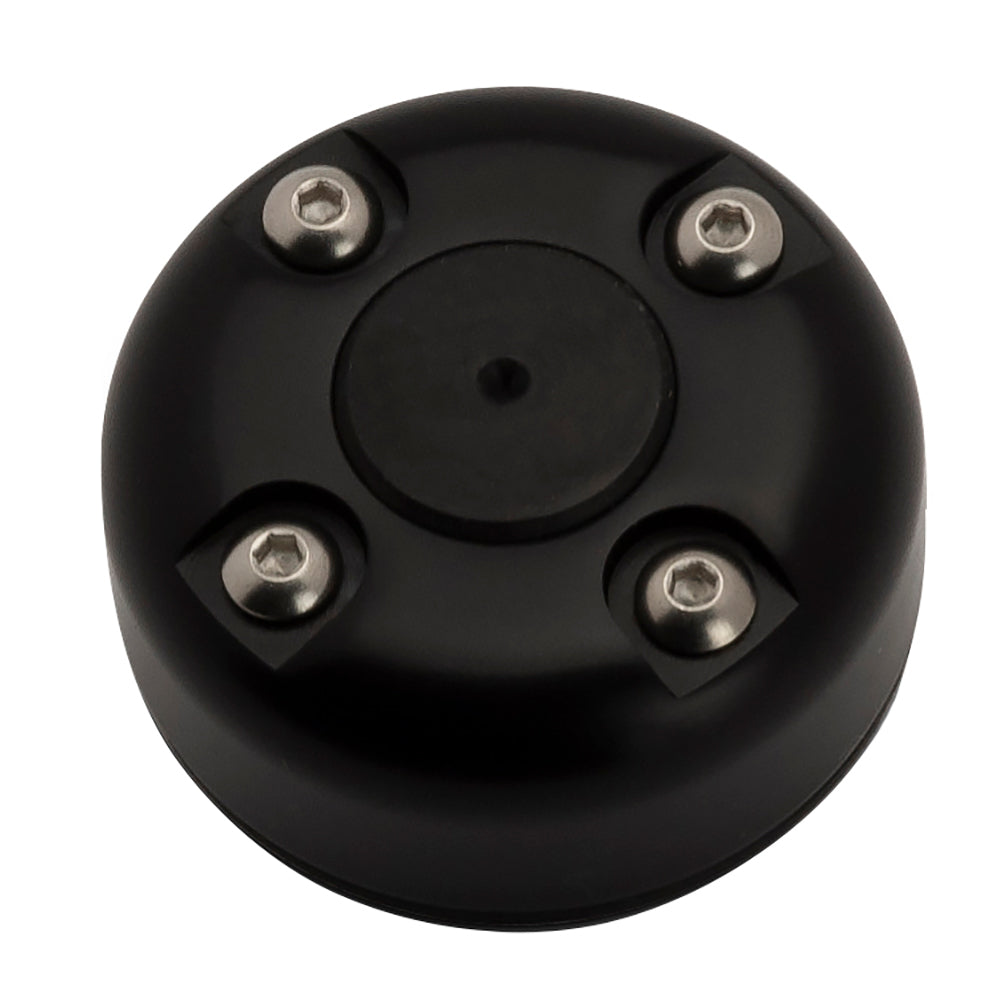

Seaview Cable Seal with Cover - Black Powder Coated Stainless Steel Wire Size 2-10mm

Cable Seal with Cover - Black Powder Coated - Stainless Steel Wire - Size 2-10mm

The Seaview Cable Seals (also known as CableClams, Cable Glands or Deck Seals) provide waterproof cable routing. These are made of very strong plastic or marine grade 316 stainless steel and come in a variety of colors and finishes. Seaview cable seals fit a wide range of cables and connectors. Seaview Cable Seal options for 17mm to 34mm (0.67 to 1.38) connectors, making it ideal for almost every installation.

Features:

• No need to remove connectors - The split seal design eliminates the need to remove cable connectors during installation
• Watertight installation - Tapered rubber seal forms watertight installation. Base gasket also provided for clean, watertight installation. Waterproof rating of IPX6 and IPX7
• Improved shape and design - Low profile design for a strong, impact-resistant and clean installation. No sharp edges
• Drill tubes included - Each cable seal comes with 4 brass drill tubes (6, 8, 10 12mm). These are used to drill very clean and easy holes vs a typical drill bit. Some other brands do come with pre-drilled rubbers but we choose to include metal drill tubes that can be recycled or reused when finished vs the extra rubber pieces that will end up in the landfill from others

Note:

*All Seaview Cable Seals (including the round Cable Seals) will work with more than one cable as long as each cable has its own hole and there is at least .125" of rubber around each hole.

The Seaview Cable Seal with Cover offers a reliable waterproof solution for cable routing in marine and industrial environments. Constructed from durable stainless steel and featuring a black powder-coated finish, this seal is designed to withstand harsh conditions while providing a secure seal around cables ranging from 2mm to 10mm in diameter. Its impact-resistant, low-profile design ensures a clean installation without sharp edges, making it suitable for applications where safety and durability are paramount.
Its unique split seal design allows for easy installation without the need to remove existing connectors, saving time and reducing installation complexity. The tapered rubber seal creates a watertight barrier rated at IPX6 and IPX7, protecting against water ingress in challenging environments. The included base gasket enhances sealing integrity and contributes to a professional, clean appearance. Drill tubes made of brass are supplied with each unit, facilitating precise and clean hole drilling for cables, avoiding the mess and inefficiency associated with standard drill bits. These reusable drill tubes are environmentally friendly, reducing waste compared to pre-drilled rubber options.
Compatible with multiple cables and connectors within the 17mm to 34mm (0.67 to 1.38 inches) range, the Seaview Cable Seal is versatile for various installation needs. It functions effectively with more than one cable provided each cable has its own hole with at least 0.125 inches of rubber clearance. This makes the product suitable for complex cable management tasks in marine, industrial, or outdoor settings. The high-quality construction, easy installation features, and waterproof performance make the Seaview Cable Seal an excellent choice for secure cable management in demanding environments.

Features:

• No need to remove connectors during installation with split seal design

• Watertight installation achieved through tapered rubber seal and base gasket, rated IPX6 and IPX7

• Low profile, impact-resistant design with smooth edges for a clean, professional look

• Includes brass drill tubes for precise, reusable hole drilling, reducing waste
