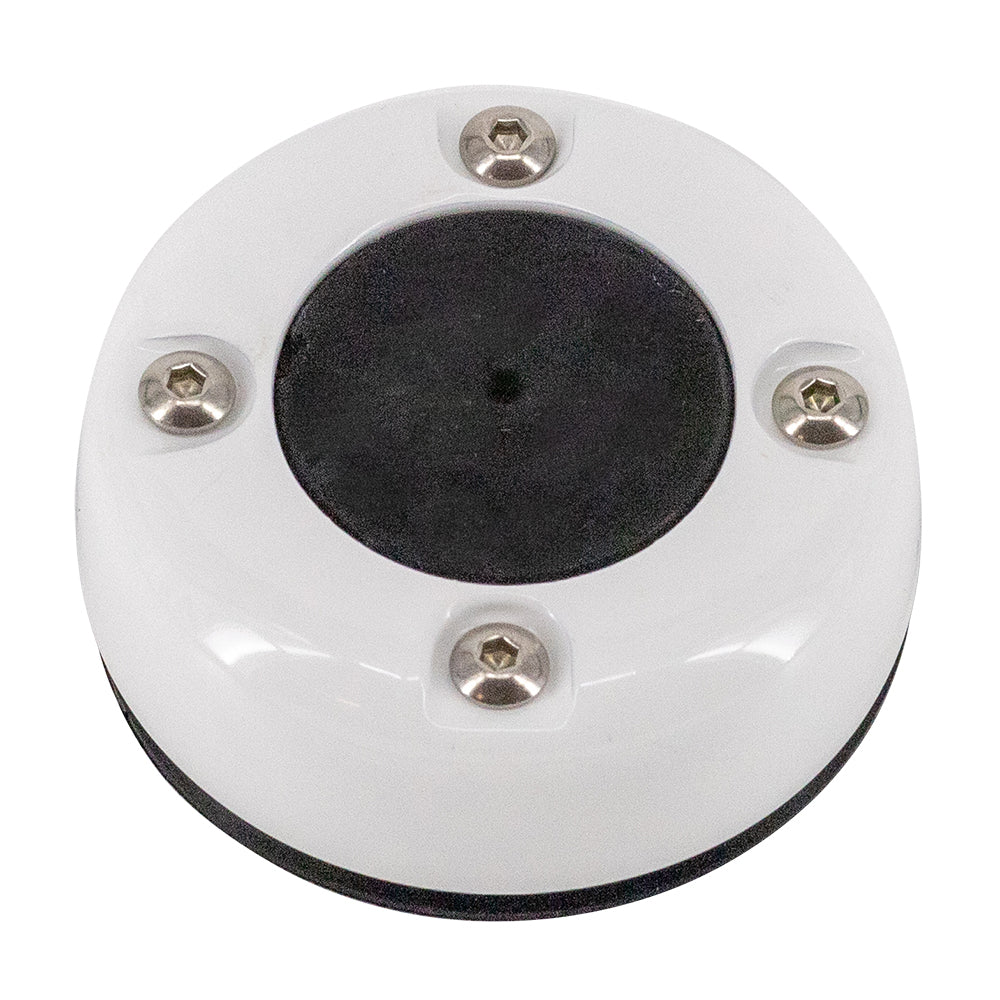

Seaview Cable Seal with Cover - White Powder Coated Stainless Steel for Wires Up to 1.08 Inches

Cable Seal with Cover - White Powder Coated Stainless Steel for Wire Up to 27.55mm/1.08"

The Seaview Cable Seals (also known as CableClams, Cable Glands or Deck Seals) provide waterproof cable routing. These are made of very strong plastic or marine grade 316 stainless steel and come in a variety of colors and finishes. Seaview cable seals fit a wide range of cables and connectors. Seaview Cable Seal options for 17mm to 34mm (0.67 to 1.38) connectors, making it ideal for almost every installation.

Features:

• No need to remove connectors - The split seal design eliminates the need to remove cable connectors during installation
• Watertight installation - Tapered rubber seal forms watertight installation. Base gasket also provided for clean, watertight installation. Waterproof rating of IPX6 and IPX7
• Improved shape and design - Low profile design for a strong, impact-resistant and clean installation. No sharp edges
• Drill tubes included - Each cable seal comes with 4 brass drill tubes (6, 8, 10 12mm). These are used to drill very clean and easy holes vs a typical drill bit. Some other brands do come with pre-drilled rubbers but we choose to include metal drill tubes that can be recycled or reused when finished vs the extra rubber pieces that will end up in the landfill from others

Note:

*All Seaview Cable Seals (including the round Cable Seals) will work with more than one cable as long as each cable has its own hole and there is at least .125" of rubber around each hole.

The Seaview CG30SW Cable Seal with Cover is designed for secure, waterproof cable routing in a variety of demanding environments. Crafted from durable, marine-grade 316 stainless steel and featuring a white powder-coated finish, this seal offers both strength and corrosion resistance. Its versatile design accommodates cables and connectors up to 1.08 inches in diameter, making it suitable for numerous installation applications. The split seal design allows for installation without removing existing connectors, simplifying the process while maintaining a tight, waterproof seal.
The tapered rubber gasket ensures a watertight fit, providing waterproof ratings of IPX6 and IPX7. This makes the Seaview cable seal ideal for outdoor, marine, or industrial settings where moisture resistance is critical. The low-profile shape offers impact resistance and a clean appearance, with no sharp edges to compromise safety or aesthetics.
Each seal includes four brass drill tubes of various sizes (6mm, 8mm, 10mm, and 12mm) to facilitate precise, clean hole drilling, which improves installation accuracy and reduces damage risk. These reusable drill tubes are environmentally friendly, minimizing waste compared to pre-drilled rubber options. The design allows multiple cables to pass through a single seal as long as each cable has its own hole with at least 0.125 inches of rubber around it, ensuring flexibility for complex wiring setups.
Whether used on boats, industrial equipment, or outdoor installations, the Seaview CG30SW Cable Seal offers a reliable, corrosion-resistant solution that simplifies installation and guarantees waterproof performance in challenging environments.

Features:

• No need to remove connectors during installation, thanks to split seal design

• Watertight installation with tapered rubber gasket and base gasket, rated IPX6 and IPX7

• Low profile, impact-resistant shape with no sharp edges for a clean, strong installation

• Includes four brass drill tubes of 6mm, 8mm, 10mm, and 12mm sizes for precise, reusable hole drilling
