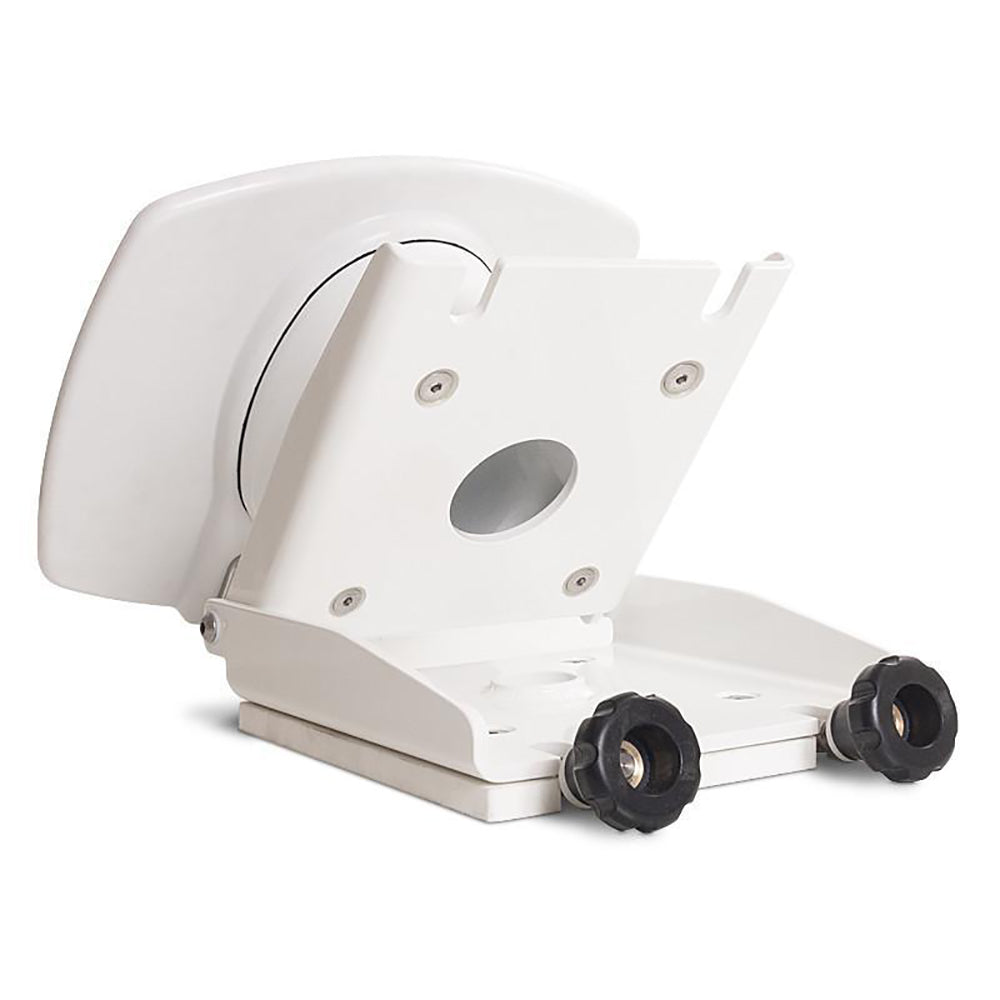

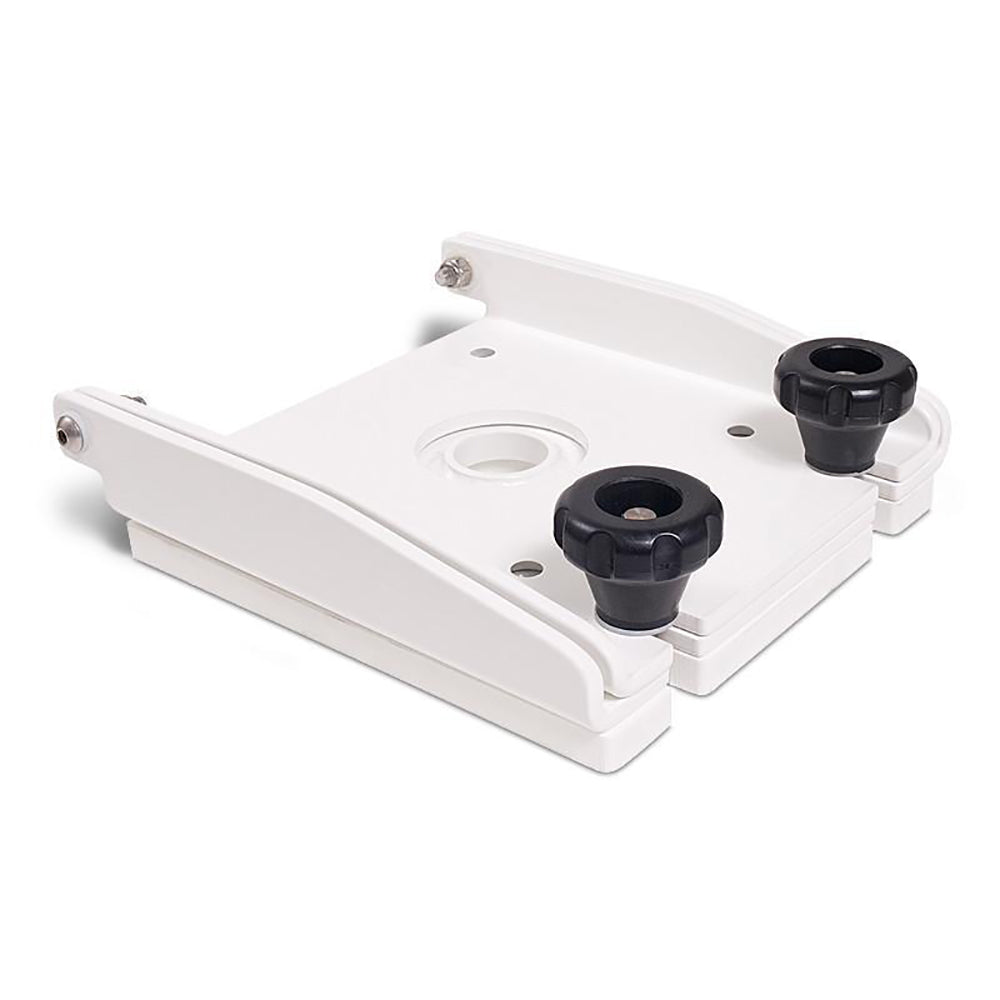

Seaview PM-H10 Hinge Adapter for 10 x 10-Inch Base Plates

PM-H10 Hingle Adapter 10x10 Base Plate

The Seaview Hinge adapter is the ideal solution for someone who needs extra height clearance when storing their boat. This allows the user to have their Seaview mount hinge backwards. Available for Seaview mounts with a base dimension of 7"x7", 8"x8" and 10-"x10".

The modular design allows the user to not have to replace the entire mount when a different radar or satdome is used. Instead the user can just replace the top plate.

No Tools Needed!

With our captive knobs you do not need tools, and these will stay with the hinge when it's open or closed.

Gain Height Clearance

Simple and easy solution to lower the height of your radar mount. The hinge adapter can hinge back 180. Allowing you the most clearance possible.

*Not to be used for PMA-DM2-M2 or PMA-200 series mounts.

Seaview PM-H10 Hinge Adapter provides additional height clearance for compatible Seaview marine radar and satellite dome mounts with a 10 x 10-inch base. Designed for boat owners who need to lower a mounted unit during storage or transport, this adapter allows the mount to hinge backward for improved overhead clearance while maintaining a clean, modular installation.

The modular design makes it unnecessary to replace an entire Seaview mount when changing radar or satellite dome equipment. Instead, users can replace the appropriate top plate as needed, helping simplify future upgrades and maintain compatibility across a range of marine electronics. The PM-H10 is intended for Seaview mounts using a 10 x 10-inch base plate and is built for straightforward installation.

Tool-Free Operation: Captive knobs secure the hinge adapter without requiring tools. Because the knobs remain attached to the hinge in both the open and closed positions, they are less likely to be misplaced during use or storage.

Extended Clearance: The hinge adapter folds backward up to 180 degrees, providing maximum clearance when the boat is stored or moved beneath height restrictions. Please note that the Seaview PM-H10 is not designed for use with PMA-DM2-M2 or PMA-200 series mounts.

Features:

• Compatible with Seaview mounts using a 10 x 10-inch base plate
• Provides additional height clearance for boat storage and transport
• Hinges backward up to 180 degrees
• Tool-free installation with captive knobs
• Captive knobs remain attached when the hinge is open or closed
• Modular design supports replacing the top plate instead of the complete mount
• Not compatible with PMA-DM2-M2 or PMA-200 series mounts
