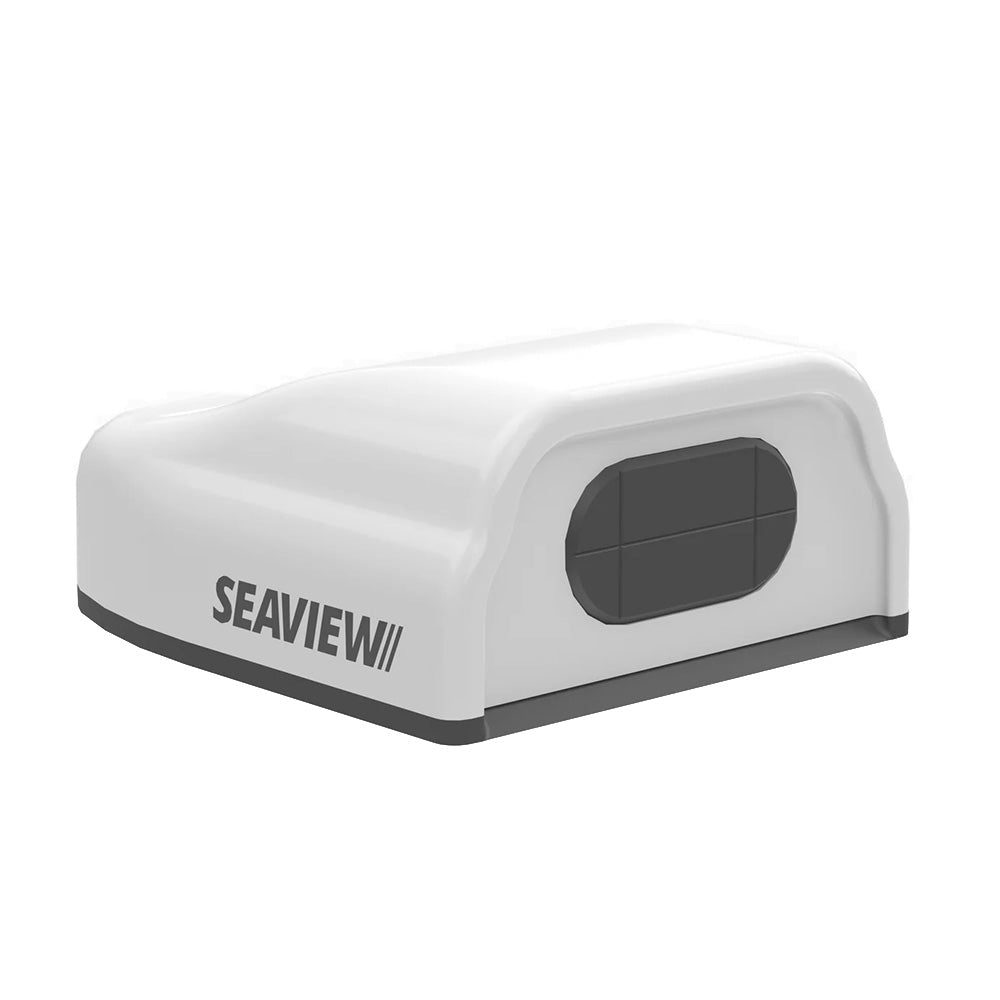

Seaview White Plastic Horizontal Cable Seal for Multiple Wires - Part CGM90W

White Plastic Horizontal Cable Seal for Multiple Wires

The Seaview horizontal cable seal (90-degree cable seal) is a streamlined, waterproof seal that has a horizontal orientation. This cable seal fits cable diameters up to 0.53 (13.5mm). Max connector size approx. 0.375-0.5 (9.5 mm-12.7 mm) depending on connector length and type.

It has a plastic housing (white or black) that is strong and impact-resistant, with a captive nut in the base to make it easy to assemble. The tapered rubber bung forms a watertight seal and is supplied with a drill tube allowing you to drill your own custom diameter seal. This is also supplied with a thick rubber base gasket. IPX6 / IPX8 tested and approved.

These Cable Seals will work with more than one cable as long as each cable has its own hole and there is at least .125 of rubber around each hole.

The Seaview CGM90W horizontal cable seal is a durable, waterproof solution designed for secure sealing of multiple wires in various applications. Crafted from impact-resistant plastic, this seal features a streamlined, 90-degree orientation suitable for tight spaces and challenging environments. Its white housing enhances visibility and ease of inspection, while the captive nut in the base simplifies installation. The tapered rubber bung ensures a watertight seal around each cable, providing protection against water ingress and environmental elements. The seal includes a drill tube, allowing you to customize the seal diameter to accommodate different cable sizes, and a thick rubber base gasket for added security. Tested and approved to IPX6 and IPX8 standards, the Seaview CGM90W guarantees reliable performance in harsh conditions. It is compatible with cables up to approximately 0.53 inches in diameter, with connector sizes ranging from about 0.375 to 0.5 inches depending on length and type. This versatile cable seal can accommodate more than one cable as long as each cable has its own drilled hole and there is at least 0.125 inches of rubber around each opening, making it ideal for complex wiring setups. Whether used in industrial, marine, or electrical applications, the Seaview CGM90W offers a robust and customizable sealing solution that ensures safety, security, and environmental protection for your wiring needs.

Features:

• Waterproof design with IPX6 and IPX8 certification ensures reliable protection against water ingress in harsh environments

• Impact-resistant plastic housing provides durability and long-lasting performance

• Horizontal 90-degree orientation allows for easy installation in tight or constrained spaces

• Captive nut in the base simplifies assembly and secure attachment

• Tapered rubber bung creates a watertight seal around multiple cables

• Includes a drill tube for customizing seal diameter to fit various cable sizes

• Thick rubber base gasket enhances sealing integrity and stability

• Compatible with cables up to 0.53 inches in diameter, accommodating a range of connector sizes

• Suitable for multiple cables as long as each has its own drilled hole with sufficient rubber clearance
