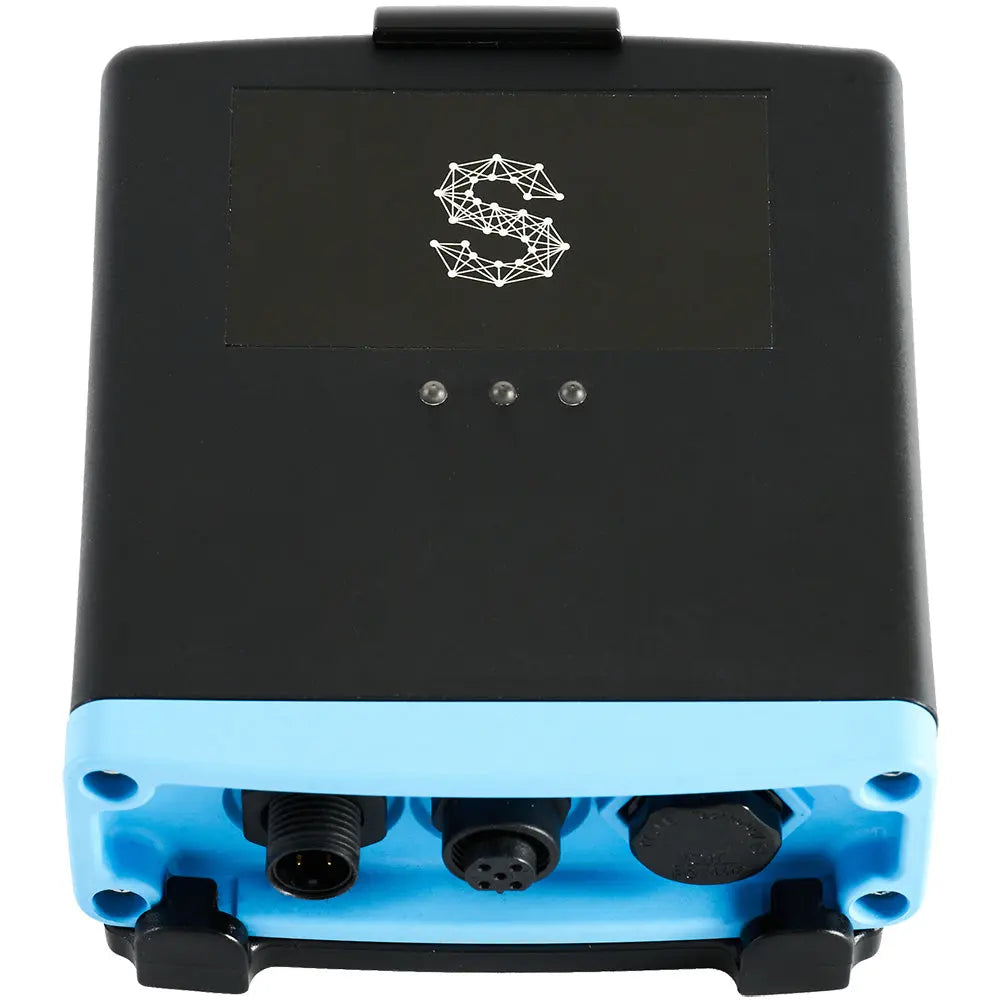

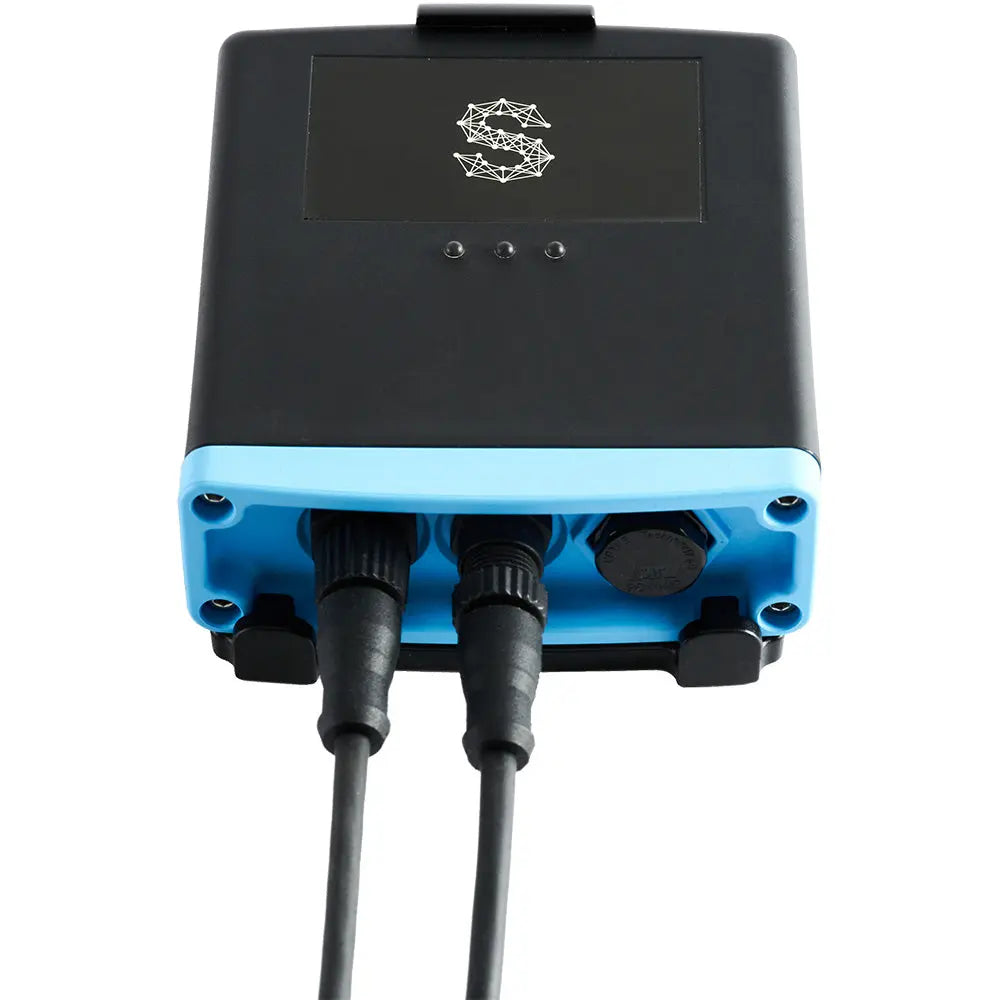

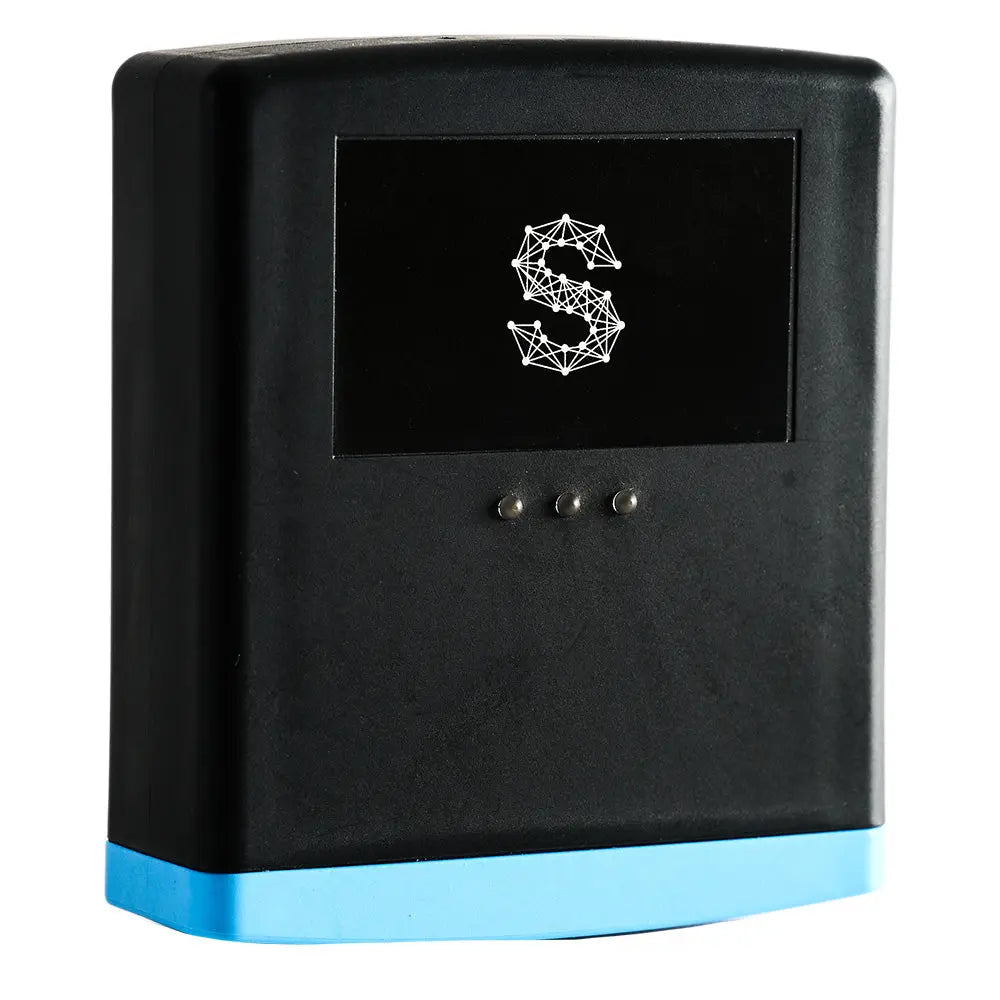

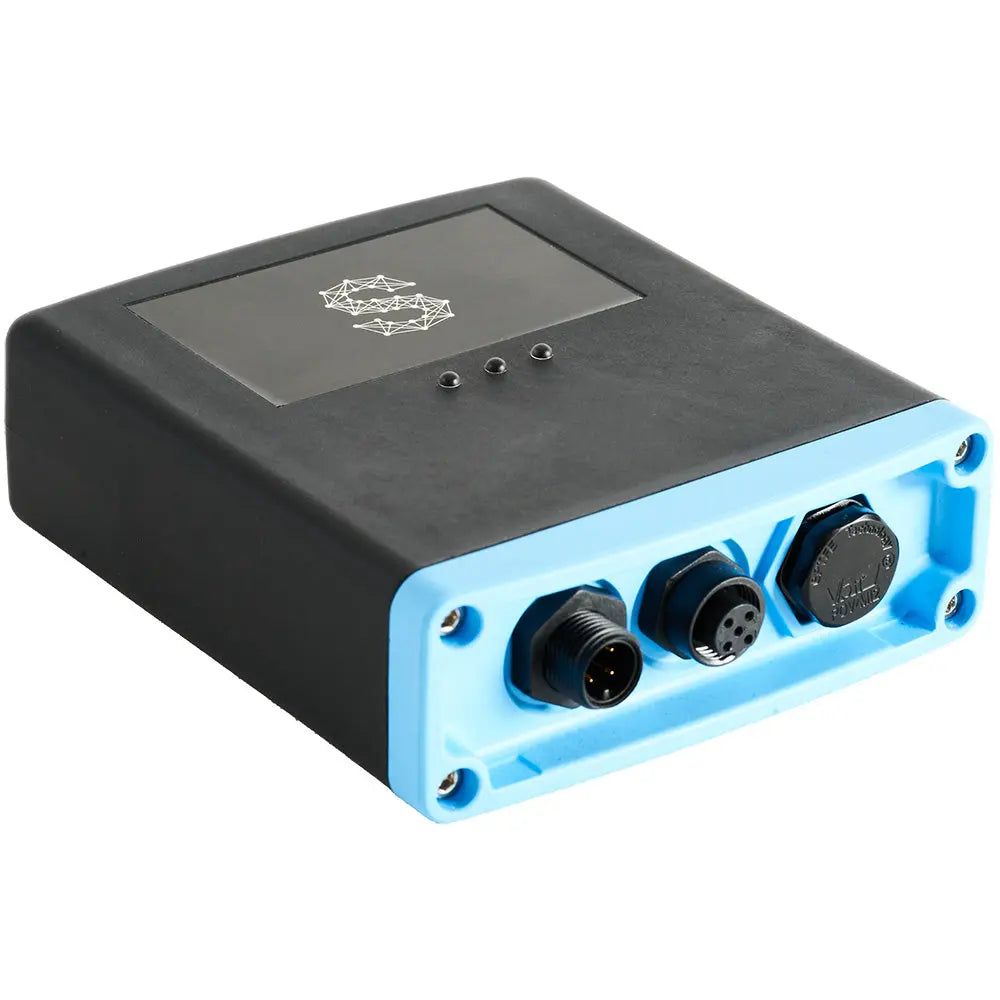

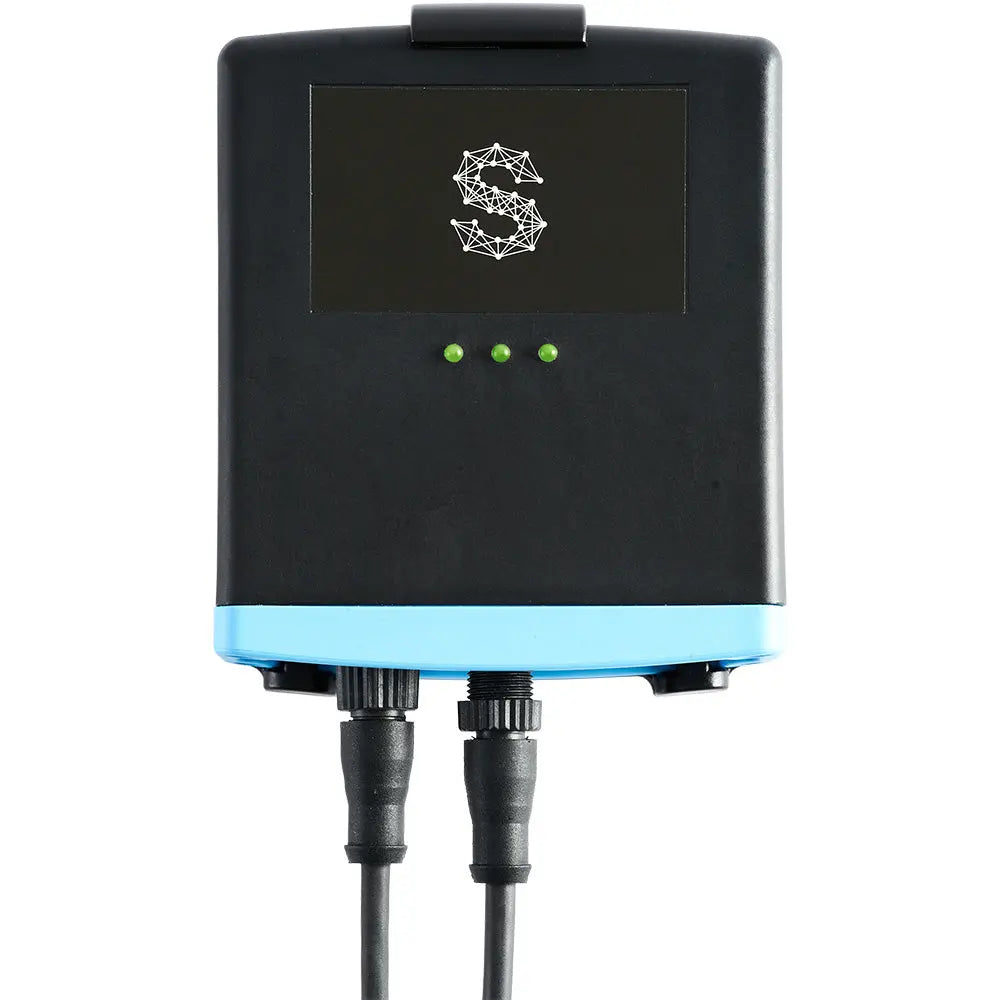

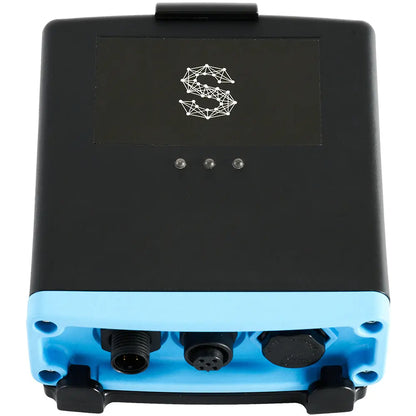

Sensar Marine Boat Monitor with Bilge Sentry Part Number BMBS700

Boat Monitor with Bilge Sentry

The Boat Monitor is the systems brain - where data from the boat is continually collected and sent to the app.

The system runs on an internal battery with 40 days of power and charges itself every time a boats batteries are being charged. In other words, it is completely maintenance-free and will monitor the boat for years without removing it to charge.

Features:

• The boat monitor can monitor up to 2 batteries and bilge pump activity
• Provides position of boat utilizing all available satellites
• Geofence which alerts boaters if the boat leaves a specific area (fully automatic function)
• Visualize the current trip and see the history of previous voyages
• The unit has an integrated accelerometer that displays G-force (measurement area: 0g to 8g)

Cables Made for Maritime Use

The cable set connects directly to up to two battery banks and the bilge pump.

Sensars cables were developed specifically to be able to function in harsh maritime conditions. They will always deliver data back to the boat monitor, regardless of the moisture in the motor room.

Keep Track of the Boat at All Times

Automatic GPS features give users peace of mind.

The boat monitor has sensors that track position and movement, which allows the app to show users the current position of the boat at all times.

GeoFence and Triplog features will automatically be updated so that boaters always know when the boat is underway, where the boat is, and where it has been.

Simple Installation

No screws, no metal components, no problem.

Sensar designed the installation process so boaters can easily do it themselves with the help of a pair of pliers.

With the device, users will receive enough industrial tape to mount the entire system in cases where they dont want to use screws in the boat.

Additionally, Sensar has chosen plastic components across the system to avoid eventual sources of rust in the boat.

In the Box:

• Boat monitor
• Battery/bilge pump cable (6 ft.)
• Bilge Sentry (cable 5 ft.)
• Mounting bracket
• Information card (ID and connection code)
• Quick connection
• T-splice cable
• Double-sided tape (4 pcs.)
• Cleaning wipes (2 pcs.)

Specifications:

• Size (H x W x D): 112.5 x 97 x 35.5 mm
• Weight: 276.5 grams
• Internal Battery: 40 days of power (charges automatically when boat batteries charge)
• Mobile Coverage: 4G Internal Antenna
• Boat Batteries: Connections for two battery banks, support 12V and 24V batteries, warning voltage: 12.2V, and alarm voltage: 11.8V
• Bilge Pump: Notifies every time the bilge pump is running
• Bilge Water Level: Measures between 0 and 6 inches, warning water level: 4 in., and alarm water level: 5.5 in.
• Bilge Temperature: Measures between -4F and 140C, warning temperature: 34F, and alarm temperature: 28F
• GPS: Internal antenna
• Position Tech: Multi-GNSS-receiver
• Mounting Bracket: Height: 83 mm, width: 90 mm, and depth: 28 mm
• Attachment for Bracket and Bilge Sentry: 3M Industrial Tape and 28 mm screws

The Sensar Marine Boat Monitor with Bilge Sentry is an advanced system designed to provide comprehensive monitoring and safety features for your boat. It functions as the central hub, continuously collecting data from your vessel and transmitting it to your mobile app for real-time updates. Powered by an internal battery capable of lasting up to 40 days, the system charges automatically when your boat's batteries are charged, making it maintenance-free and reliable for long-term use. Its seamless integration with two battery banks and bilge pump ensures you stay informed about critical vessel systems without hassle.

Designed with durability in mind, the cables and components are specifically engineered for harsh maritime environments. They resist moisture and corrosion, ensuring consistent data transmission regardless of conditions in the motor room or outdoor exposure. The system's sensors monitor boat position via multi-GNSS technology, providing precise location data through an internal GPS antenna. Automatic geofencing alerts notify you if your boat leaves designated areas, while trip tracking features log your voyages, giving you a complete history accessible via the app.

Installation is straightforward, with no need for screws or metal fasteners. The system includes industrial-grade mounting tape and plastic components that prevent rust and corrosion, allowing for easy DIY setup with just a pair of pliers. The package contains all necessary accessories, including cables, a mounting bracket, and cleaning wipes, ensuring a clean, secure setup. The Boat Monitor also features an integrated accelerometer that measures G-force, helping detect unusual movement or impacts. With support for both 12V and 24V batteries, water level sensors, and temperature monitoring, this device offers a comprehensive solution for boat safety and management, making it an essential addition for boat owners seeking peace of mind and enhanced vessel oversight.

Features:

• Monitors up to 2 batteries and bilge pump activity for comprehensive vessel management

• Provides precise boat location using multi-GNSS satellite technology

• Automatic geofence alerts notify when the boat leaves designated areas

• Trip logging feature visualizes current voyage and stores historical data

• Integrated accelerometer displays G-force from 0g to 8g for movement analysis

• Durable cables designed for harsh maritime conditions ensure reliable data transmission

• Supports both 12V and 24V battery systems with warning and alarm thresholds

• Water level sensors measure bilge water between 0 and 6 inches, with alerts at critical levels

• Temperature sensors monitor bilge temperature from -4°F to 140°F, with alarms for extreme conditions

• Simple DIY installation with mounting tape and plastic components prevents rust and corrosion

• Includes comprehensive accessories such as cables, mounting bracket, and cleaning wipes for easy setup
