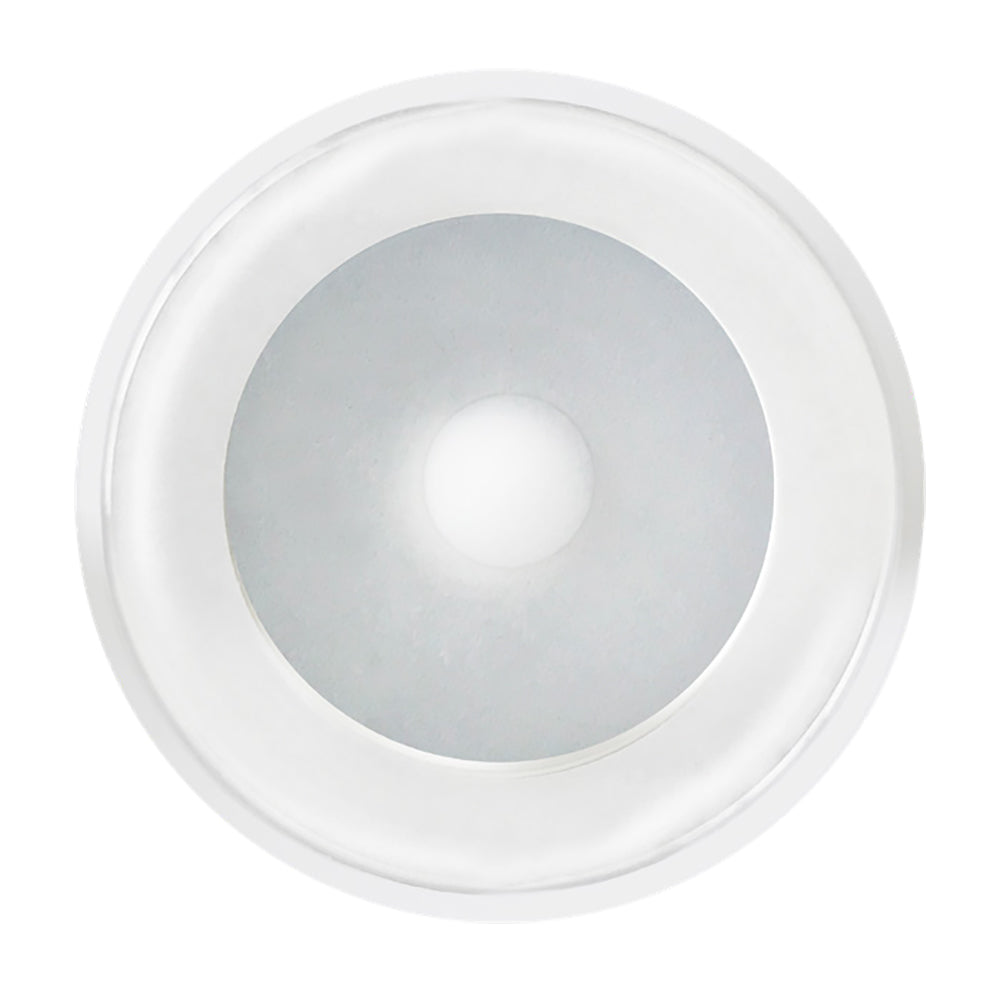

Shadow-Caster DLX Series Down Light with White Housing and Multi-Color Options

DLX Series Down Light - White Housing - White/Blue/Red

The Shadow-Caster Large Down Light (SCM-DLX) is perfect for lighting overhead areas of the interior and exterior of your boat or yacht. At 3 overall diameter, its wide-angle spread of light and all-glass reveal makes this the ideal light for T-Tops, cabins, towers, and more. The SCM-DLX series is available in 3 light output choices; single color white, 3 colors (white, blue, and red) as well as a full-color version. Choose from three beautiful color finishes white, black and polished chrome. Easily control the brightness and color from a standard switch.

Features:

• Soft start technology ramps the brightness up gently over 2 seconds
• Power toggle feature to set brightness and change color
• True white LED for best color performance
• 120-degree viewing angle
• High-efficiency switch mode power supply
• Waterproof low-profile aluminum housing
• White, black, or polished chrome finish
• All-Glass reveal provides a modern look

Specifications:

• 300-lumen output
• 120-degree beam angle
• 3-watt power draw
• 10-30 volts Input
• 250mA at 12 volts, 125mA at 24 volts
• 6200 Kelvin cool white color temperature
• 3 (76mm) OD, 0.175 (4mm) mounting height
• 2 mounting hole
• IP67 waterproof design
• Durable glass lens
• Color change version includes Shadow-NET interface for control

Includes:

• Down light
• Flush-mounting bracket and (3) #4 X 0.5 SS316PH screws
• Quick start guide
• Standard 2 year warranty

The Shadow-Caster DLX Series Down Light (Part Number: SCM-DLX-WBR-WH) offers high-performance overhead illumination tailored for marine environments. With a 3-inch diameter and a wide 120-degree beam angle, this light is ideal for lighting T-Tops, cabins, towers, and other interior or exterior areas of boats and yachts. Its all-glass reveal and waterproof low-profile aluminum housing ensure durability and modern aesthetics, with available finishes in white, black, or polished chrome to match your vessel's style. The light features a true white LED for optimal color rendering, providing a 300-lumen output with a cool white color temperature of 6200 Kelvin, delivering bright, crisp illumination. Designed for ease of use, it includes a power toggle to adjust brightness and switch between colors, including a full-color version that integrates with the Shadow-NET interface for advanced control. The soft start technology ramps the light's brightness gently over 2 seconds, preventing abrupt illumination changes and extending LED lifespan. Its high-efficiency switch mode power supply supports input voltages from 10 to 30 volts, making it suitable for a variety of marine electrical systems. The light's IP67 waterproof rating and durable glass lens ensure reliable performance in harsh marine conditions. Installation is straightforward with a flush-mounting bracket and included stainless steel screws, and the compact design minimizes space requirements while maintaining high output. Perfect for enhancing safety, visibility, or ambiance, the Shadow-Caster DLX Series Down Light combines advanced technology with sleek design, making it an excellent choice for discerning boat owners seeking reliable, versatile lighting solutions.

Features:

• Soft start technology ramps the brightness up gently over 2 seconds

• Power toggle feature to set brightness and change color

• True white LED for optimal color performance

• 120-degree beam angle provides wide coverage

• High-efficiency switch mode power supply supports 10-30V input

• Waterproof IP67 low-profile aluminum housing for durability

• Available finishes in white, black, or polished chrome

• All-glass reveal offers a modern, sleek look

• Includes flush-mounting bracket and stainless steel screws

• Versatile for interior and exterior marine lighting applications
