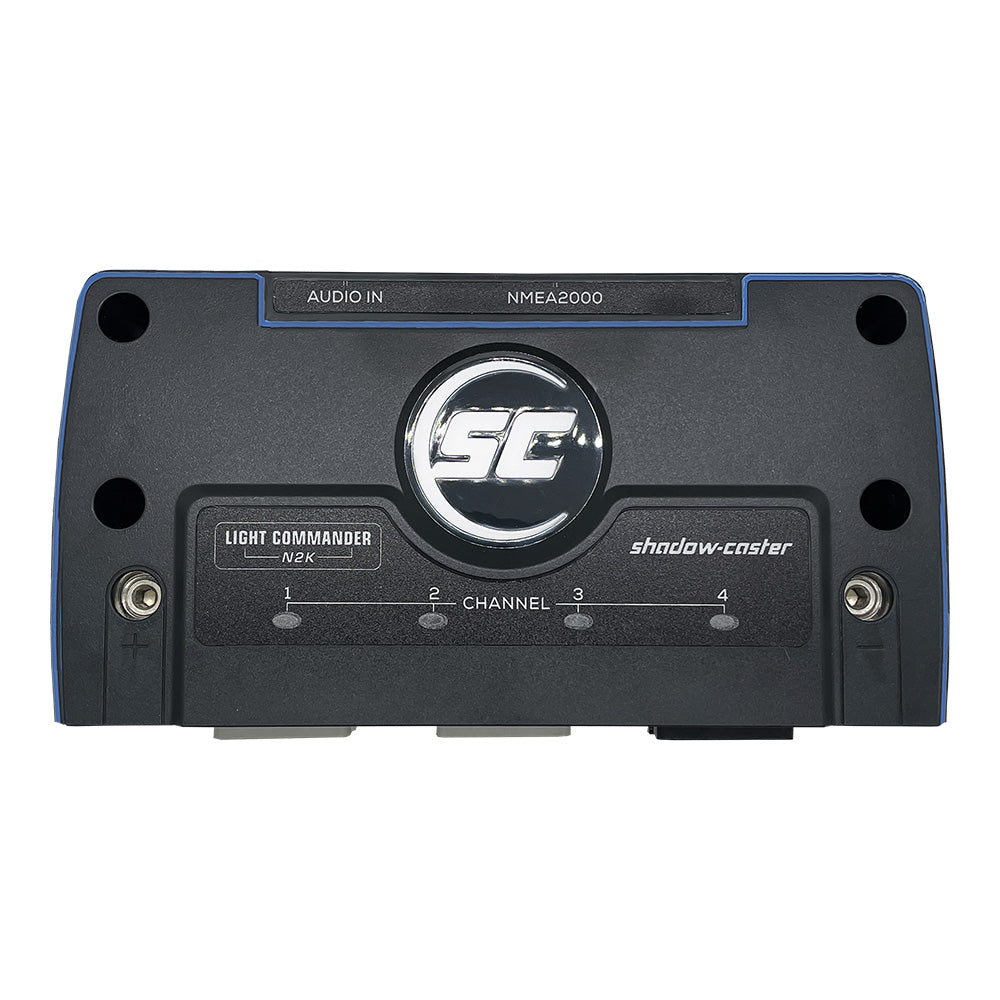

Shadow-Caster LED Lighting Light Commander NMEA 2000 6-Zone Controller

Light Commander NMEA 2000 6-Zone Lighting Controller (NMEA 2000 Only - No MFD Network or Wi-Fi/Bluetooth Connectivity

Discover the SHADOW-CASTER Light Commander NMEA 2000, a pioneering solution in LED lighting control for boats. This first-of-its-kind product is crafted in compliance with the latest NMEA 2000 lighting control standards, ensuring enhanced lighting control, seamless marine system integration, and improved interoperability.

Control up to 6 zones of lighting per module, including 4 zones of RGB or RGBW lights, with ease and precision. Explore, set, and store a variety of lighting scenesfrom color change, fade, rotation, and strobe to music sync effectsoffering versatility and customization to illuminate a boat like never before.

Encased in a durable IP67 housing with Deutsch-style IP67 connections, the Light Commander NMEA 2000 ensures reliability and performance in the marine environment. The backlit logo signifies the quality and innovation that SHADOW-CASTER is renowned for. Elevate the marine lighting experience with the Light Commander NMEA 2000where technology meets functionality and style.

**Please note that SCM-LC-N2K is a multi-zone lighting controller for NMEA 2000 only connectivity. The is NOT compatible with Garmin, Simrad, Lowrance, B G, Raymarine, and Furuno MFDs

Key Features:

• NMEA 2000 Backbone
• Global control for all lighting
• Up to 6 separate zones of lighting control expandable to 12 or 18 by connecting additional SCM-LC-N2K modules
• 6 Instant ON switch inputs for enabling lights without MFD control
• Supports RGB and RGBW lighting

Additional Features:

• IP67 Water resistant housing with waterproof connections
• Deutsch style IP67 rated connections, for clean OEM installations
• Digitally fused over current protection circuits, 15amps/channel (X4)
• Backlit logo and zone indicator LEDs to indicate functions and operation
• Built in 3.5mm female audio port and microphone for music sync input

INTERFACING TO THE LIGHT COMMANDER

NMEA 2000

With the release of industry-standardized NMEA 2000 lighting control protocols, plug-and-play lighting controller compatibility is here. Simply connect to the NMEA 2000 backbone with the SCM-LC-N2K.

SCM-ZC-Remote Control

Use the SHADOW-CASTER backlit Zone Controller keypad (SCM-ZC-REMOTE) with any Light Commander model to instantly control 4 zones of lighting through a backlit keypad.

Specifications:

• IP67-rated enclosure
• Power: Supports over 600 watts of RGB lighting and virtually limitless Shadow-NET connected modules
• 15 amps per RGB(W) zone, 60 amps max
• 10 to 30V input range
• Direct 3.5mm female audio input for music synchronization
• Music sync created by onboard DSP (Digital Signal Processing)
• Shadow-NET bus allows system expandability
• Digital power protection set at 15amps/channel
• Built in switch inputs for instant on lighting for each zone
• 24-bit color support and gamma correction for universal color support
• Enclosure: 8.9 (226mm ) x 4.75 (120mm) x 1.8 (46mm)

The Shadow-Caster Light Commander NMEA 2000 is an advanced LED lighting control system designed specifically for marine applications. Built to comply with the latest NMEA 2000 lighting control standards, this module offers seamless integration with your boat's existing NMEA 2000 backbone, providing reliable and intuitive multi-zone lighting management. Its robust IP67-rated housing ensures durability against harsh marine environments, while Deutsch-style connections facilitate clean, OEM-grade installations. With the capability to control up to six lighting zones—including four RGB or RGBW zones—this controller allows boat owners to create dynamic lighting scenes with ease. Features such as color change, fading, rotation, strobe effects, and music synchronization enable a high degree of customization, transforming your vessel's ambiance for any occasion.

Each zone can be activated via instant ON switch inputs, offering convenient control without reliance on multi-function displays (MFDs). The system supports up to 600 watts of RGB lighting per zone and can be expanded to 12 or 18 zones by connecting additional Shadow-Caster modules, making it ideal for larger or more complex lighting setups. Its built-in DSP technology enables music sync features through a 3.5mm audio port and microphone, allowing lighting effects to respond rhythmically to onboard music. Digital overcurrent protection at 15 amps per channel ensures safe operation, while zone indicator LEDs and a backlit logo provide clear visual feedback during operation.

Designed for versatility, the Light Commander NMEA 2000 is compatible with Shadow-NET bus systems, supporting system expandability and integration with optional remote control keypads. Its 10-30V power range and support for LED technology make it suitable for various marine power systems. Overall, this controller combines high performance, durability, and advanced features in a compact form factor, making it an essential component for sophisticated marine lighting setups that demand reliability and customization.

Features:

• NMEA 2000 Backbone: Seamless integration with marine NMEA 2000 systems

• Global control for all lighting: Manage multiple zones from a single system

• Up to 6 zones of lighting control, expandable to 12 or 18 with additional modules

• Supports RGB and RGBW lighting: Color-changing and white lighting options

• 6 Instant ON switch inputs: Enable lights without MFD control

• Waterproof IP67 housing: Durable in harsh marine environments

• Deutsch style waterproof connections: Clean OEM installations

• Digitally fused overcurrent protection: 15 amps per channel

• Built-in zone indicator LEDs and backlit logo: Clear operation feedback

• Music sync input: 3.5mm audio port and microphone for rhythm-responsive lighting
