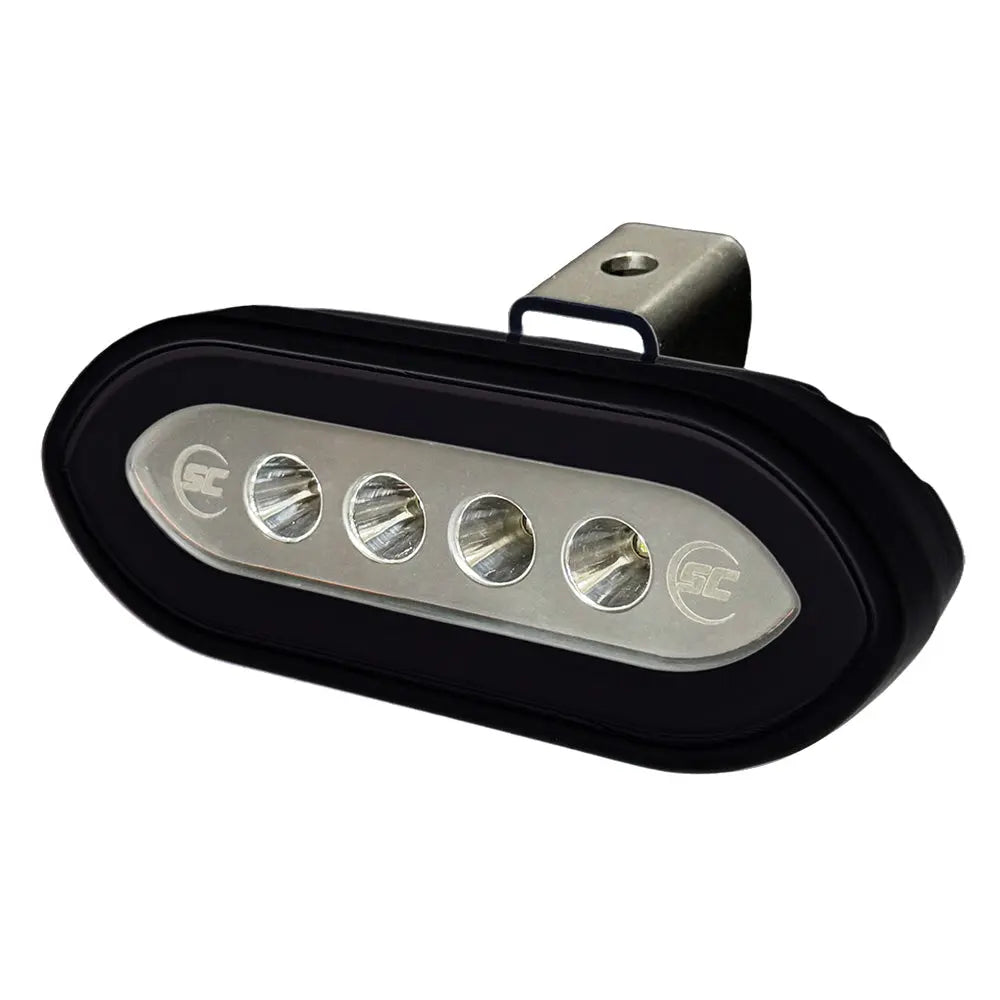

Shadow-Caster LED Lighting SCM-SLB4X-GW-BK Bracket Mount Spreader Light with White LED

Bracket Mount Spreader Light - Black Housing - White

The Shadow-Caster 4X Bracket Mount Spreader Light is perfect for illuminating decks and other large areas of your boat or yacht. The bracket mount version is great for retrofitting existing installations. The Shadow-Caster parabolic reflector design offers a 60-degree beam. It is available in a single color white. The brightness can be controlled with a standard switch or Shadow-Caster Light Commander controller and NMEA 2000 interface.

Features:

• Soft start technology ramps the brightness up gently over 2 seconds
• Power toggle feature to set brightness
• Cool white color temperature LED for best performance
• High-efficiency switch mode power supply
• Waterproof aluminum housing
• Unique reflector design to reduce glare

Specifications:

• 3000 lumens output
• 60-degree beam angle
• 20-watt power draw
• 10-30 volts input
• Current draw: 1.5 amps
• 6200 Kelvin cool white color temperature
• 4.25 (108mm) overall length X 1.6 (41mm) width X 2.8 (71mm) height
• IP67 waterproof design
• Durable glass lens

Includes:

• Spreader light
• 3 (1m) submersible grade cable
• SS 316 bracket
• Standard 3-year warranty

The Shadow-Caster SCM-SLB4X-GW-BK Bracket Mount Spreader Light is an ideal solution for illuminating large areas on boats and yachts, such as decks or docking zones. Its black aluminum waterproof housing ensures durability and resistance to harsh marine environments, making it suitable for extended outdoor use. The light features a high-efficiency switch mode power supply and a durable glass lens that enhances longevity and performance. Designed with a parabolic reflector, it provides a focused 60-degree beam angle delivering 3,000 lumens of bright cool white light at 6200 Kelvin, ideal for enhancing visibility during nighttime operations.

This spreader light includes a sleek bracket mounting system, compatible with existing setups or new installations. The unit incorporates soft start technology, which ramps the brightness gradually over two seconds, preventing sudden glare or power surges. The integrated power toggle allows easy brightness control, and it can be operated via a standard switch or through advanced control systems like the Shadow-Caster Light Commander or NMEA 2000 interface. The light’s low power draw of 20 watts and current consumption of 1.5 amps make it energy-efficient for extended use.

The Shadow-Caster spreader light is designed for versatility and ease of installation. It comes complete with a 3-meter submersible-grade cable, stainless steel 316 bracket for secure mounting, and a standard three-year warranty for peace of mind. Its IP67 waterproof rating ensures reliable performance even in challenging marine conditions. Whether retrofitted or newly installed, this spreader light provides powerful illumination with minimal maintenance, enhancing safety and visibility on your vessel.

Features:

• Soft start technology ramps the brightness up gradually over 2 seconds

• Power toggle feature for easy brightness control

• Cool white LED with 6200 Kelvin color temperature for optimal illumination

• High-efficiency switch mode power supply for energy savings

• Waterproof aluminum housing with IP67 rating for marine durability

• Unique reflector design to minimize glare and improve light focus
