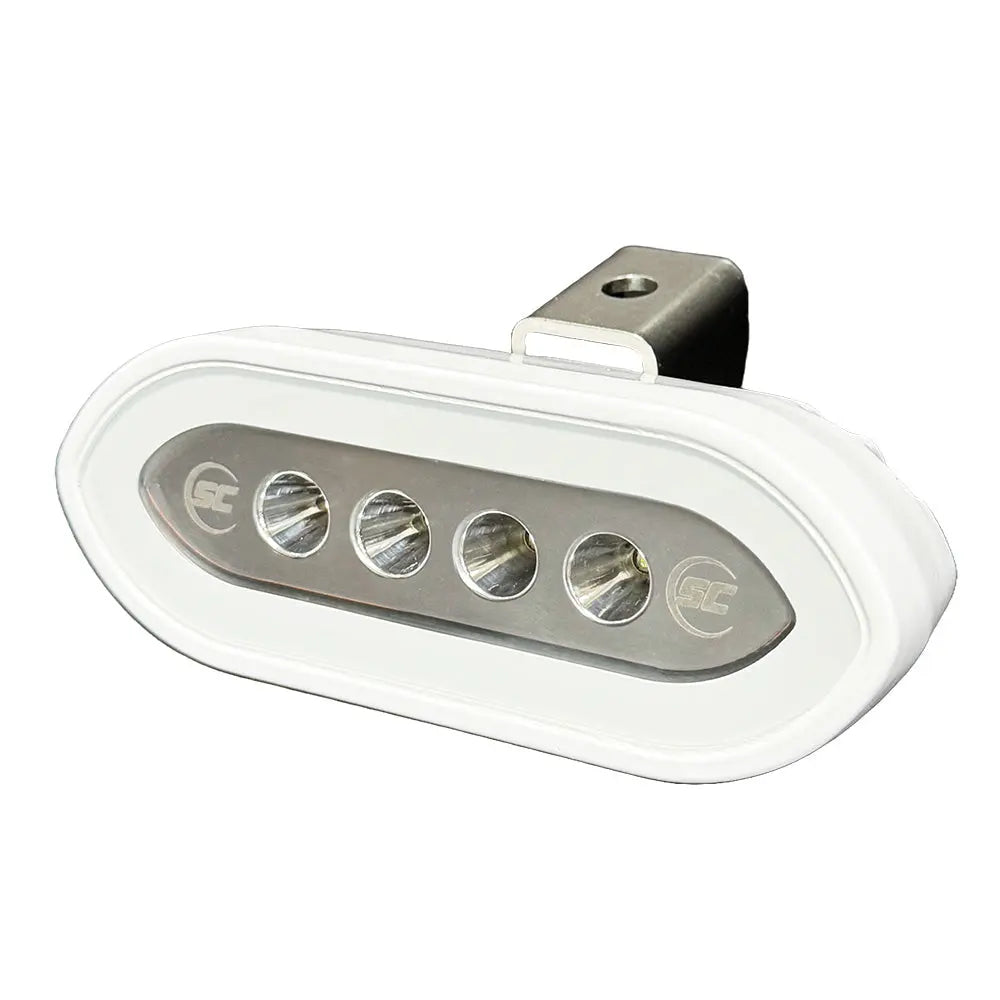

Shadow-Caster LED Lighting SCM-SLB4X-GW-WH Bracket Mount Spreader Light - White Housing

Bracket Mount Spreader Light - White Housing - White

The Shadow-Caster 4X Bracket Mount Spreader Light is perfect for illuminating decks and other large areas of your boat or yacht. The bracket mount version is great for retrofitting existing installations. The Shadow-Caster parabolic reflector design offers a 60-degree beam. It is available in a single color white. The brightness can be controlled with a standard switch or Shadow-Caster Light Commander controller and NMEA 2000 interface.

Features:

• Soft start technology ramps the brightness up gently over 2 seconds
• Power toggle feature to set brightness
• Cool white color temperature LED for best performance
• High-efficiency switch mode power supply
• Waterproof aluminum housing
• Unique reflector design to reduce glare

Specifications:

• 3000 lumens output
• 60-degree beam angle
• 20-watt power draw
• 10-30 volts input
• Current draw: 1.5 amps
• 6200 Kelvin cool white color temperature
• 4.25 (108mm) overall length X 1.6 (41mm) width X 2.8 (71mm) height
• IP67 waterproof design
• Durable glass lens

Includes:

• Spreader light
• 3 (1m) submersible grade cable
• SS 316 bracket
• Standard 3-year warranty

The Shadow-Caster LED Lighting SCM-SLB4X-GW-WH Bracket Mount Spreader Light is an essential addition for boat and yacht owners seeking optimal illumination for large areas such as decks and open spaces. Designed with a durable waterproof aluminum housing, this light is built to withstand harsh marine environments while providing reliable performance. Its parabolic reflector design delivers a focused 60-degree beam angle, ensuring effective and uniform light distribution across wide areas. The cool white LED, with a color temperature of 6200 Kelvin, offers bright, crisp illumination that enhances visibility during nighttime activities on the water. Compatibility with standard switches, Shadow-Caster Light Commander controllers, and NMEA 2000 interfaces allows seamless brightness control and integration with existing onboard systems, making it highly versatile for retrofit installations. The light features a soft start technology that ramps up brightness smoothly over two seconds, preventing sudden glare and reducing stress on electrical components. Power is supplied via a high-efficiency switch mode power supply that draws only 20 watts, operating within a voltage range of 10 to 30 volts and drawing approximately 1.5 amps at full brightness. The lightweight design, measuring approximately 4.25 inches in length, 1.6 inches in width, and 2.8 inches in height, ensures easy installation without adding significant weight to your vessel. Included with the light are a stainless steel SS 316 bracket, a 3-meter submersible grade cable for secure connections, and a standard 3-year warranty for peace of mind. Whether upgrading existing lighting or installing new fixtures, the Shadow-Caster Spreader Light provides high lumen output of 3,000 lumens, combining durability, efficiency, and superior illumination for your marine application.
