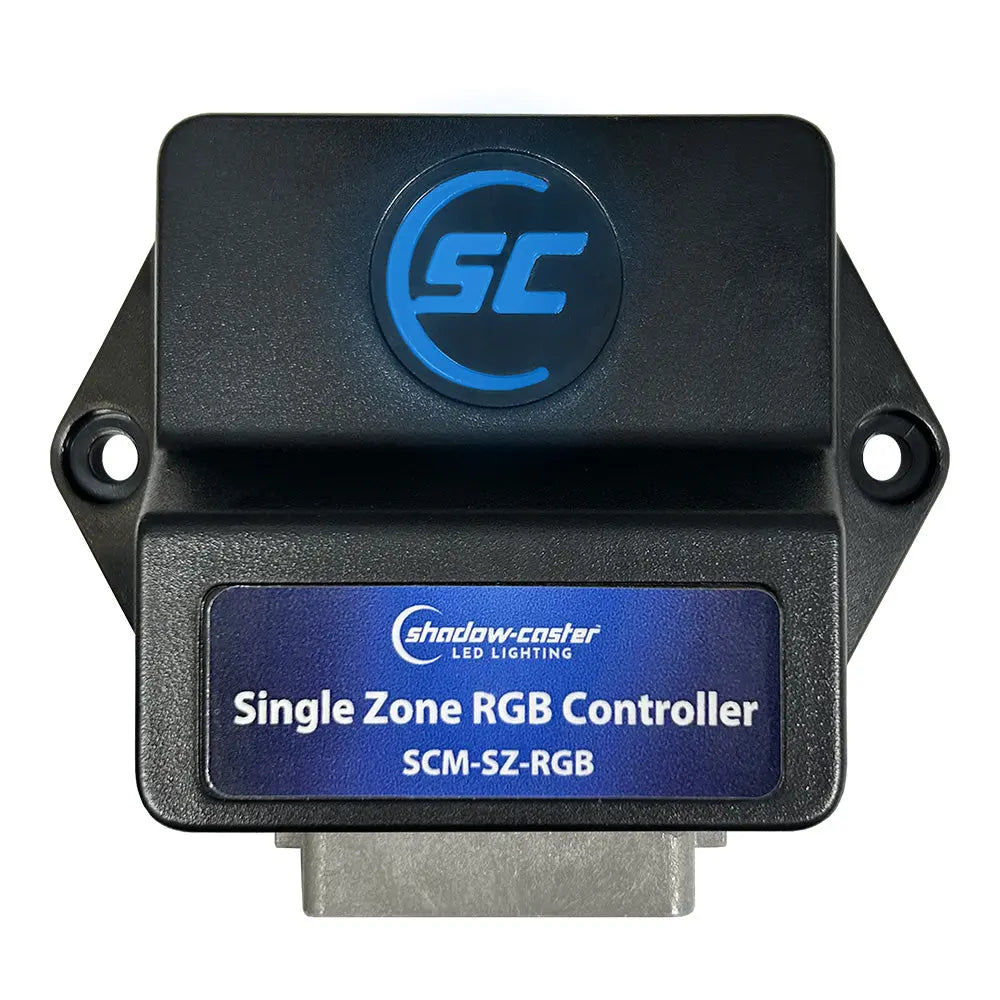

Shadow-Caster LED Lighting Single Zone RGB(W) Controller SCM-SZ-RGB

Single Zone RGB(W) Controller

The Shadow-Caster Single Zone Lighting Control is a low-cost, marine-grade RGBW LED controller that can be operated from a standard push-button switch to set color and brightness.

The Single Zone Controller also has a built-in Shadow-NET interface that allows the controller to synchronize color and brightness control with other Shadow-NET devices, for example, to make Shadow-Caster underwater lights match the color of interior RGBW lighting.

Features:

• Shadow-NET enabled for expansion and use with other Shadow-Caster products
• The Backlit SC logo indicates brightness and color, or it flashes red if a fault is detected
• Supports color rotation, single-color fade, and multi-color fade
• Auto-detect for the white channel
• Integrated overcurrent protection
• Operate from an off/on/momentary switch or a single momentary push button
• Use the SCM-RGB-EXP expansion module to provide expanded RGBW capacity for an extra zone, wherever it is needed on a boat

Specifications:

• Current Draw: 10A max
• Hosing Connector IP Rating: IP67
• Voltage: 12V/24V operation compatible
• Dimensions: 3.5 x 2.9 x 1.2 (88 x 72.4 x 30.6mm)

The Shadow-Caster LED Lighting Single Zone RGB(W) Controller SCM-SZ-RGB offers a versatile and marine-grade solution for managing RGBW LED lighting systems. Designed for easy operation, this controller allows users to set color and brightness levels from a standard push-button switch, making it suitable for a variety of marine applications. Its compact design and durable construction ensure reliable performance in harsh environments, with an IP67-rated housing that provides excellent protection against water and dust ingress.

Equipped with a built-in Shadow-NET interface, the SCM-SZ-RGB enables synchronization with other Shadow-Caster devices, allowing for seamless color and brightness matching across multiple lighting zones. This feature is particularly useful for marine environments where coordinated lighting effects enhance aesthetics and safety. The controller supports dynamic lighting effects such as color rotation, single-color fade, and multi-color fade, giving users a broad range of customization options. An auto-detect feature simplifies setup by automatically recognizing the white channel, streamlining installation and operation.

Safety and reliability are prioritized with integrated overcurrent protection, ensuring the controller's longevity and preventing damage from electrical faults. The device can be operated via an off/on/momentary switch or a single push button, providing flexible control options. For expanded capacity, users can incorporate the SCM-RGB-EXP expansion module to add additional RGBW zones, making this controller ideal for complex lighting setups on boats and other marine vessels. With a maximum current draw of 10A and compatibility with 12V or 24V power systems, the Shadow-Caster Single Zone RGB(W) Controller SCM-SZ-RGB is a robust and cost-effective choice for marine LED lighting control.

For detailed installation and operation instructions, refer to the owner’s manual available at the provided link.

Features:

• Shadow-NET enabled for expansion and integration with other Shadow-Caster products

• Backlit SC logo indicates brightness and color, or flashes red if a fault is detected

• Supports color rotation, single-color fade, and multi-color fade effects

• Auto-detect feature for the white channel simplifies setup

• Integrated overcurrent protection enhances safety and durability

• Operates from an off/on/momentary switch or a single push button for flexible control

• Expandable with SCM-RGB-EXP module for additional RGBW zones
