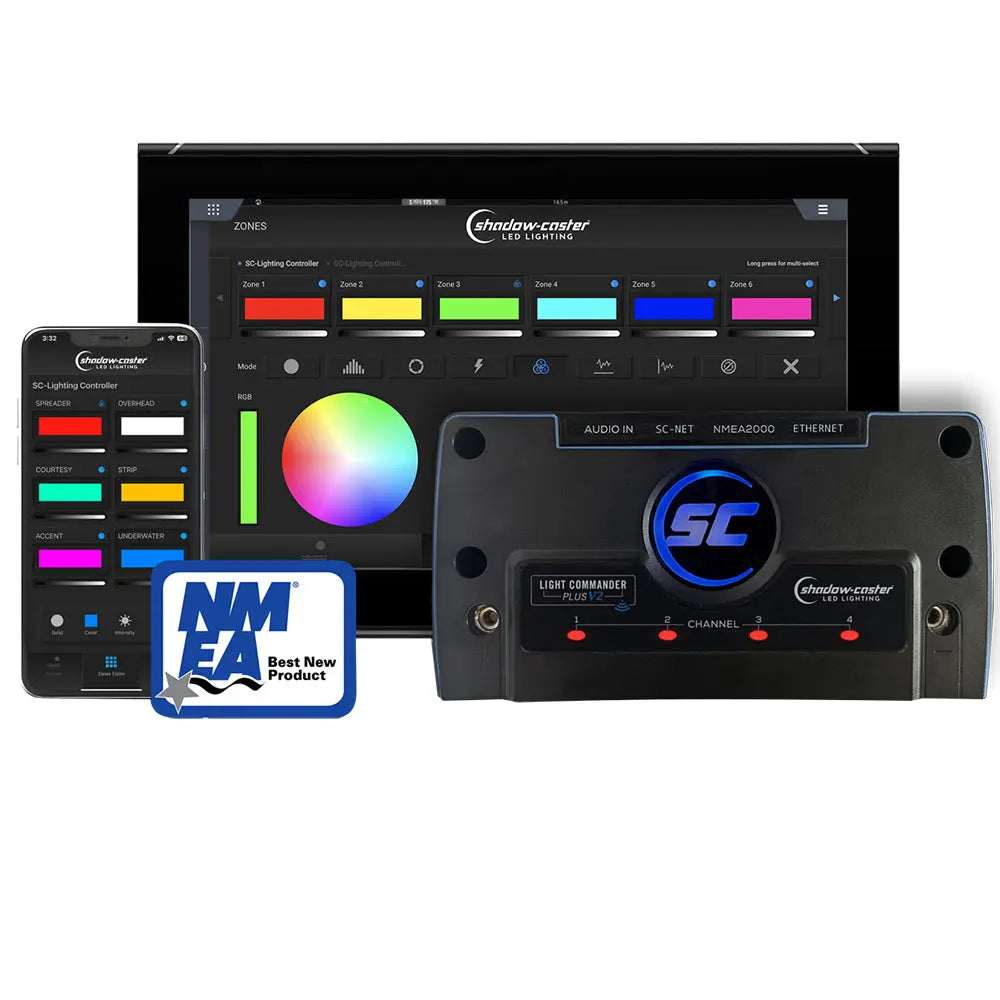

Shadow-Caster Light Commander Version 2 - 6-Zone Marine Lighting Controller with Bluetooth, Wi-Fi, NMEA 2000 & Ethernet

Light Commander Version 2 - 6-Zone Lighting Controller with Bluetooth/Wi-Fi, NMEA 2000 HTML Ethernet Connectivity

Discover the SHADOW-CASTER Light Commander NMEA 2000, a pioneering solution in LED lighting control for boats. This first-of-its-kind product is crafted in compliance with the latest NMEA 2000 lighting control standards, ensuring enhanced lighting control, seamless marine system integration, and improved interoperability.

Control up to 6 zones of lighting per module, including 4 zones of RGB or RGBW lights, with ease and precision. Explore, set, and store a variety of lighting scenes from color change, fade, rotation, and strobe, through to music sync effects, offering versatility and customization to illuminate your boat like never before.

Encased in durable IP67 housing with Deutsch-style IP67 connections, the Light Commander NMEA 2000 ensures reliability and performance in the marine environment. The backlit logo signifies the quality and innovation that SHADOW-CASTER is renowned for.

Elevate your marine lighting experience with the Light Commander NMEA 2000 where technology meets functionality and style.

Features:

• NMEA 2000 Backbone or MFD Network Port Connectivity
• Global control for all lighting
• Up to 6 separate zones of lighting control expandable to 12 or 18 by connecting additional SCM-LC-N2K modules
• 6 Instant ON switch inputs for enabling lights withoutMFD control
• Supports RGB and RGBW lighting
• Optional wireless connectivity for control from a mobile device (SCM-LC-PLUS-V2)
• IP67 Water-resistant housing with waterproof connections
• Deutsch style IP67 rated connections, for clean OEMinstallations
• All in one design, no need for a separate MFD communicationbridge
• Digitally fused over current protection circuits, 15amps/channel (X4)
• Backlit logo and zone indicator LEDs to indicate functions and operation
• Built-in 3.5mm female audio port and microphone for music sync input
• Multi-zone Lighting Controller for NMEA 2000 Ethernet connectivity with integrated HTML interface

Specifications:

• IP67 rated enclosure
• Power: Supports over 600 watts of RGB lighting and virtuallylimitless Shadow-NET connected modules
• 15 amps per RGB(W) zone, 60 amps max
• 10 to 30V input range
• Direct 3.5mm female audio input formusic synchronization
• Music sync created by onboard DSP (Digital Signal Processing)
• Digital power protection set at 15amps/channel
• Built-in switch inputs for instant lighting for each zone
• 24-bit color support and gamma correction for universalcolor support
• Enclosure: 8.9 (226mm ) x 4.75 (120mm) x 1.8 (46mm)

The Shadow-Caster Light Commander Version 2 is a versatile and advanced lighting control system designed specifically for marine applications. Crafted by Shadow-Caster LED Lighting, this product offers seamless integration with NMEA 2000 networks, enabling comprehensive control over up to six lighting zones, including four zones of RGB or RGBW lights. The intuitive HTML interface allows users to easily explore, set, and save various lighting scenes such as color changes, fades, rotations, strobes, and music synchronization, providing personalized illumination to enhance your boat's ambiance. Encased in a durable IP67-rated housing with Deutsch-style waterproof connections, the Light Commander V2 is built to withstand harsh marine environments while maintaining reliable performance. Its all-in-one design eliminates the need for separate MFD communication bridges, simplifying installation and operation. With support for wireless connectivity via Bluetooth and Wi-Fi, users can control lighting remotely from a mobile device, making it adaptable to various user preferences and setups. The system's digital fused over-current protection circuits ensure safety and durability, supporting over 600 watts of RGB lighting and virtually unlimited Shadow-NET modules. Additional features include built-in switch inputs for instant lighting activation, 24-bit color support with gamma correction for accurate color rendering, and a 3.5mm audio port for music sync capabilities, driven by onboard digital signal processing. The compact dimensions and sleek design make this controller ideal for OEM integration and custom installations, elevating your marine lighting experience with advanced technology and robust construction.

Features:

• NMEA 2000 backbone or MFD network port connectivity for seamless integration

• Global control for all connected lighting zones

• Supports up to 6 separate lighting zones, expandable to 12 or 18 with additional modules

• Six instant ON switch inputs for quick lighting activation without MFD control

• Supports RGB and RGBW lighting for versatile color options

• Optional wireless control via Bluetooth and Wi-Fi for remote operation (SCM-LC-PLUS-V2)

• IP67 water-resistant housing with waterproof Deutsch-style connections

• All-in-one design eliminating the need for separate MFD communication bridges

• Digitally fused over-current protection circuits supporting up to 15 amps per channel

• Backlit logo and zone indicator LEDs for easy operation and status monitoring

• Built-in 3.5mm audio port and microphone for music synchronization

• Integrated HTML interface for multi-zone lighting control and configuration
