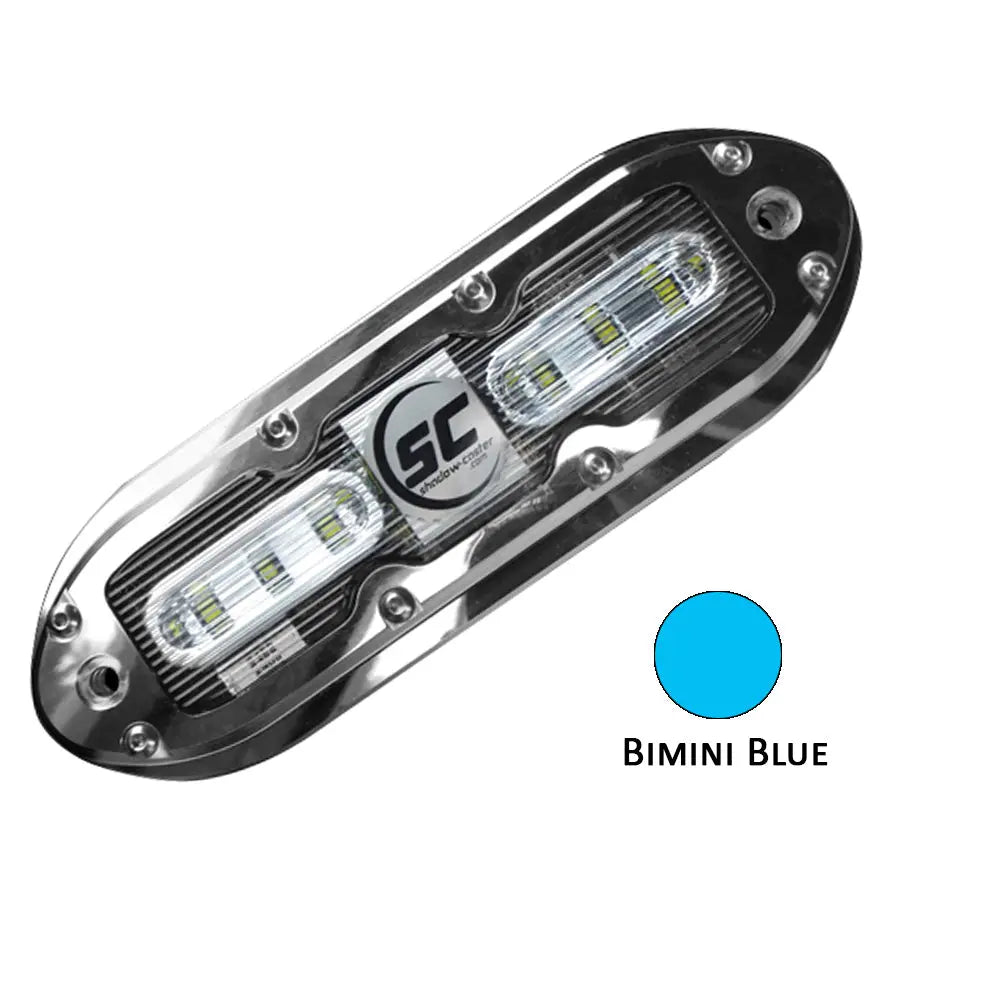

Shadow-Caster SCM-6 LED Underwater Light with 20' Cable - Bimini Blue, 316 Stainless Steel Housing

SCM-6 LED Underwater Light w/20' Cable - 316 SS Housing - Bimini Blue

With six LEDs, our mid-sized underwater light is the perfect addition to every vessel. Available in any of our five colors, the SCM-6 works with our Wireless Controller and Power Distribution Box for ease of use and installation.

High Intensity
Shadow-Caster underwater LED lights are designed to deliver the most intense optical output. Our unique design allows us to produce maximum light output and maximum LED life (over 40,000 hours).
Robust Design
With Shadow-Caster underwater LED lights, there's no additional external components to install. Just connect the cable (submersible to 20 feet). All the necessary electronics are integrated into the housing and resistant to vibration and the elements.
Surface Mounted
Our lighting solutions feature a low profile design that requires noalteration to the main hull
Wide Input Voltage Range
Shadow-Caster's underwated LED lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts.
Surge and Reverse Polarity Protection
Our lighting systems have an innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected.
Thermal Protection
Our unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid damage.

Specifications:

• Size: 7.2" Length x 2.375" Width x 0.5" Height (183 x 60 x 13mm)

• Operating Voltage: 10 - 30 Volts DC with consistent brightness

• Current Draw: 2.1 Amps @ 12 Volts

• Internal high efficiency digital switching power supply

• 24 Watts of high efficiency LED light

• 40,000-Hour Lamp Life

• 120 light spread angle

• 316 Stainless Steel Housing with Polycarbonate Lens

• 20' (6M) Standard Cable Length

• 1-Year Warranty

• Made in the USA

WARNING: This product can expose you to chemicals including Urethane which is known to the State of California to cause cancer or other reproductive harm, and LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Shadow-Caster SCM-6 LED Underwater Light is a high-performance lighting solution designed for marine vessels. Featuring six powerful LEDs, this compact light provides intense illumination with a wide 120-degree light spread, making it ideal for enhancing underwater aesthetics and safety. Its durable 316 stainless steel housing ensures corrosion resistance and longevity, even in harsh marine environments. The light operates efficiently over a broad voltage range of 10 to 30 volts DC, making it compatible with various power systems on boats of different sizes and configurations. It draws only 2.1 amps at 12 volts, delivering 24 watts of high-efficiency LED illumination that lasts over 40,000 hours, reducing maintenance needs and ensuring consistent performance.

Designed for easy installation, the SCM-6 features a surface-mounted, low-profile profile that requires no hull modifications. The integrated electronics are protected against vibration, water, and thermal stress, with built-in surge and reverse polarity protection to safeguard your system. The included 20-foot cable simplifies wiring, allowing flexibility during setup. The light's thermal management system adjusts energy output based on internal temperature, preventing damage and extending lifespan. Available in multiple colors, the Bimini Blue option complements various vessel aesthetics. Backed by a one-year warranty and proudly made in the USA, the Shadow-Caster SCM-6 delivers reliable, vibrant underwater illumination for recreational and commercial boats alike. Please note, this product contains chemicals known to the State of California to cause reproductive harm, and proper handling and disposal are advised.

Features:

• High-intensity LED output for maximum brightness

• Durable 316 stainless steel housing for corrosion resistance

• Wide 120-degree light spread angle

• Operates on 10 to 30 volts DC, compatible with 12V and 24V systems

• Integrated electronics with surge and reverse polarity protection

• Thermal management system prevents overheating

• Surface-mounted, low-profile design for easy installation

• Includes 20-foot cable for flexible wiring

• Long-lasting LED lifespan of over 40,000 hours

• Made in the USA with a one-year warranty
