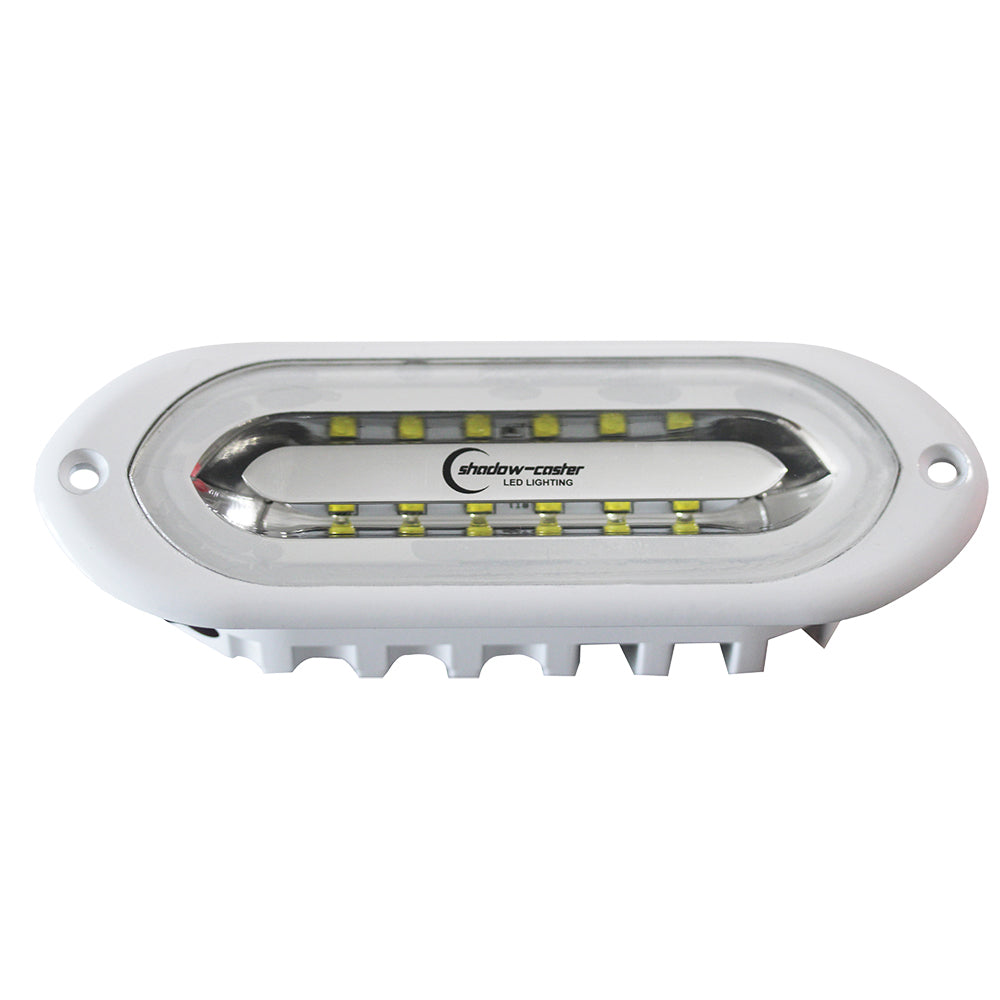

Shadow-Caster SCM-SLF-WBR-WH Flush Mount Spreader Light – White Housing with White/Blue/Red Color Options

SCM-SL Series Flush Mount Spreader Light - White Housing - White/Blue/Red

The Shadow-Caster Spreader Light is perfect for illuminating decks and other large areas of your boat or yacht. The flush mount version is great for mounting in T-Tops or use the bracket mount version to retrofit existing installations. The Shadow-Caster Spreader Light has a unique reflector design that spreads the light beams out to reduce glare. The Spreader Light comes in a black or white finish. It is available in 3 color output options: single color white, 2 colors (white and blue) as well as a full-color version. The brightness and color can be controlled with a standard switch.

Features:

• Soft start technology ramps the brightness up gently over 2 seconds.
• Power toggle feature to set brightness and change color
• True white LED for best color performance
• High-efficiency switch mode power supply
• Waterproof low-profile aluminum housing
• White or black finish
• Unique reflector design to reduce glare

Specifications:

• 1500 lumen output
• 60-degree beam angle
• 16-watt power draw
• 10-30 volts Input
• 1.4A at 12 volts, 0.7A at 24 volts
• 6200 Kelvin cool white color temperature
• 5 (127mm) overall width x 1.5(38mm) height x 1.3 (33mm) mounting depth.
• IP67 waterproof design
• Durable glass lens
• The full-color version includes Shadow-NET interface for controlling color

Includes:

• Spreader light
• Mounting screws and (2 screws) #4 X 0.5 SS3160H screws with flush mount version
• Quick start guide
• Standard 2 year warranty

The Shadow-Caster SCM-SLF-WBR-WH Series flush mount spreader light is designed to enhance visibility on boats and yachts, providing powerful illumination for decks and large outdoor areas. Its sleek white housing seamlessly integrates with various vessel styles, offering a clean, professional look. This versatile light features a unique reflector design that distributes light evenly to minimize glare, ensuring safety without compromising aesthetics. The full-color version includes the Shadow-NET interface, allowing you to easily control and switch between colors using a standard switch, making it ideal for customizing your lighting setup for different occasions or moods.

Equipped with advanced soft start technology, the Shadow-Caster spreader light ramps up brightness gradually over two seconds, preventing sudden glare and extending the lifespan of the LEDs. The high-efficiency switch mode power supply ensures optimal performance while consuming only 16 watts of power. With a lumen output of 1500 and a beam angle of 60 degrees, this light provides ample illumination to cover large areas effectively. Its waterproof IP67-rated aluminum housing with a durable glass lens guarantees reliable operation in harsh marine environments, including exposure to water and salt spray.

The light supports input voltages from 10 to 30 volts, making it compatible with most marine power systems. Its compact form factor, measuring approximately 5.25 inches wide, 1.5 inches high, and 1.3 inches deep, allows easy installation in T-tops or retrofit applications using the included mounting hardware. The fixture's brightness and color can be conveniently controlled via a standard switch, providing flexible lighting options. The package includes the spreader light, mounting screws, a quick start guide, and a two-year warranty for added peace of mind. Whether you choose the single-color white, dual-color white and blue, or full-color version, the Shadow-Caster SCM-SL Series delivers reliable, high-quality illumination for your marine environment.

Features:

• Soft start technology ramps brightness gradually over 2 seconds

• Power toggle feature for setting brightness and changing color

• True white LED for optimal color performance

• High-efficiency switch mode power supply

• Waterproof low-profile aluminum housing with IP67 rating

• Available in white or black finish

• Unique reflector design reduces glare

• Supports multiple color options including full-color with Shadow-NET interface
