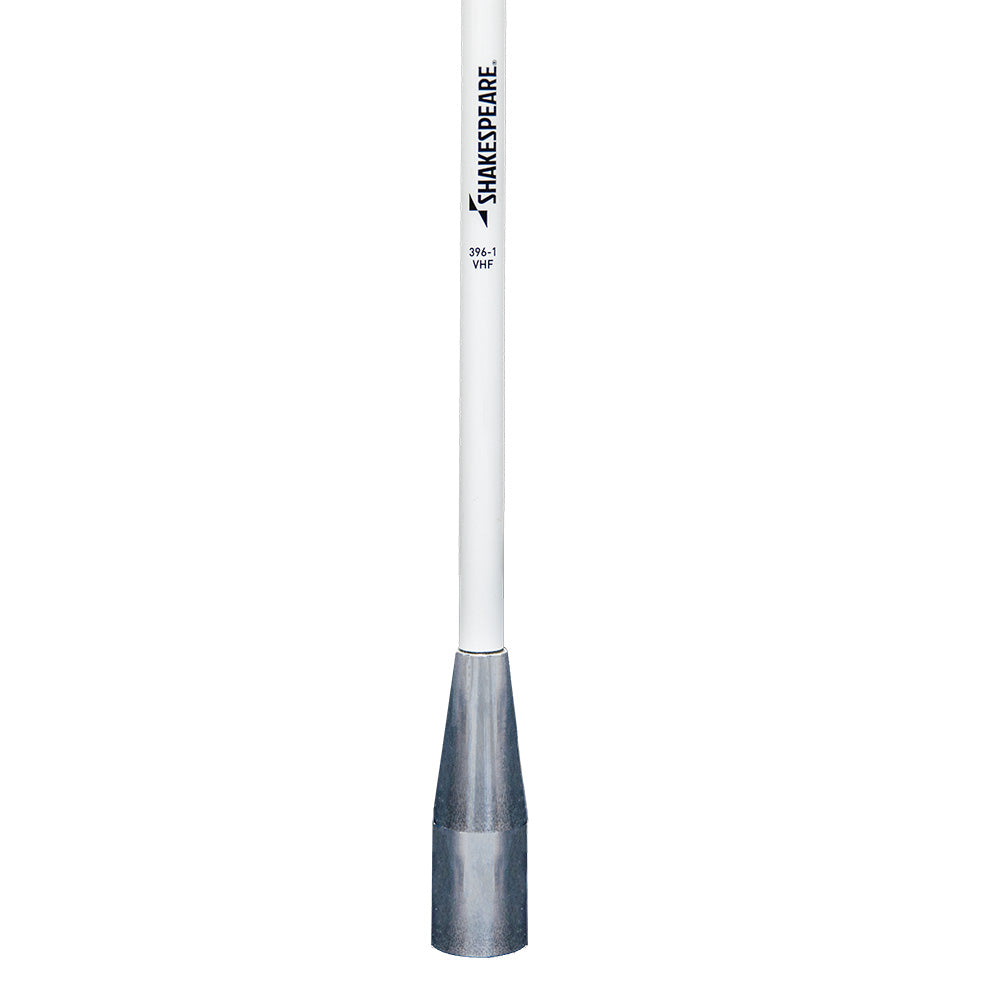

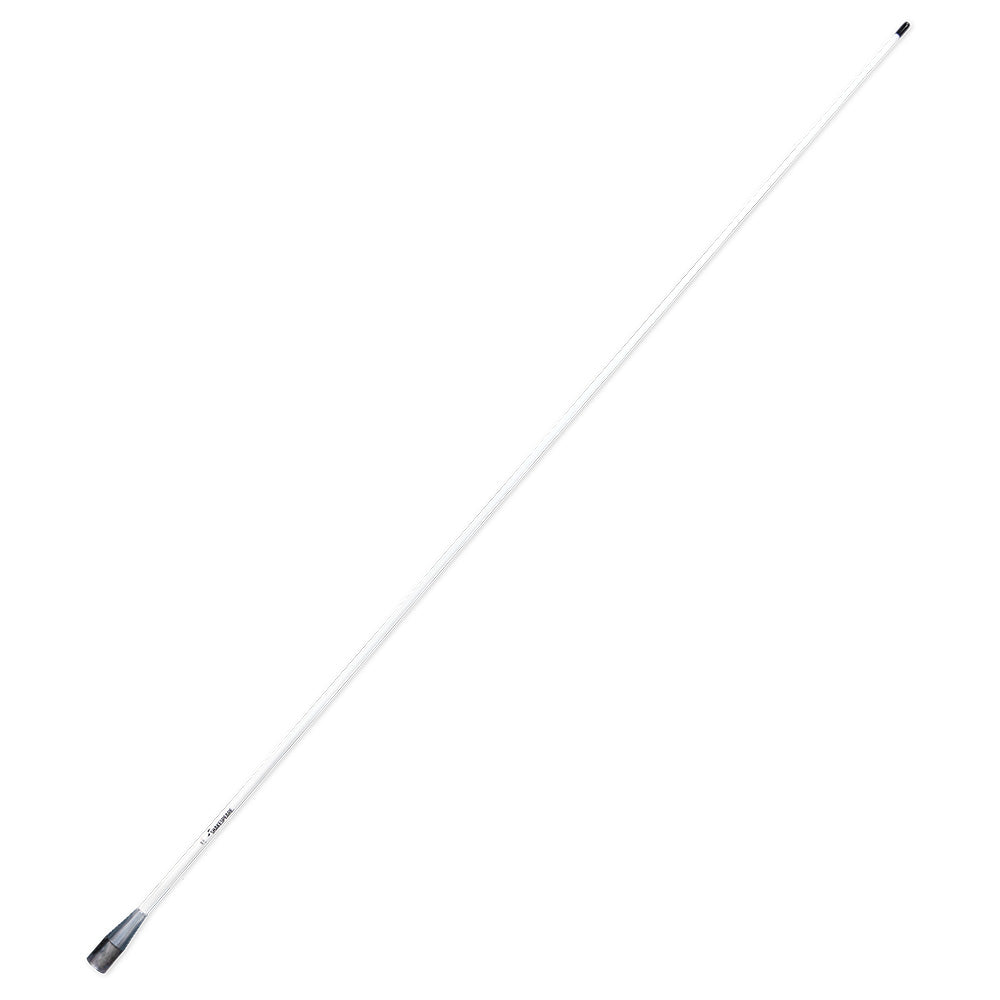

Shakespeare 396-1 5' VHF Marine Antenna with 15' RG-58 Cable and Chrome-Plated Ferrule

Style 396-1 VHF 3dB

Center-fed 1/2-wave coaxial sleeve

Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.

• Brass and copper elements
• Chrome-plated brass ferrule with standard 1-14 thread
• Includes 15' RG-58 cable and a PL-259 connector
• Suggested mount: Style 4187 Ratchet Mount
• One section

Technical Specifications:

The Shakespeare 396-1 VHF Marine Antenna is a reliable 5-foot, center-fed 1/2-wave coaxial sleeve antenna designed to deliver consistent performance in demanding maritime environments. Built with brass and copper elements, this antenna offers durability and excellent signal reception, making it a popular choice among Coast Guard vessels and commercial maritime operations. Its 3dB gain ensures enhanced communication clarity, especially in rough seas where signal fading can be problematic. The chrome-plated brass ferrule features a standard 1-14 thread for secure mounting, and the antenna includes a 15-foot RG-58 coaxial cable with a PL-259 connector for straightforward installation and connection to your radio equipment. Its omni-directional radiation pattern provides broad coverage, making it ideal for a variety of vessel sizes and configurations. The antenna operates efficiently within the VHF marine band with a bandwidth of approximately 5 MHz within a 2:1 SWR ratio, and maintains an impedance of 50 ohms for optimal signal transfer. With a maximum input power of 50 watts, it suits most marine communication needs. The 396-1 is designed for vertical polarization, ensuring reliable transmission and reception across the deck and mast areas. Its compact height of around 5 feet makes it suitable for installation on various vessel types, especially when paired with the recommended Style 4187 ratchet mount. Overall, the Shakespeare 396-1 VHF Marine Antenna offers exceptional durability, easy installation, and reliable performance for marine communication systems.

Features:

• Center-fed 1/2-wave coaxial sleeve design for reliable VHF communication

• Constructed with brass and copper elements for durability

• Chrome-plated brass ferrule with standard 1-14 thread for secure mounting

• Includes 15-foot RG-58 coaxial cable and PL-259 connector for easy setup

• Omni-directional radiation pattern providing broad signal coverage

• Operates within the VHF marine band with 3 dB gain

• Maximum input power of 50 watts suitable for most marine radios

• Vertical polarization for consistent signal transmission

• Compact 5-foot height ideal for vessel installation

• Designed to reduce signal fading in rough seas and adverse conditions
