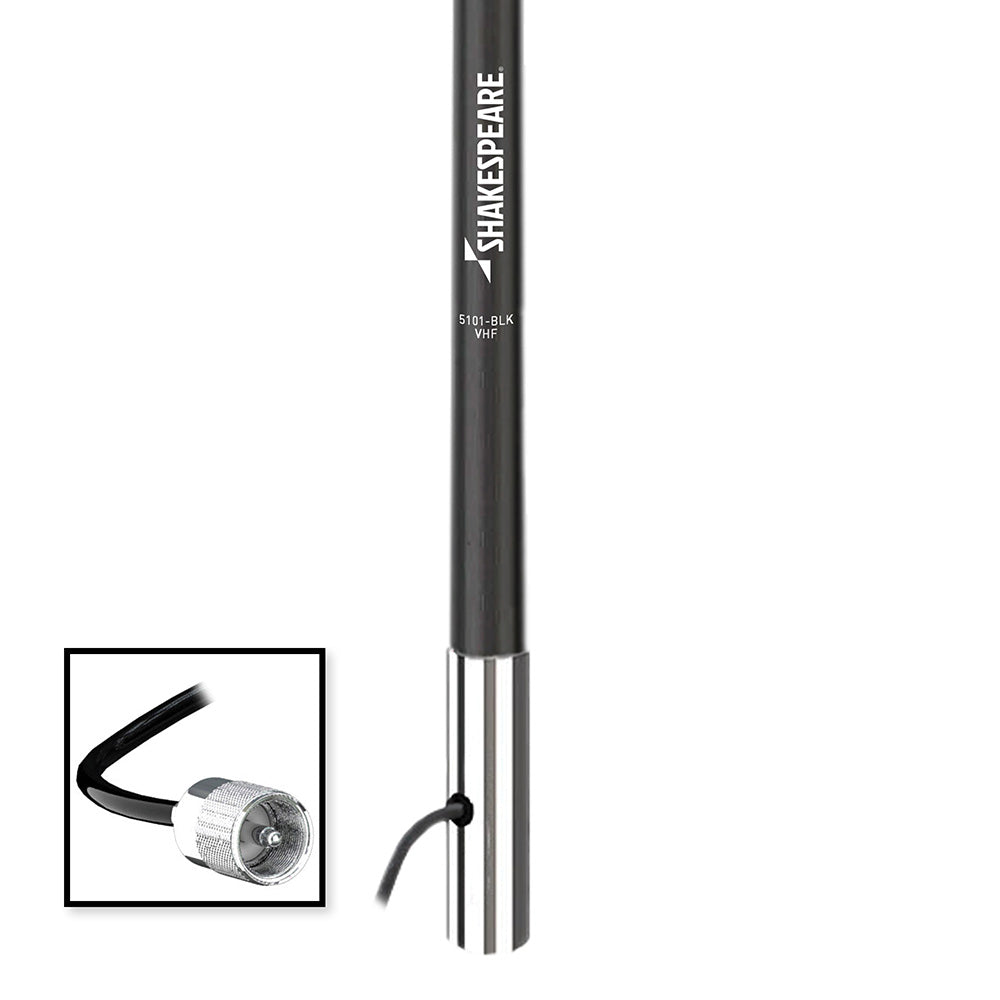

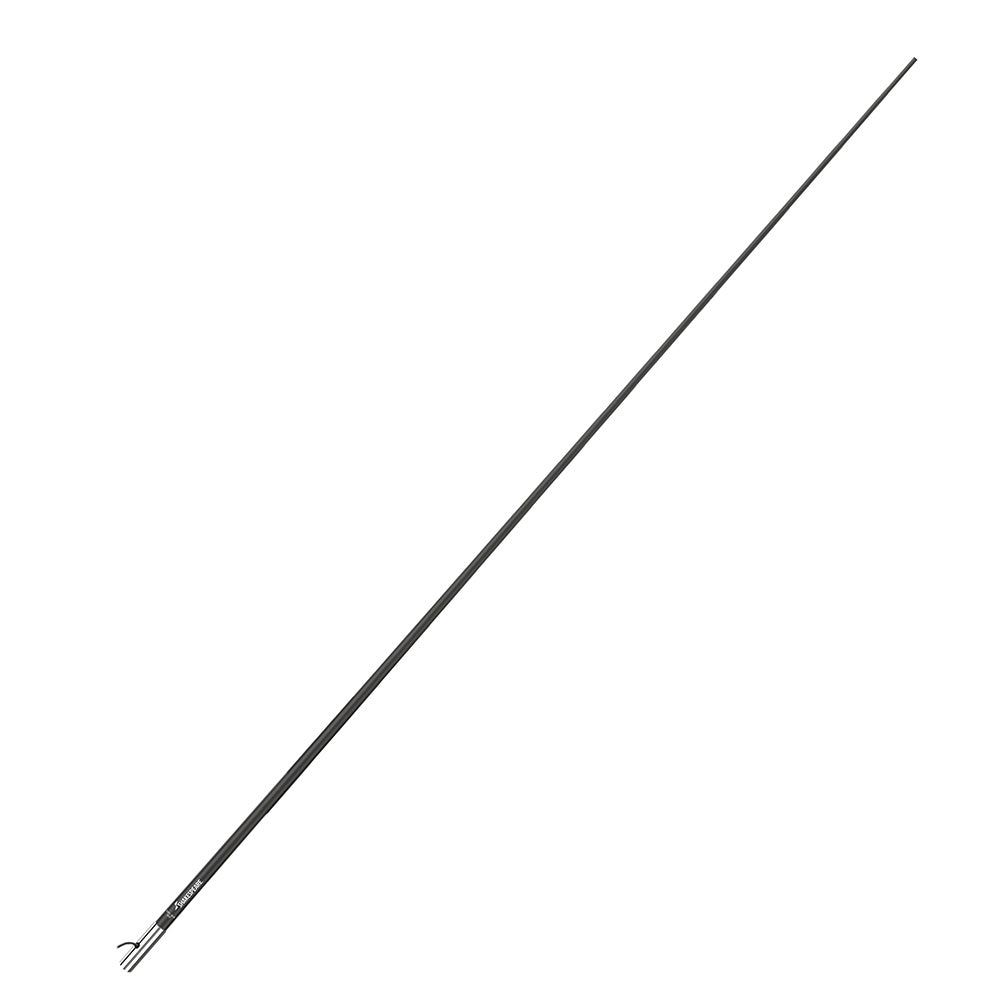

Shakespeare 5101 8' Classic VHF Marine Antenna with 15' RG-58 Cable - Black

5101 8 Classic VHF Antenna with 15 RG-58 Cable - Black

A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8 antenna with a brass element and a smooth, high gloss, polyurethane finish that wont turn yellow in the sun. This antenna delivers not only performance but superb value.

Features:

• Brass and copper elements
• Chrome-plated brass ferrule with standard 1-14 thread
• Includes 15 RG-58 cable and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16 antenna system
• One section
• Shakespeare Limited Warranty: 2 years

Specifications:

• Frequency: VHF Marine Band
• Bandwidth: (within 2.0 1 SWR): 5 MHz
• SWR: 1.5:1 at 156.8 MHz
• Impedance (Ohms): 50
• Gain: 6 dB
• Max. Input (Watts): 50
• DC Ground: YES - however, the antenna will read open circuit when tested with ohmeter.
• Termination: 15 RG-58 cable
• Height (feet): 8
• Polarization: Vertical
• Radiation pattern: Omni - directional

The Shakespeare 5101 8' Classic VHF Marine Antenna offers reliable performance with a sleek, durable design. Constructed with brass and copper elements, this antenna ensures excellent signal reception, making it an ideal choice for marine communications. Its high-gloss polyurethane finish resists yellowing from sun exposure, maintaining a professional appearance over time. The included 15-foot RG-58 coaxial cable with a PL-259 connector provides a straightforward setup, compatible with standard mounts such as the Shakespeare Style 4187 ratchet mount or a combination of the Style 410-R mounting kit and a Style 4008 extension mast for a 16-foot system. This single-section antenna supports the VHF marine band with a bandwidth of 5 MHz and delivers a gain of 6 dB, ensuring clear communication in various maritime environments. The antenna's 50-ohm impedance and 1.5:1 SWR at 156.8 MHz optimize signal strength and minimize reflection loss, while its omni-directional radiation pattern provides consistent coverage in all directions. Designed for vessels requiring a reliable, cost-effective VHF antenna, the Shakespeare 5101 8' Classic VHF features a chrome-plated brass ferrule with standard 1-14 thread for secure mounting. With a maximum input power of 50 watts and a vertical polarization, this antenna is built to withstand marine conditions, backed by a 2-year limited warranty. Whether installed on small boats or larger vessels, it ensures dependable communication and long-lasting durability in challenging environments.

Features:

• Brass and copper elements ensure high conductivity and durability

• Chrome-plated brass ferrule with standard 1-14 thread for secure mounting

• Includes 15-foot RG-58 coaxial cable with PL-259 connector for easy setup

• Suggested mount: Shakespeare Style 4187 ratchet mount or use a mounting kit for extended systems

• Single-section design simplifies installation and maintenance

• VHF Marine Band with a bandwidth of 5 MHz and 6 dB gain for clear communication

• Supports up to 50 watts maximum input power

• Vertical polarization with omni-directional radiation pattern for broad coverage

• High gloss polyurethane finish resists sun yellowing and weathering

• Backed by a 2-year limited warranty ensuring quality and reliability
