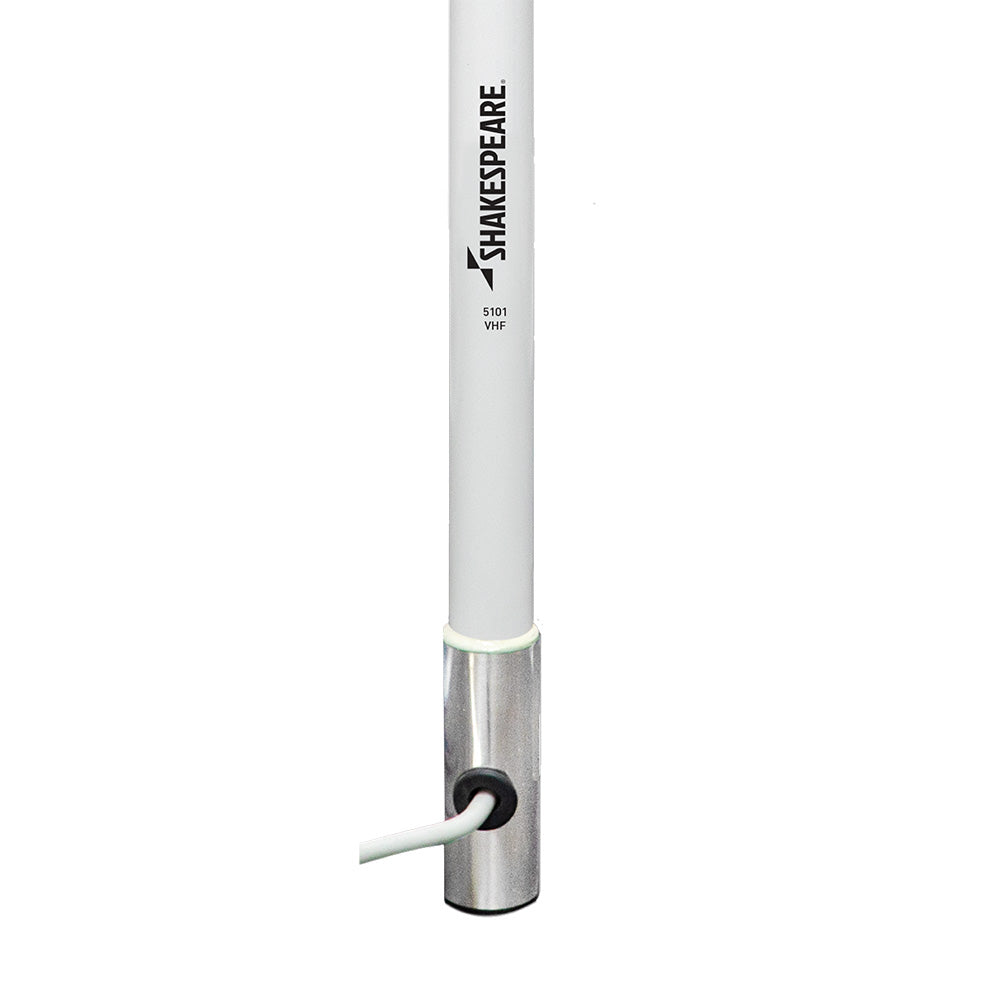

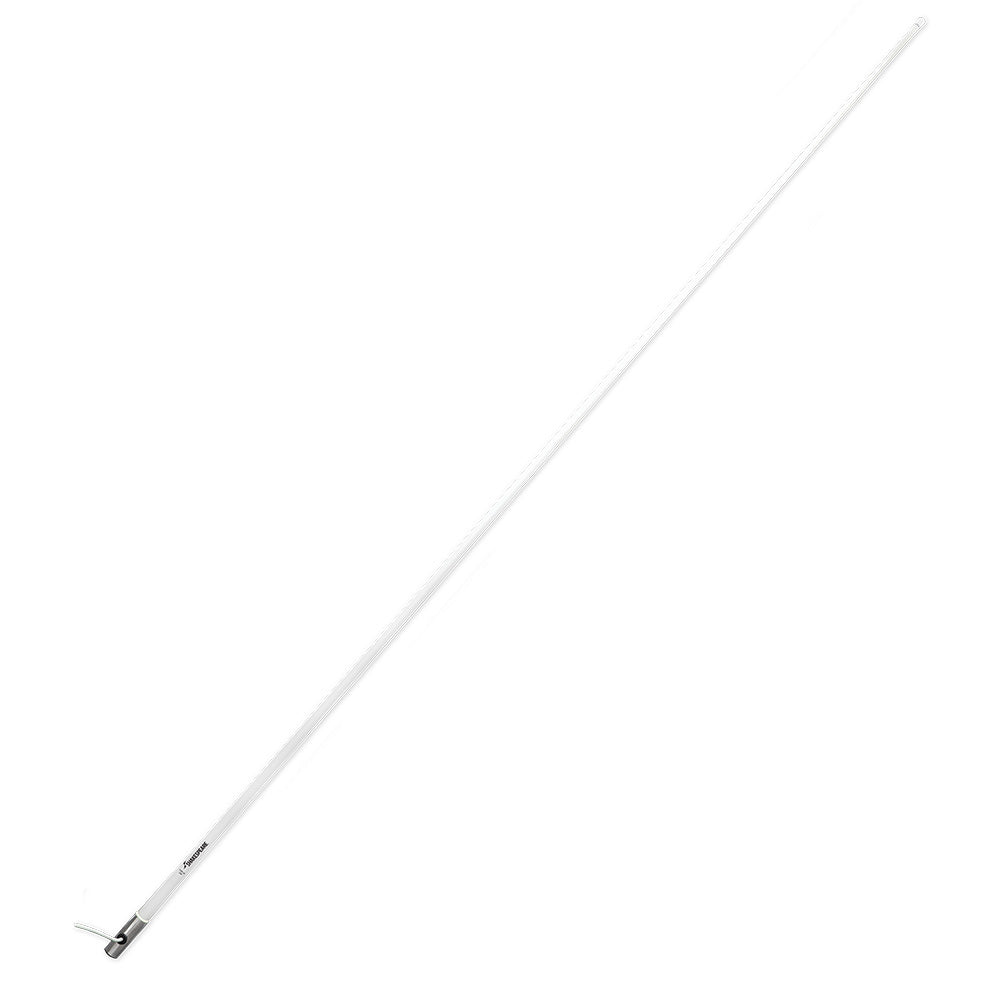

Shakespeare 5101 8' Classic VHF Marine Antenna with 15' RG-58 Cable - White, Reduced Length Version

5101 8 Classic VHF Antenna with 15 RG-58 Cable - White - Reduced Length Version

END-FED WITH MATCHING STUB

A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8 antenna with a brass element and a smooth, high-gloss, polyurethane finish that wont turn yellow in the sun. This antenna delivers not only performance, but superb value.

Features:

• Brass and copper elements
• Chrome-plated brass ferrule with standard 1-14 thread
• Includes 15 RG-58 cable and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16 antenna system
• One section
• Shakespeare Limited Warranty: 2 years

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth: (within 2.01 SWR): 5 MHz
• SWR: 1.5:1 at 156.8 MHz
• Impedance: (Ohms): 50
• Gain: 6 dB
• Max. Input (Watts): 50
• DC Ground: YES - however, the antenna will read open circuit when tested with an ohmmeter.
• Termination: 15 RG-58 cable
• Height (feet): 8
• Polarization: Vertical
• Radiation pattern: Omni-directional

The Shakespeare 5101 8' Classic VHF Marine Antenna offers reliable performance for marine communication needs, combining durability with affordability. Featuring brass and copper elements, this antenna provides excellent conductivity and longevity, making it a dependable choice for boaters seeking clear VHF communications. Its smooth, high-gloss polyurethane finish resists sun yellowing, maintaining a sleek appearance over time. The antenna includes a matching stub for optimal signal transfer and is designed with a chrome-plated brass ferrule that threads onto standard mounts for easy installation.
The package comes with a 15-foot RG-58 cable and a PL-259 connector, simplifying setup and ensuring robust signal transmission. Its suggested mounting options include the Shakespeare Style 4187 ratchet mount or a combination with a Style 410-R mounting kit and a Style 4008 extension mast to achieve a 16-foot system, providing flexibility for various boat sizes and configurations.
This one-section, omni-directional antenna operates on the VHF marine band with a gain of 6 dB, offering reliable 50-watt maximum input handling. It features a 1.5:1 SWR at 156.8 MHz and a 5 MHz bandwidth within a 2.01 SWR, ensuring clear communication channels. The antenna is polarized vertically, providing consistent omni-directional radiation for broad coverage. Its impedance is 50 ohms, making it compatible with standard marine radio equipment. The 8-foot height strikes a balance between performance and reduced weight, making it suitable for a variety of vessels. Backed by a 2-year limited warranty, the Shakespeare 5101 ensures quality and peace of mind for marine communication applications.

Features:

• Brass and copper elements for optimal conductivity and durability

• Chrome-plated brass ferrule with standard 1-14 thread for secure mounting

• Includes 15-foot RG-58 cable with PL-259 connector for straightforward installation

• Suggested mounting options include Shakespeare Style 4187 Ratchet Mount or combination with Style 410-R Mounting Kit and Style 4008 Extension Mast for a 16-foot system

• Single-section, omni-directional design for broad VHF marine band coverage

• Vertical polarization for consistent signal radiation

• Operates with a 6 dB gain and handles up to 50 watts maximum input

• Impedance of 50 ohms, suitable for standard marine radios

• High-gloss polyurethane finish resists sun damage and maintains appearance over time

• Limited 2-year warranty ensures product reliability and support
