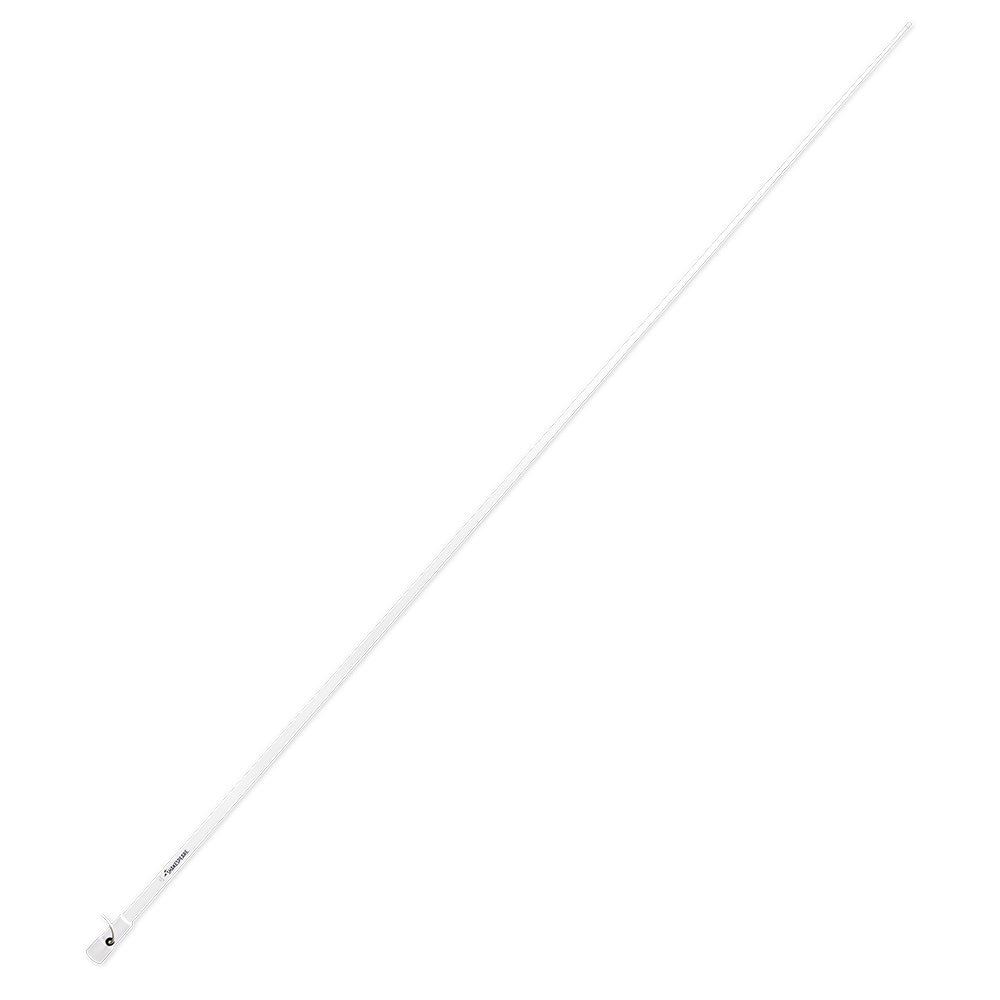

Shakespeare 5206-N 8' VHF Marine Antenna with Nylon Ferrule

Shakespeare Style 5206-N VHF Marine - Reduced Length Version

8' LENGTH 6dB

END-FED WITH MATCHING STUB

Same as the Style 5206-C, but the 5206-N has a nylon ferrule.

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.

• Quality copper cable elements for good range and efficiency

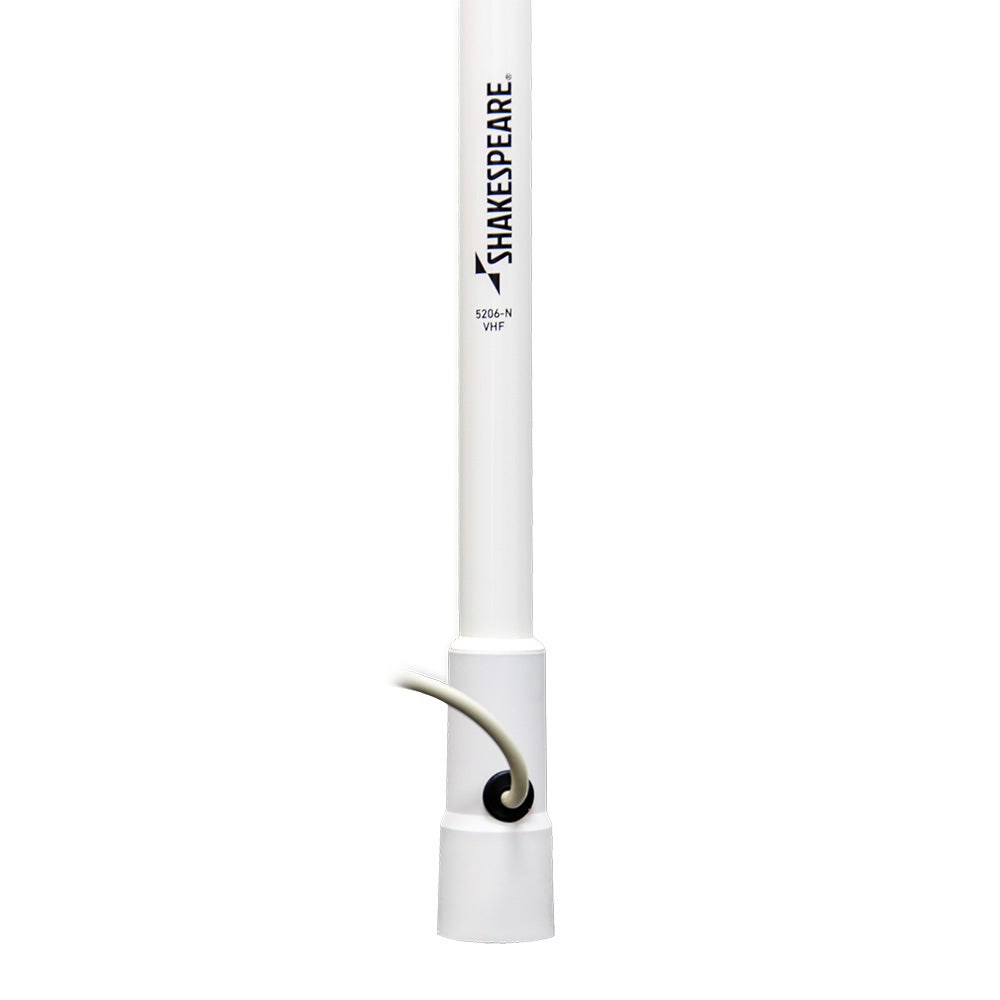

• Nylon ferrule with standard 1-14 thread

• Includes 15' RG-58 cable and a PL-259 connector

• Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount

• Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas

• One section

• Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	3 MHz
SWR:	1.5:1 @156.8 MHz
Impedance:	(Ohms): 50
Gain:	6 dB
Max Input (Watts):	50
DC Ground:	NO - the antenna will read open circuit when checked with an ohm meter or continuity tester.
Termination:	RG-58
Height (feet):	8
Polarization:	Vertical
Radiation pattern:	Omni-directional

The Shakespeare 5206-N VHF Marine antenna is an economical, lightweight, and self-supporting solution designed for reliable marine communication. With an 8-foot length and a gain of 6 dB, this antenna provides essential performance for boats where extended range is not critical. Its design features quality copper cable elements that ensure good signal efficiency and durability. The nylon ferrule, equipped with a standard 1-14 thread, enhances the antenna's robustness and ease of installation. Included with the antenna is a 15-foot RG-58 coaxial cable and a PL-259 connector, simplifying setup and connection to your marine radio system. The antenna is recommended for use with Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount, providing flexible mounting options. It is twin to the Shakespeare Styles 5205 and 5207 CB Marine antennas, catering to a variety of marine communication needs. Built as a single section antenna, the 5206-N is designed for straightforward installation and reliable performance over time. Shakespeare offers a two-year limited warranty, reflecting confidence in the antenna's quality and durability. The antenna operates on the VHF Marine band with a bandwidth of 3 MHz and an SWR of 1.5:1 at 156.8 MHz, ensuring efficient signal transmission. Its impedance is 50 ohms, and it can handle up to 50 watts of maximum input power. The antenna is vertically polarized with an omni-directional radiation pattern, providing consistent coverage around the vessel. Please note that this antenna does not have a DC ground connection, which is typical for VHF marine antennas, and it reads as an open circuit when checked with an ohm meter. Overall, the Shakespeare 5206-N is an excellent choice for boaters seeking a reliable, easy-to-install VHF antenna for everyday marine communication needs.

Features:

• 8-foot length with 6 dB gain for effective marine communication

• Nylon ferrule with standard 1-14 thread for durability and secure mounting

• Includes 15-foot RG-58 coaxial cable and PL-259 connector for straightforward installation

• Quality copper cable elements for optimal signal efficiency

• Designed for use with Shakespeare lift-n-lay and ratchet mounts for flexible installation

• Single-section antenna with lightweight construction for easy handling

• Operates on the VHF Marine band with a bandwidth of 3 MHz

• Impedance of 50 ohms with a maximum input capacity of 50 watts

• Vertical polarization with omni-directional radiation pattern for 360-degree coverage

• Shakespeare's reliable two-year limited warranty for peace of mind
