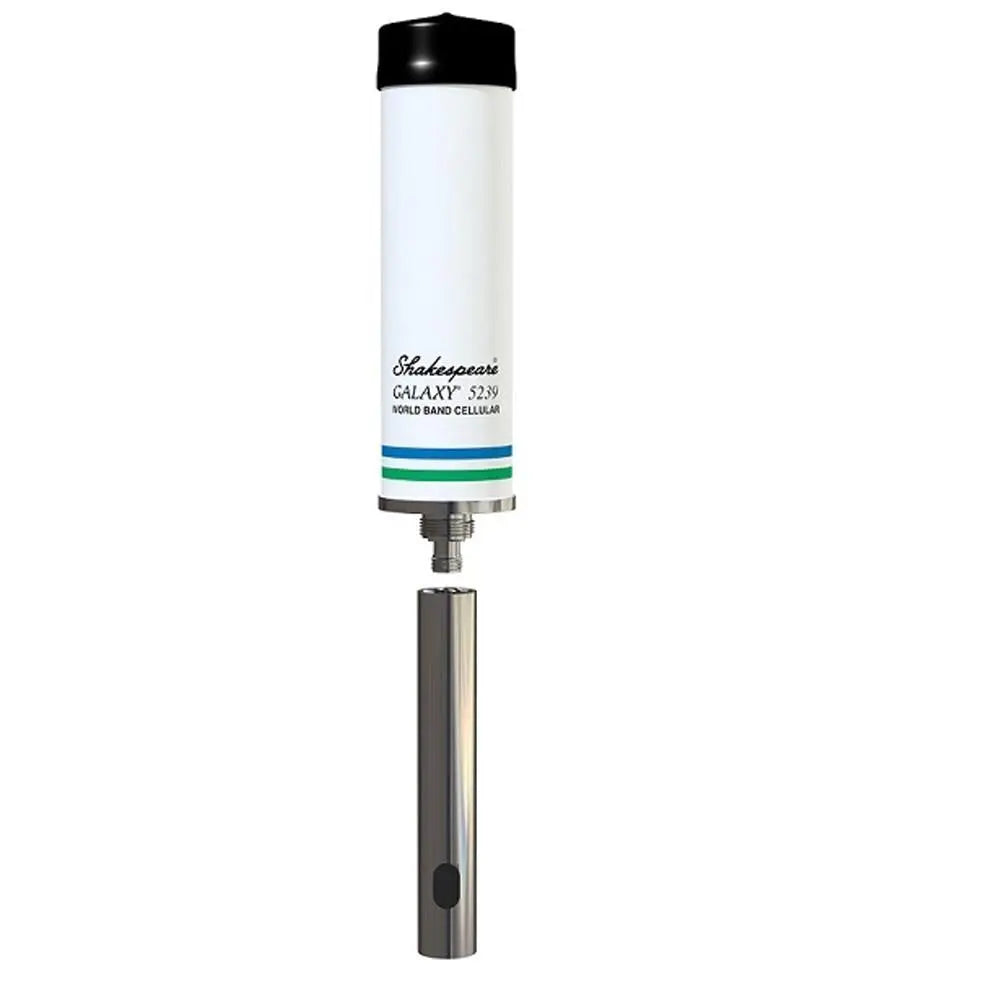

Shakespeare 5239 9.25in Galaxy World Band Antenna

Shakespeare 5239 9.25in Galaxy World Band Antenna

Shakespeare 5239 9.25" Galaxy World Band Cellular Antenna

Model: 5239
UPC: 719441900960

• Full Band (698 — 2700 MHz) Broadband


• 2G/3G/4G and WLAN systems


• Wi-Fi 802.11n compatible


• Designed for marine use


• Omni-directional antenna 3-4 dB Gain


• Easy to install

The Galaxy 5239 antenna is our smallest Galaxy antenna, but don’t let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1" -14 threaded mounts.

Specifications

Frequency
698-960 / 1700-2700 MHz

Input Impedence
50 ohm

Antenna Gain
2-3dB @ 698-960 / 3-4dB @ 1700-2700 MHz

VSWR
1.8

Power Rating (W)
10

Polarization Type
Vertical

Radiation
Omni-directional

Maximum Power (W)
100

Connector Type
N-female

Operating Temperature (F)
-22° to +176°

Mounting
1 in x 14 thread mount

Ground Plane
Internal

Material
Fiberglass

Dimensions
9.25" H x 2.625" D

What's in the Box:

• Antenna


• Ferrule
