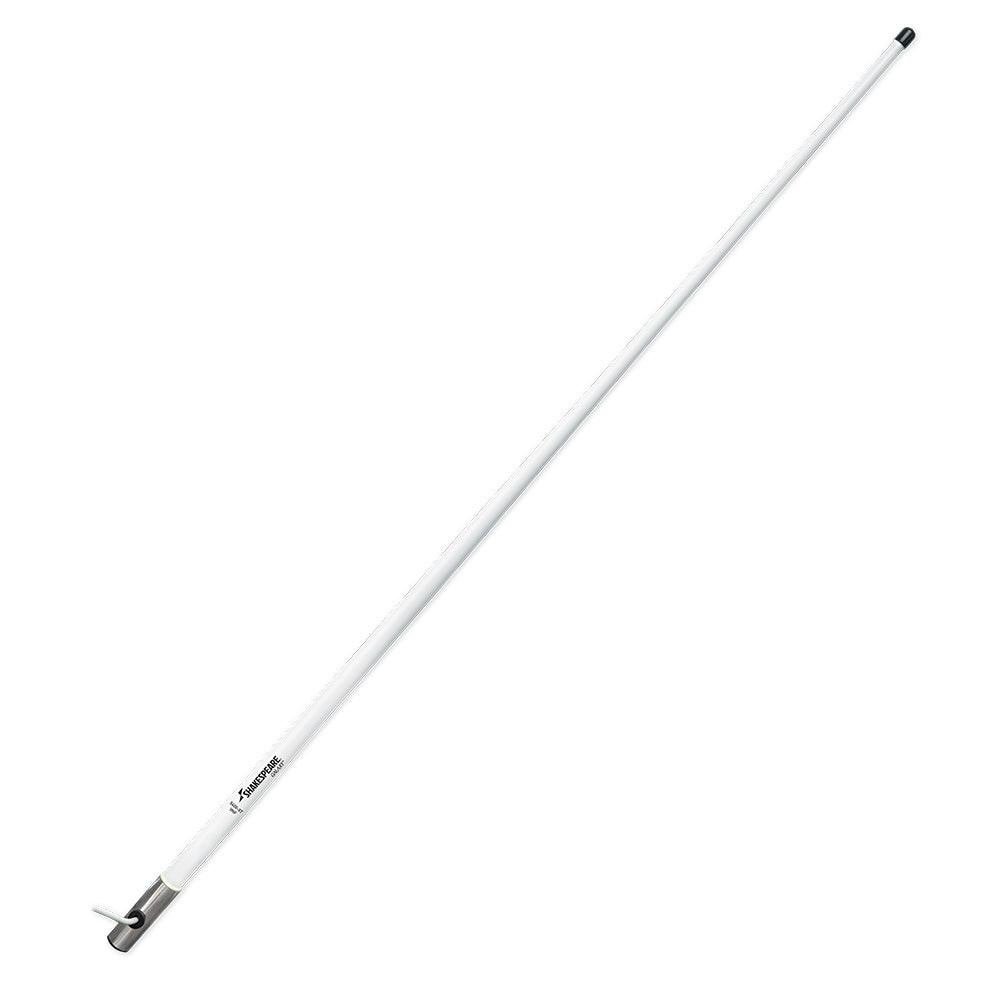

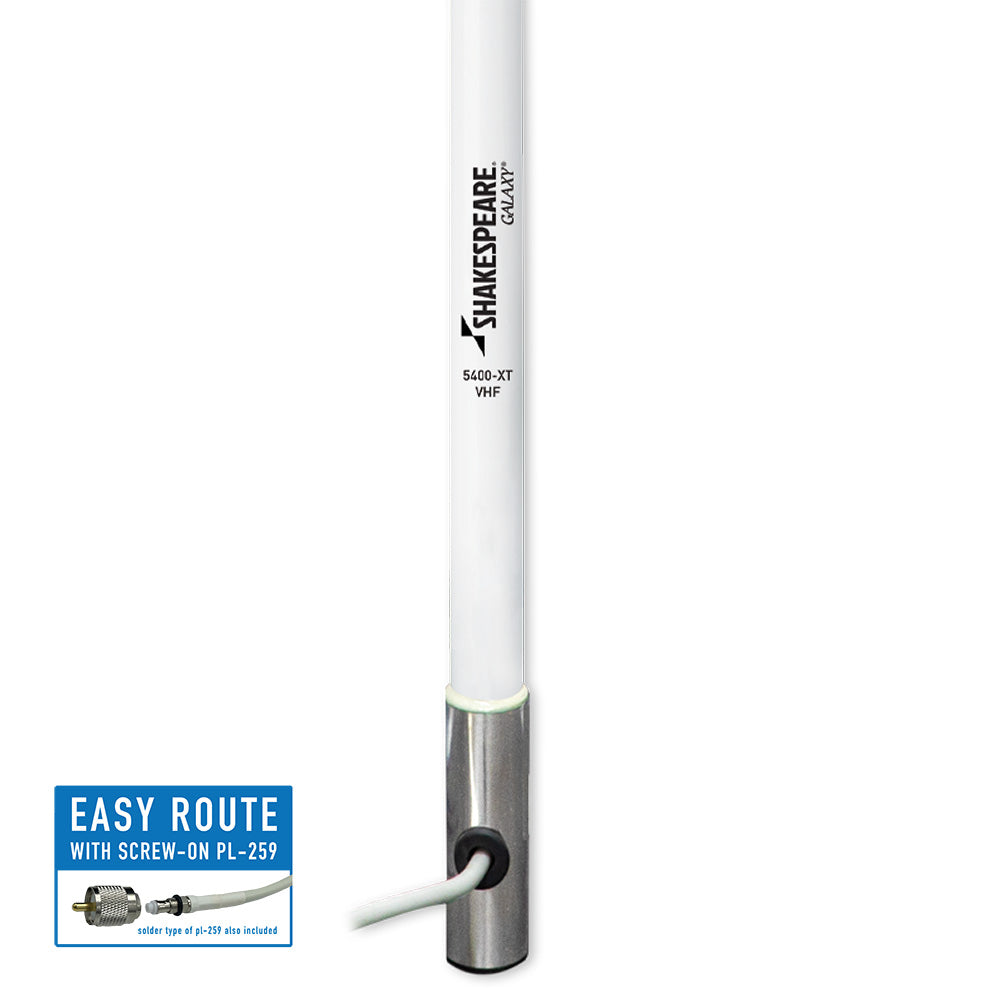

Shakespeare 5400-XT Galaxy 4' VHF Antenna with 3dB Gain for Marine and General Communications

5400-XT Galaxy 4' VHF Antenna - 3dB Gain

The compact Galaxy 5400-XT is an outstanding, general purpose 4' antenna of heavy duty construction for general purpose communications. Its at home on T-tops, hard-tops, and other positions aloft, where its small size can deliver maximum range.

Features:

• Center-fed 1/2 wave coaxial sleeve
• Brass and copper elements for maximum range
• Stainless steel ferrule with standard 1"-14 thread
• Includes 20' RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years
• Includes FME Cables

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth: 5 MHz within 2.0:1 VSWR
• SWR: Nominally 1.5:1 at 156.8 MHz
• Gain: 3 dB
• Max Input (Watts): 50 watts
• Height (feet): 4

The Shakespeare 5400-XT Galaxy 4-foot VHF antenna offers reliable, high-performance communication for marine and land-based applications. Designed with heavy-duty construction, this antenna is ideal for mounting on T-tops, hard-tops, and other elevated positions where space is limited but maximum range is essential. Its compact size and robust build ensure durability and consistent signal transmission in demanding environments. The antenna's design incorporates a center-fed 1/2 wave coaxial sleeve, with brass and copper elements that optimize signal strength and range. The stainless steel ferrule with a standard 1"-14 thread allows for easy installation using a compatible mount such as the Shakespeare Style 4187 ratchet mount. This model includes a 20-foot RG-8/X cable with a PL-259 connector, providing excellent connectivity and flexibility for various mounting options. The Galaxy 5400-XT is engineered to operate within the VHF marine band, offering a bandwidth of approximately 5 MHz with a nominal SWR of 1.5:1 at 156.8 MHz, and can handle up to 50 watts of input power. It boasts a gain of 3 dB, ensuring a strong and clear signal over considerable distances. Backed by Shakespeare's 5-year limited warranty, this antenna is built to withstand harsh marine environments and deliver long-lasting performance. Whether for marine communication, recreational boating, or general land use, the Shakespeare 5400-XT Galaxy 4' VHF antenna provides a dependable solution to keep you connected with maximum range and clarity.

Features:

• Center-fed 1/2 wave coaxial sleeve design for optimal signal transmission

• Brass and copper elements for enhanced range and durability

• Stainless steel ferrule with standard 1"-14 thread for easy mounting

• Includes 20-foot RG-8/X cable and PL-259 connector for versatile installation

• Suggested mount: Shakespeare Style 4187 ratchet mount for secure attachment

• Single-section design for straightforward setup

• Built with heavy-duty construction suitable for marine and general use

• Operates within the VHF marine band with 3dB gain

• Maximum input capacity of 50 watts for reliable performance

• Backed by a 5-year limited warranty for peace of mind
