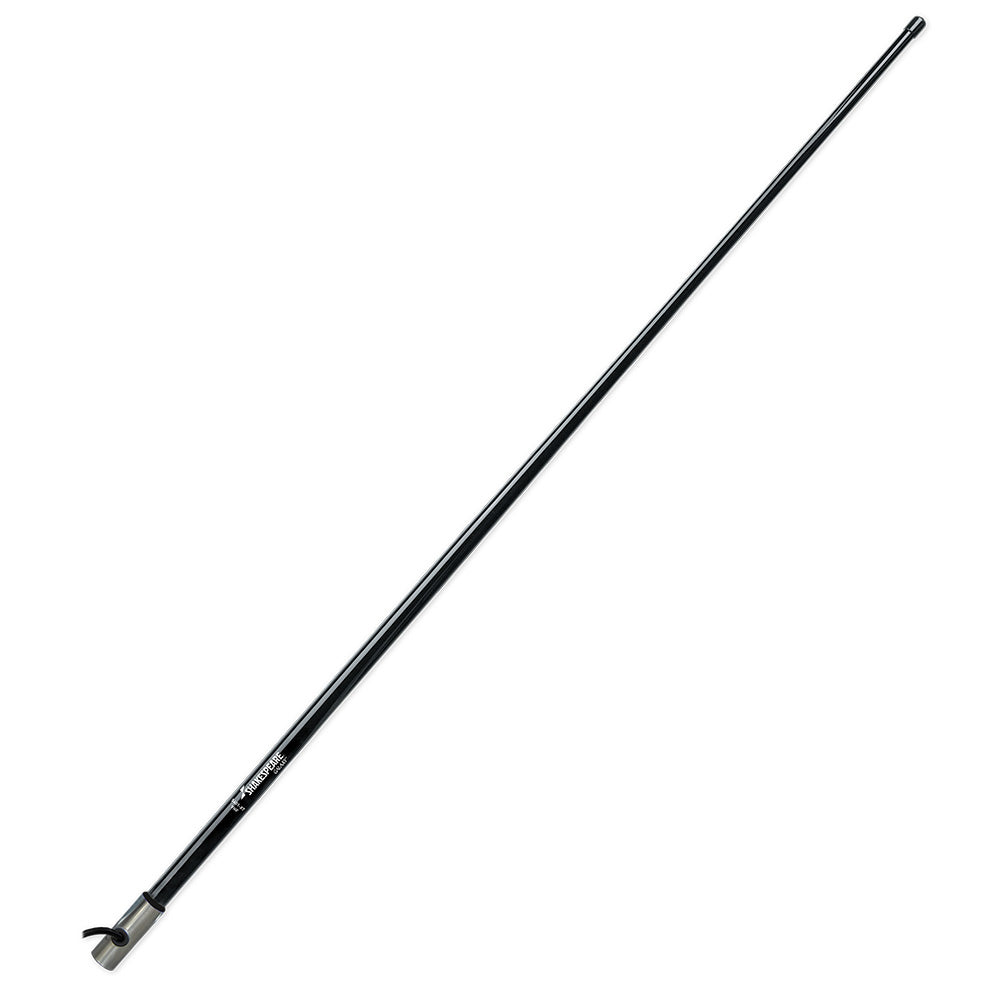

Shakespeare 5401-XT Galaxy 4' Marine VHF Antenna with 3dB Gain

5401-XT Galaxy 4' Antenna - 3dB Gain

This antenna is the same as the Style 5400-XT, but in an exclusive black Galaxy finish. It's an outstanding, 4' antenna of heavy-duty construction for general purpose communications. Its at home on T-tops, hard-tops and other positions aloft, where its small size can deliver maximum range.

Features:

• Center-fed 1/2 wave coaxial sleeve
• Brass and copper elements for maximum range

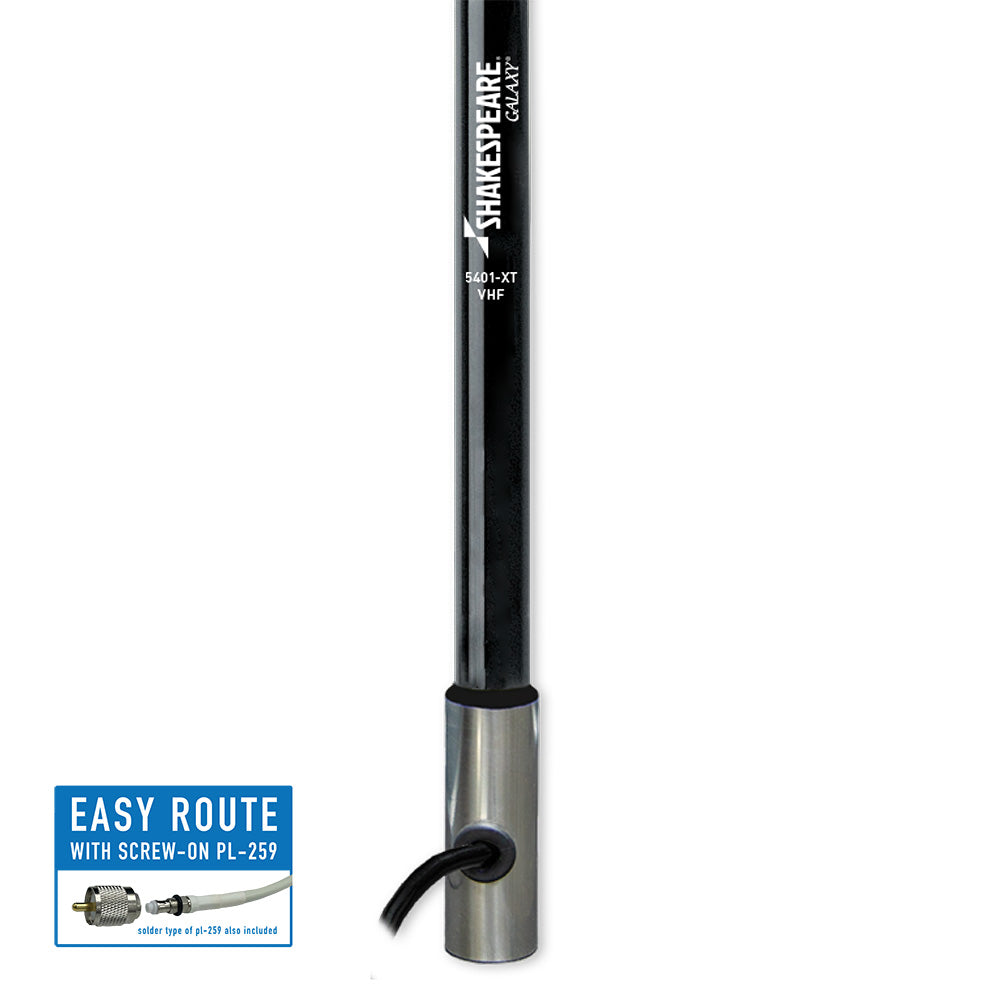

• Stainless steel ferrule with standard 1"-14 thread
• Includes 20' RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years
• Includes FME Cables

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth: 5 MHz within 2.0:1 VSWR
• SWR: Nominally 1.5:1 at 156.8 MHz
• Gain: 3 dB
• Max Input (Watts): 50 watts
• Height (feet): 4

The Shakespeare 5401-XT Galaxy 4' Marine VHF antenna combines durability and high performance for effective communication on the water. Featuring a sleek black Galaxy finish, this heavy-duty antenna is designed for versatile mounting on T-tops, hard-tops, or other elevated positions, where its compact size maximizes range and signal clarity. Its 4-foot length makes it ideal for a variety of marine applications, ensuring reliable VHF radio communication in demanding environments. Constructed with brass and copper elements, the antenna provides maximum signal transmission and reception, with a nominal SWR of 1.5:1 at 156.8 MHz and a gain of 3 dB, making it suitable for marine VHF band operations. The center-fed 1/2 wave coaxial sleeve design enhances performance, while the stainless steel ferrule with a standard 1"-14 thread ensures secure mounting. This antenna includes a 20-foot RG-8/X cable with a PL-259 connector and FME cables for easy setup and compatibility with most marine radios. The suggested mount is the Shakespeare Style 4187 ratchet mount, providing flexible positioning options. With a maximum input of 50 watts, the Shakespeare 5401-XT is built to withstand harsh marine conditions, backed by a 5-year limited warranty from Shakespeare. This antenna's robust construction and reliable performance make it an excellent choice for boat owners seeking clear communication across wide water expanses. Whether installed on a T-top or hard-top, the Galaxy 5401-XT ensures your marine communication needs are met with quality and durability.

Features:

• Center-fed 1/2 wave coaxial sleeve for optimal performance

• Constructed with brass and copper elements for maximum range

• Stainless steel ferrule with standard 1"-14 thread for secure mounting

• Includes 20-foot RG-8/X cable and PL-259 connector for easy installation

• Suggested mount: Shakespeare Style 4187 Ratchet Mount for flexible positioning

• One-section design for straightforward setup

• Limited 5-year warranty from Shakespeare
