Detailed Overview of the Shakespeare 6500-WB Antenna

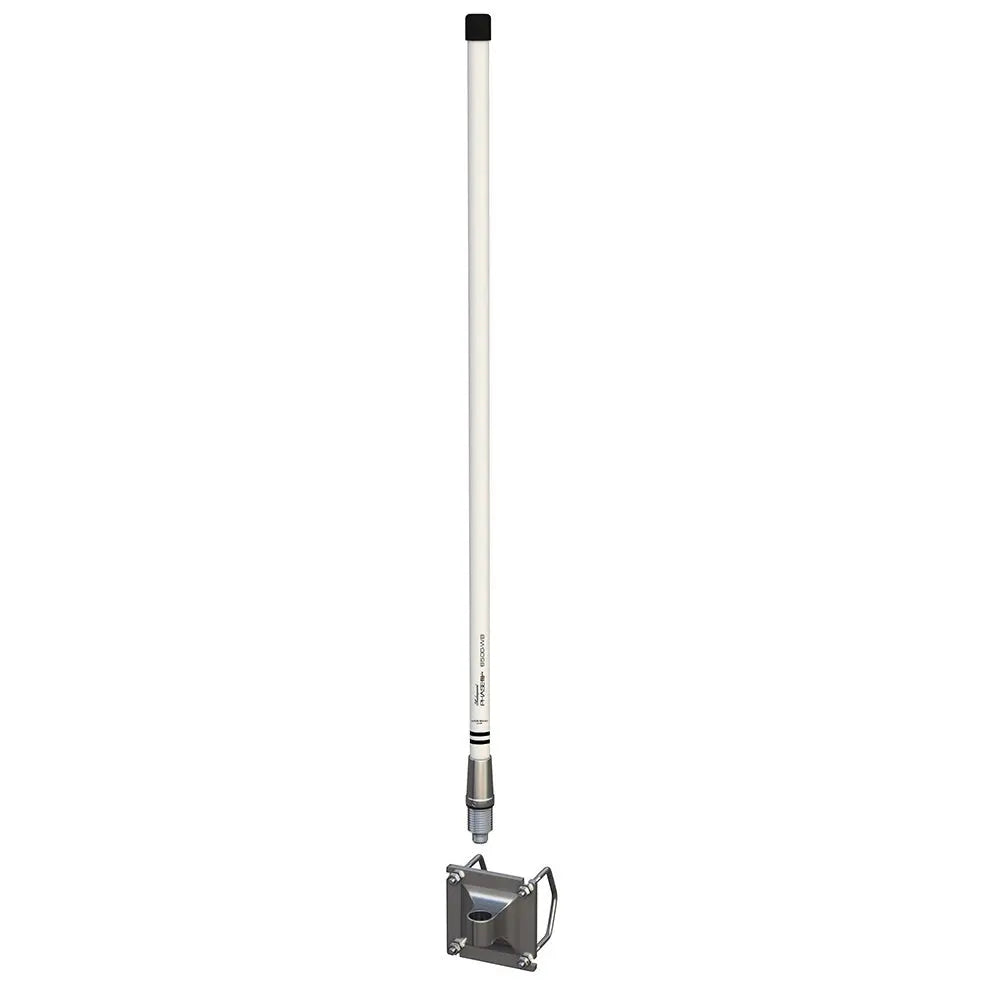

Shakespeare 6500-WB 4ft Broad Band VHF Antenna

Shakespeare 6500-WB 4 feet Broad Band VHF Antenna

Model: 6500-WB

• Stainless steel mounting bracket: corrosion resistant even in marine environments. 3 mounting options
• Patent pending mount design: install the U-bolts without removing hardware - no more lost hardware
• Detachable antenna: handle mounting bracket easily without the weight of the antenna. Also, mount it on a large variety of Shakespeare(R) mounts with a 1 in-14 thread*
• IP67**, high wind rating, wide temperature range, and PU Coating: built to last in rain, sun, ice, dust, water splashes and even corrosive marine environments

Built for maximum performance, this 4 feet broad band antenna is designed to endure the harsh environment and communication requirements in commercial, law enforcement and disaster management applications. Whether you install it on a vessel, base station, or a stationary platform, this antenna provides a host of mounting options to fit your need. No tuning or ground plane required. Cable not included.

*Requires a Shakespeare 4006 double female ferrule (not included).

**When installed as instructed.

Specifications

Frequency156-162 MHz, VSWR < 1.5:1

145-165 MHz, VSWR < 2:

Nominal Impedance
50 Ohm

Input Power Rating
100 Watts, continuous

Gain
3dB

Polarization (Pattern)
Vertical (Omnidirectional)

Connector
UHF Female (SO-239 type)

Recommended Cable
RG-8/U, RG-213/U or similar

DC Ground
Yes

Wind Rating
125 mph (55m/s)

Ingress Rating
IP67**

Temperature Range
-67 deg F to 160 deg F (-55 deg C to 71 deg C)

Finish
White, high-gloss, non-yellowing polyurethane finish

Mounting

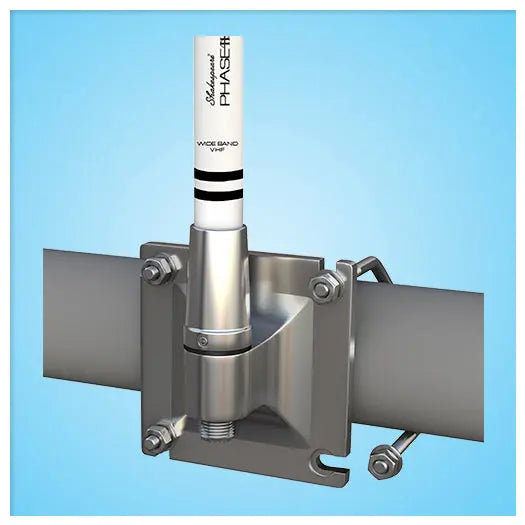

Stainless steel mounting bracket with U-bolts, for mounting on mast, rails, or screwed directly onto bulkheads

High Performance Broad Band VHF Reception

The Shakespeare 6500-WB antenna delivers exceptional broad band VHF reception, providing clear and consistent marine communication. Its 4-foot length optimizes signal strength across an extended frequency range, ensuring reliable performance on both short and long-range transmissions. Designed specifically for marine use, this antenna offers superior resistance to harsh environments, making it ideal for boating enthusiasts and professionals alike. The Shakespeare 6500-WB antenna balances durability with excellent reception, securing clear communication when it matters most.

Robust Construction for Marine Environments

Built to withstand tough marine conditions, the Shakespeare 6500-WB antenna features a rugged fiberglass radome and corrosion-resistant materials. This design delivers long-lasting durability against salt, sun exposure, and rough seas. Its sturdy construction minimizes maintenance needs, allowing users to focus on their maritime adventures without worrying about equipment damage. The antenna’s reliable build quality ensures it stays operational in extreme weather, providing peace of mind during critical communication tasks at sea.

Easy Installation and Versatile Compatibility

The Shakespeare 6500-WB antenna offers straightforward installation with a standard mount, making it compatible with most vessels regardless of size. It fits easily on boats, yachts, and other marine vessels without complex setup. Its lightweight design reduces strain on mounting points while maintaining its sturdy stance even under heavy wind conditions. Whether upgrading an existing system or outfitting a new boat, this antenna integrates seamlessly, enhancing overall VHF communications with minimal hassle.
