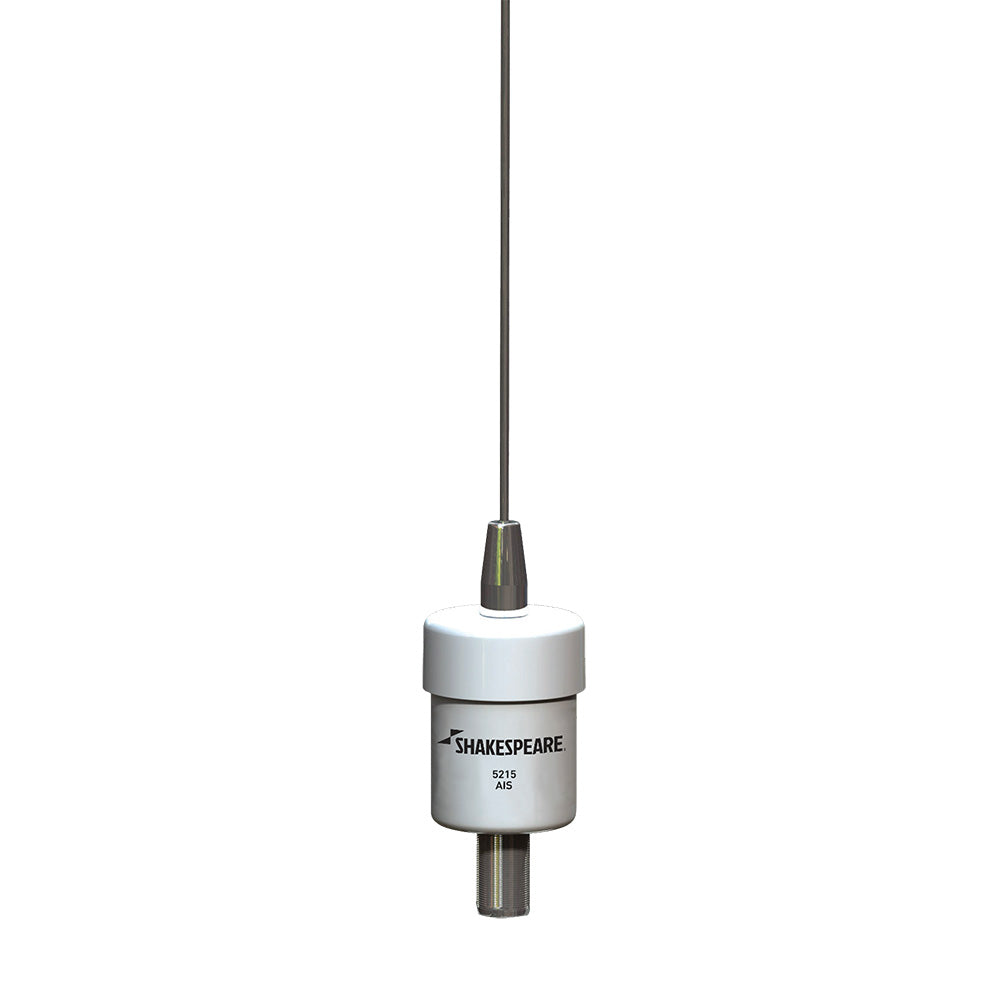

Shakespeare AIS 5215-AIS 36-Inch Squatty Body VHF Marine Band Antenna for Sailboats

Shakespeare Squatty Body
Style 5215-AIS
3' (0.9m) VHF Marine Band 3dB

End-fed 1/2-wave stainless steel whip

Sailboat owners will love this version of their longtime favorite, our Style 5215. Its the same light weight, low-profile, stainless steel antenna, specially designed for masthead mounting and built with extra bandwidth for all popular AIS transceivers.

• Sealed, tin-plated copper wire coil

• Designed specifically for AIS transceivers

• SO-239 connector

• Stainless steel L-shaped bracket supplied for mounting

• One section

• For AIS applications

Best applications include: Sailboats

Shakespeare 5215-AIS Squatty Body Specifications

• Band: VHF Marine Band

• Antenna Gain: 3dB

• Max. Input Power: 50 watts

• SWR: nominally 1.5:1 at 162 MHz

• Bandwidth: 7 MHz within 2.0:1 VSWR

• Ferrule: L-bracket and retaining nut, SO-239 connector

• Polarity: Vertical

• Impedance: 50 Ohms

• DC Ground: No DC Ground - The antenna will read open on continuity test.

• Shakespeare Limited Warranty: 2 years

The Shakespeare AIS 5215-AIS is a compact and lightweight 36-inch stainless steel antenna designed specifically for AIS transceivers on sailboats. Its low-profile, masthead mounting capability makes it an ideal solution for maximizing space and performance aboard your vessel. Constructed with an end-fed 1/2-wave stainless steel whip, this antenna offers durability and reliable signal transmission in marine environments. Its sealed, tin-plated copper wire coil ensures protection against corrosion, providing long-lasting operation. The antenna features a standard SO-239 connector and includes a stainless steel L-shaped mounting bracket for secure installation. Designed for the VHF Marine Band, it offers a gain of 3dB and a bandwidth of approximately 7 MHz within a 2:1 VSWR, ensuring clear communication across all popular AIS transceivers. The maximum input power is rated at 50 watts, making it suitable for most marine applications. Its vertical polarity and 50 Ohm impedance facilitate optimal signal transmission while maintaining easy installation and maintenance. The antenna does not have a DC ground connection, which is typical for this type of marine antenna. Shakespeare’s 2-year limited warranty provides added confidence in its quality and durability, making it a dependable choice for sailboat owners seeking efficient AIS communication. Whether for navigation, safety, or communication, this antenna is an essential accessory for enhancing your vessel’s marine radio system and ensuring reliable connectivity at sea.

Features:

• Band: VHF Marine Band for reliable marine communication

• Antenna Gain: 3dB for effective signal transmission

• Max. Input Power: 50 watts suitable for most AIS transceivers

• SWR: Nominally 1.5:1 at 162 MHz for efficient operation

• Bandwidth: 7 MHz within 2.0:1 VSWR for versatile usage

• Ferrule: L-bracket and retaining nut for secure mounting

• Connector: SO-239 for compatibility with standard marine antennas

• Polarity: Vertical to optimize signal propagation

• Impedance: 50 Ohms for consistent performance

• Design: One-section stainless steel whip for durability and ease of installation

• Application: Ideal for sailboats and AIS communication systems
