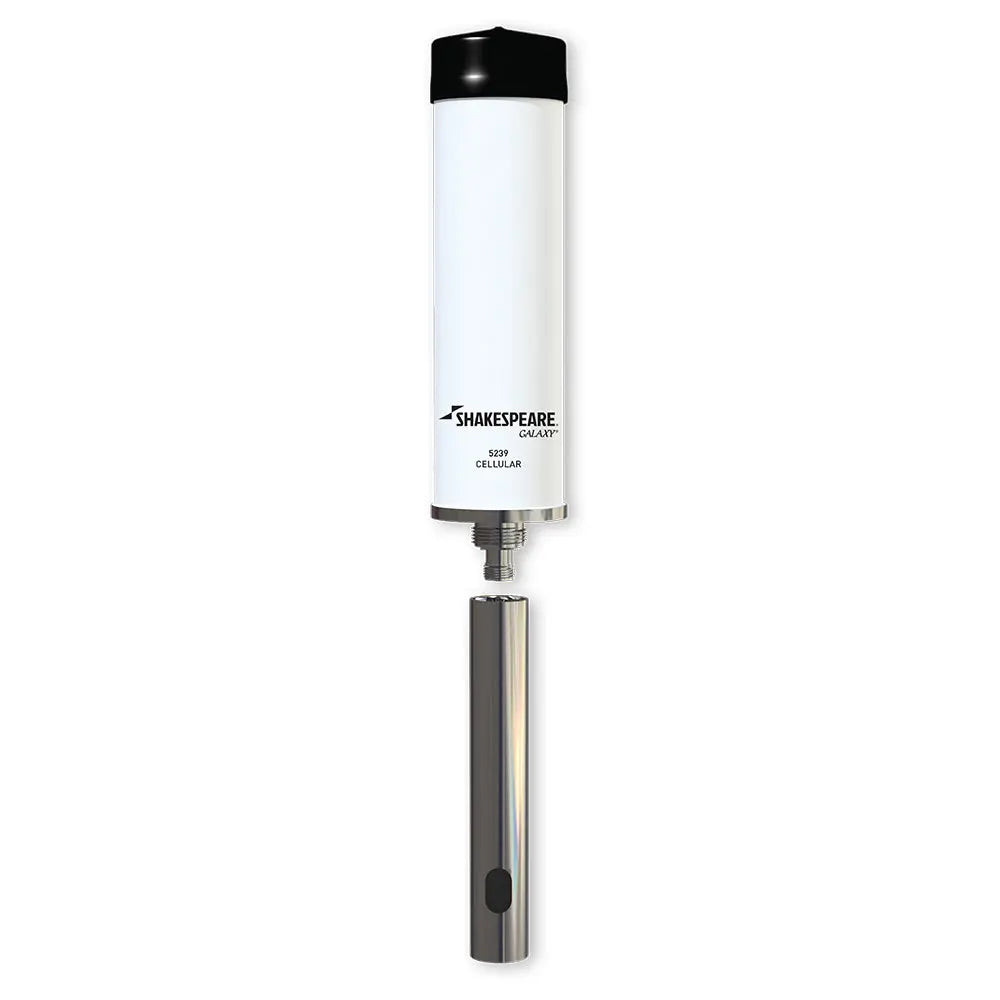

Shakespeare Cellular/Wi-Fi World Band Galaxy Antenna Part 5239 for Marine and Watercraft Use

Cellular/Wi-Fi World Band Galaxy Antenna

The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.

Features:

• Full Band (698 - 2700 MHz) Broadband
• 2G/3G/4G and WLAN systems
• Wi-Fi 802.11n compatible
• Designed for marine use
• Omni-directional antenna 3-4 dB Gain.
• Easy to install
• Includes FME Cables

Specifications:

• Frequency: 698-960/1700-2700 MHz
• Input Impedence: 50 ohm
• Antenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHz
• VSWR: 1.8
• Power Rating (W): 10
• Polarization Type: Vertical
• Radiation: Omni-Directional
• Maximum Power (W): 100
• Connector Type: N-female
• Dimension: 9.25" H x 2.625" D
• Color: White
• Operating Temperature (F): -22 to +176
• Mounting: 1" x 14 Thread Mount
• Ground Plane: Internal
• Material: Fiberglass

The Shakespeare Part 5239 Cellular/Wi-Fi World Band Galaxy Antenna offers a compact yet versatile solution for marine communication and Wi-Fi connectivity. Designed to cover a broad spectrum of frequencies from 698 MHz to 2700 MHz, this antenna supports 2G, 3G, 4G, LTE, and WLAN systems, making it suitable for a wide range of cellular and wireless applications on watercraft. Its omni-directional radiation pattern ensures reliable signal reception and transmission regardless of vessel orientation, providing consistent connectivity while on the move. Constructed with high-quality fiberglass, the antenna is durable, weather-resistant, and optimized for marine environments, ensuring long-lasting performance even in harsh conditions. The stainless steel ferrule and N-female connector are compatible with most Shakespeare 1-inch -14 threaded mounts, facilitating easy and secure installation. Its sleek white finish blends seamlessly with marine aesthetics and enhances visibility on the water. The antenna's design emphasizes ease of installation with included FME cables, and its vertical polarization enhances signal clarity. With a gain of 2-3 dB across lower frequencies and 3-4 dB at higher bands, it provides sufficient signal strength for reliable voice, data, and Wi-Fi connections. Whether upgrading an existing marine communication system or installing a new one, the Shakespeare Galaxy Part 5239 antenna is an effective choice for ensuring comprehensive connectivity in marine environments. Its robust construction and broad frequency coverage make it ideal for recreational boats, yachts, and commercial vessels seeking dependable cellular and Wi-Fi performance at sea.

Features:

• Full Band (698 - 2700 MHz) Broadband for versatile cellular and WLAN coverage

• Supports 2G, 3G, 4G, LTE, and Wi-Fi 802.11n systems

• Omni-directional radiation pattern for reliable signal reception in all directions

• Designed specifically for marine use with durable fiberglass construction

• Includes stainless steel ferrule and N-female connector compatible with most 1-inch -14 threaded mounts

• Easy to install with included FME cables and standard mounting hardware

• Compact size measuring approximately 9.25 inches in height with weather-resistant design
