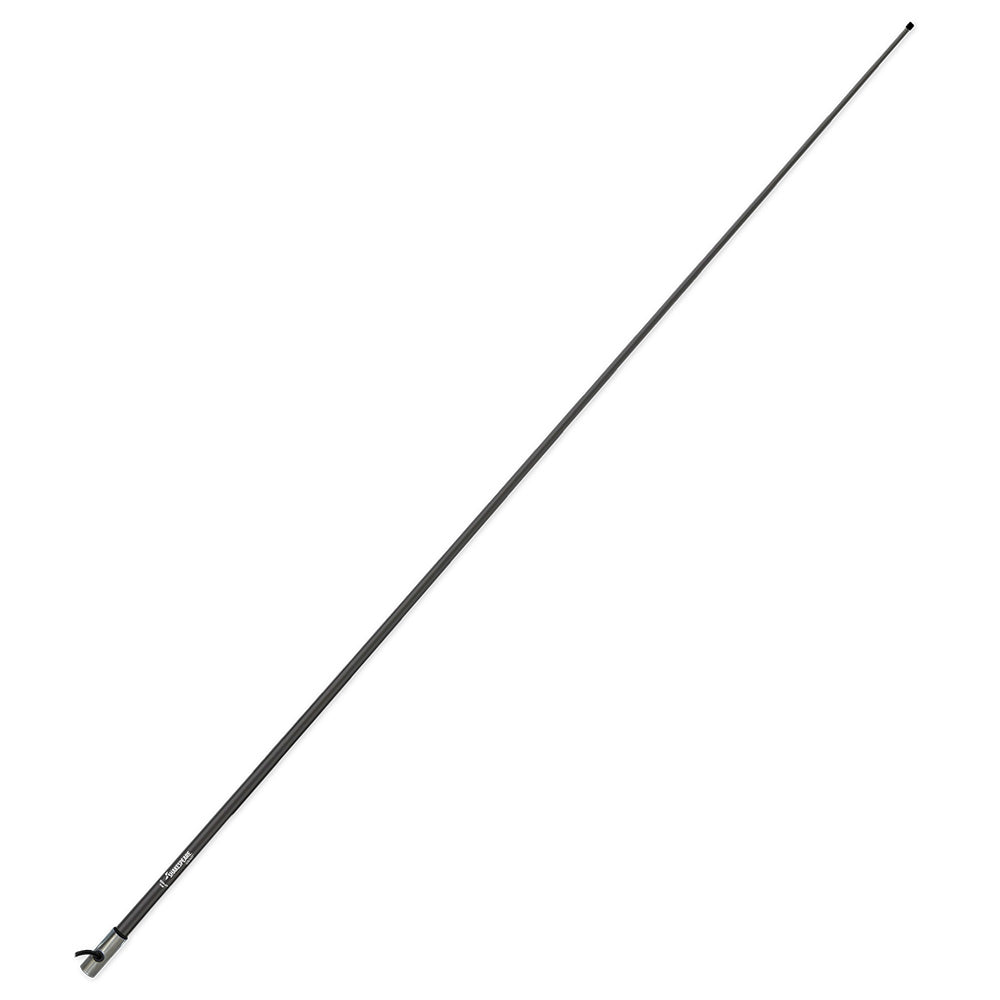

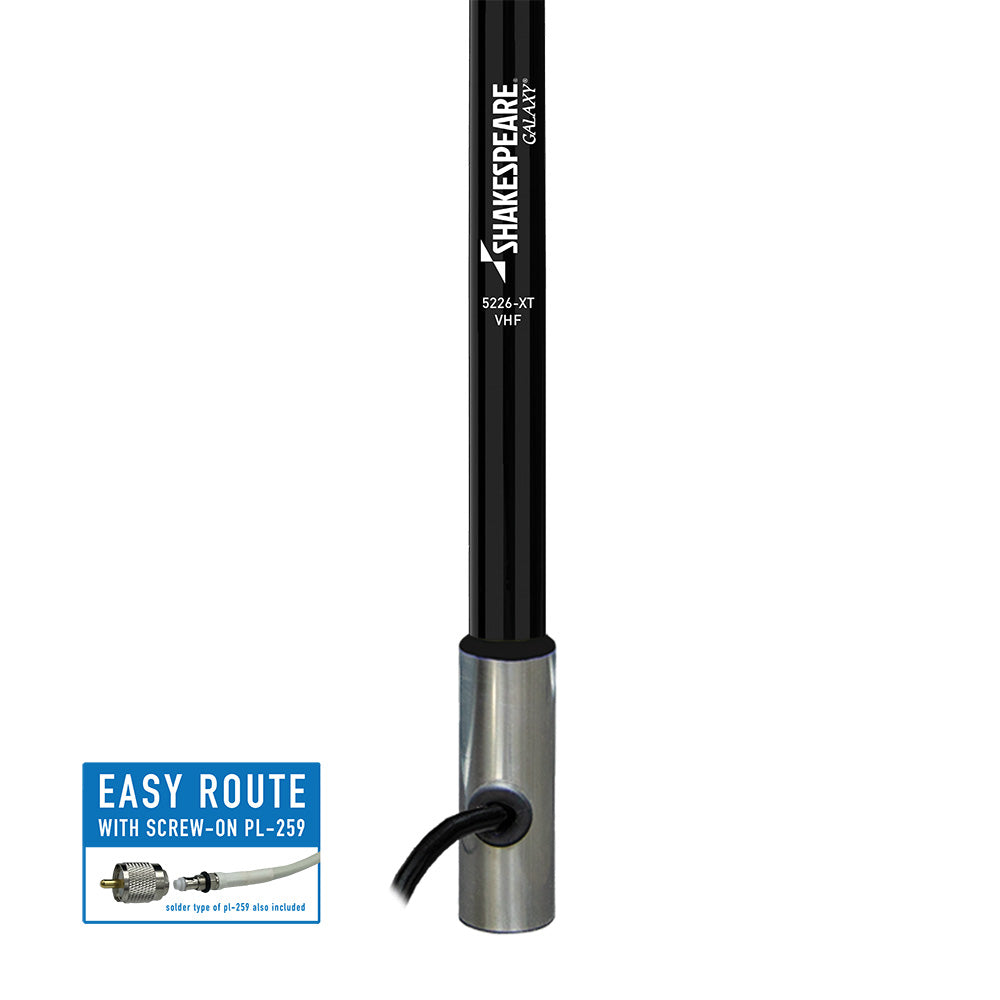

Shakespeare Galaxy 5226-XT 8' Black VHF Antenna with 6dB Gain for Marine Use

Galaxy 5226-XT 8' Black VHF Antenna - 6dB Gain

EXTRA TOUGH!

This antenna is the same as Style 5225-XT( Reduced length version) but with the exclusive Galaxy gloss black finish. It's Shakespeares best maximum range and quality in a great looking Galaxy antenna. The new 5225-XT is Shakespeares classic Style 5225 in a new, stronger, stiffer radome. Its extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

Features:

• Collinear-phased 5/8 wave elements
• Brass and copper elements for maximum range and efficiency
• Stainless steel ferrule with standard 1"-14 thread
• 20' RG-8/X low-loss cable plus a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth: 3 MHz within 2.0:1 VSWR
• SWR: Mominally 1.5:1 at 156.8 MHz
• Impedance: 50 ohms
• Gain: 6 dB
• Max Input (Watts): 100 watts
• DC Ground: YES
• Height (feet): 8
• Polarization: Vertical

The Shakespeare Galaxy 5226-XT 8-foot black VHF antenna is engineered for maximum performance and durability in marine environments. Featuring a sleek gloss black finish, this antenna combines aesthetic appeal with rugged construction, making it an ideal choice for boats exposed to high winds, rough seas, or high speeds. Its design incorporates a collinear-phased 5/8 wave element for enhanced range, ensuring clear and reliable communication across the VHF marine band. The brass and copper elements optimize efficiency and signal strength, providing up to 6 dB gain for improved transmission and reception. An included 20-foot low-loss RG-8/X cable with a PL-259 connector simplifies installation, while the stainless steel ferrule with standard 1-inch-14 thread ensures secure mounting. The antenna's one-section design makes it easy to handle and install, with a suggested mount of Shakespeare Style 4187 Ratchet Mount for versatile positioning. Built with a stronger, stiffer radome, the Galaxy 5226-XT offers exceptional resistance to harsh conditions, making it suitable for use on hard tops, T-tops, radar arches, or other mounting locations where durability is paramount. With a nominal SWR of 1.5:1 at 156.8 MHz and a bandwidth of 3 MHz within a 2:1 VSWR, this antenna provides reliable performance across the VHF marine band. Designed for up to 100 watts maximum input power and featuring DC grounding, it ensures safety and efficiency during operation. Backed by a 5-year limited warranty, the Shakespeare Galaxy 5226-XT is a high-quality, reliable antenna that enhances communication clarity and range for marine enthusiasts and professionals alike.

Features:

• Collinear-phased 5/8 wave elements for optimal signal range

• Brass and copper elements for maximum efficiency and durability

• Stainless steel ferrule with standard 1"-14 thread for secure mounting

• 20-foot low-loss RG-8/X cable with PL-259 connector included

• Suggested mount: Shakespeare Style 4187 Ratchet Mount for flexible installation

• One-section design for easy handling and setup

• Extra tough radome designed to withstand high winds and speeds

• Sleek gloss black finish for aesthetic appeal and corrosion resistance

• Rated for up to 100 watts maximum input power

• Designed for VHF Marine Band with a gain of 6 dB
