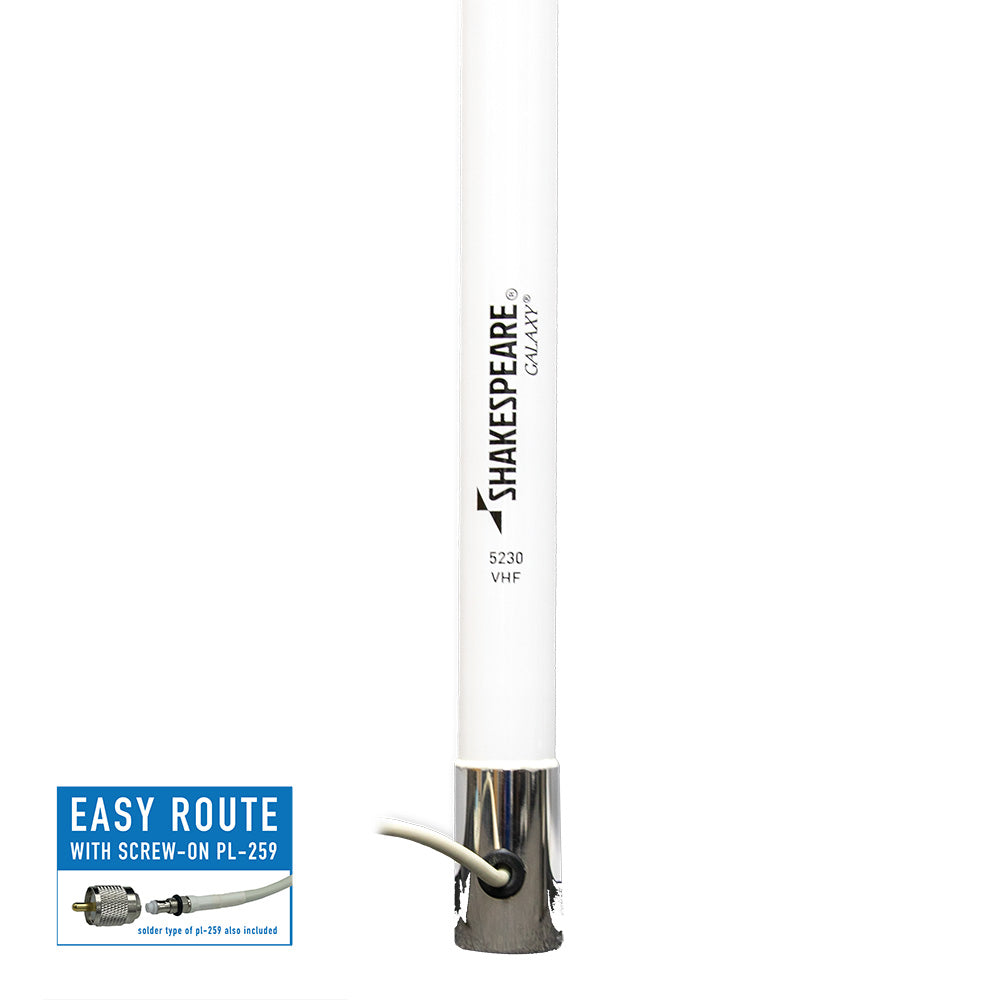

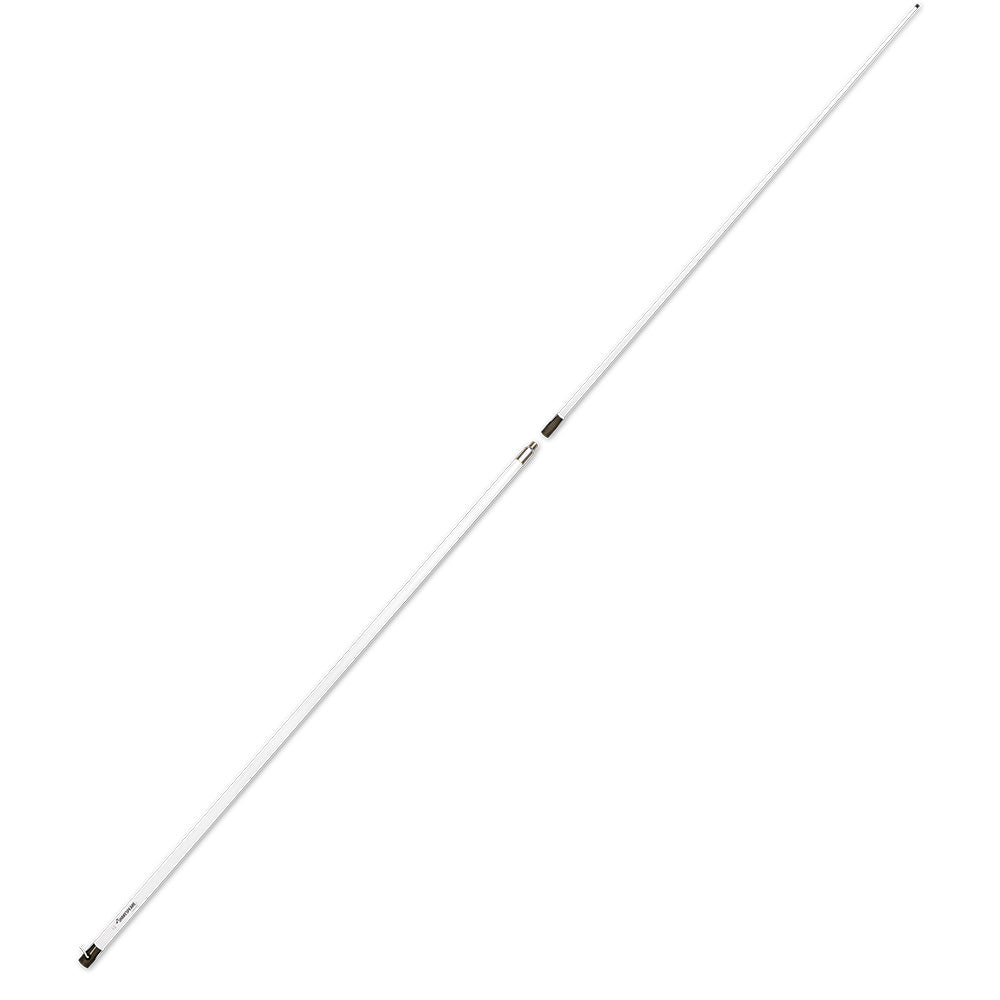

Shakespeare Galaxy 5230 14' VHF Marine Antenna with 8dB Gain

Galaxy 5230 14' VHF Antenna - 8dB Gain

The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.

Features:

• 5/8 wave over 1/2 wave dipole
• Brass and copper elements for maximum range and efficiency
• Stainless steel ferrule with standard 1"-14 thread
• Includes 20 feet of RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit

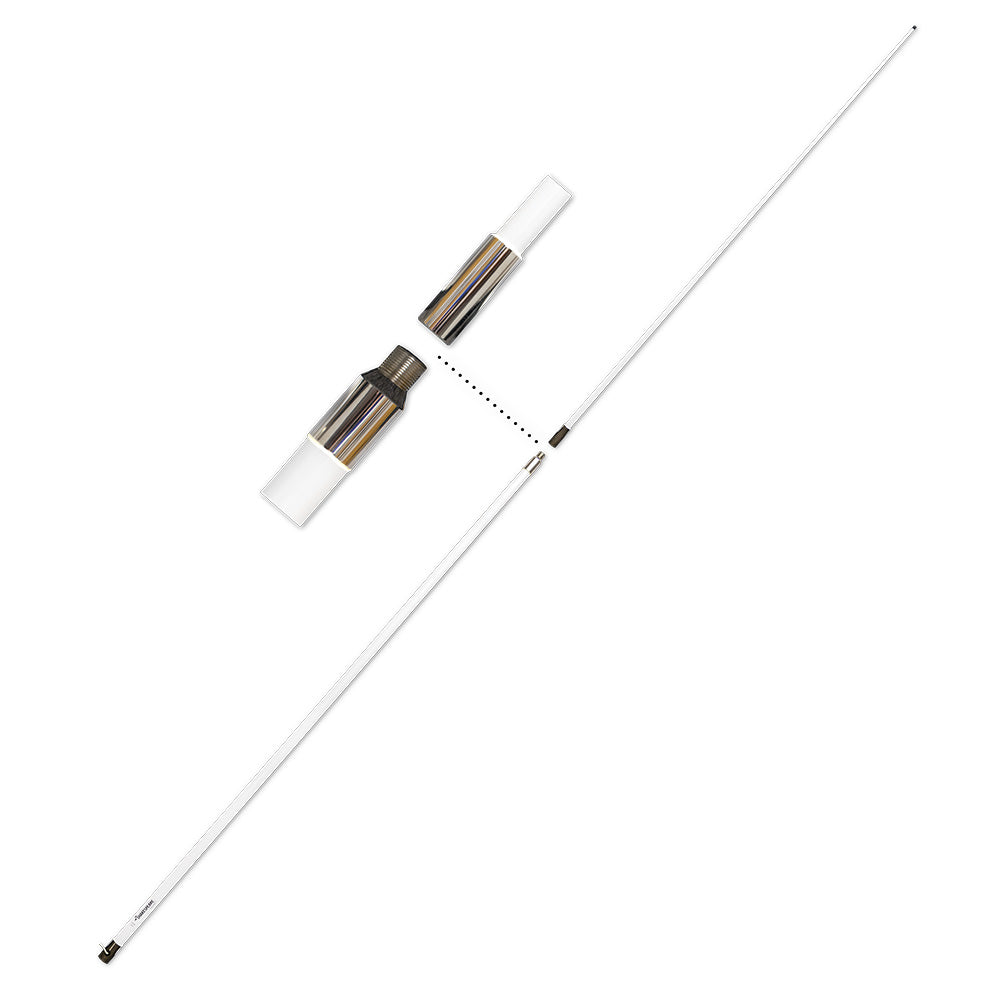

• Two sections: Base 94", Tip 74" -
• Shakespeare Limited Warranty: 5 years

Technical Specifications:

• Frequency: VHF Marine Band
• Bandwidth: 3 MHz within 2.0:1 VSWR
• SWR: Nominally 1.5:1 at 156.8 MHz
• Impedance: 50 ohms
• Gain: 8 dB
• Max Input (Watts): 200 watts
• DC Ground: YES
• Height (feet): 14
• Polarization: Vertical

The Shakespeare Galaxy 5230 is a high-performance 14-foot VHF marine antenna designed for optimal signal reception and transmission. Featuring an 8dB gain, this antenna offers enhanced range and clarity for marine communication. Its durable construction includes brass and copper elements, ensuring maximum efficiency and longevity in demanding marine environments. The stainless steel ferrule with a standard 1"-14 thread allows for secure and easy mounting, compatible with Shakespeare Style 409-R or 410-R mounting kits. This antenna comes with 20 feet of RG-8/X cable and a PL-259 connector, simplifying installation and setup. Its two-section design, comprising a 94-inch base and a 74-inch tip, provides a balanced combination of height and stability for reliable performance. The Galaxy 5230 is built to operate within the VHF Marine Band, with a bandwidth of 3 MHz and a nominal SWR of 1.5:1 at 156.8 MHz, ensuring clear communication channels with minimal signal loss. It handles up to 200 watts of input power, making it suitable for a wide range of marine applications. The antenna's vertical polarization and 50-ohm impedance facilitate optimal signal alignment and transmission efficiency. Backed by a 5-year limited warranty from Shakespeare, the Galaxy 5230 combines robust construction with excellent performance for marine enthusiasts seeking dependable VHF communication.

Features:

• 5/8 wave over 1/2 wave dipole for enhanced signal capture

• Brass and copper elements for maximum range and efficiency

• Stainless steel ferrule with standard 1"-14 thread for secure mounting

• Includes 20 feet of RG-8/X cable and PL-259 connector for easy setup

• Two-section design with a total height of 14 feet for optimal performance

• Suitable for use with Shakespeare Style 409-R or 410-R mounting kits

• Designed for VHF Marine Band with a bandwidth of 3 MHz within 2.0:1 VSWR

• Operates at a nominal SWR of 1.5:1 at 156.8 MHz for clear communication

• Handles up to 200 watts of input power for versatile marine applications

• Vertical polarization with 50-ohm impedance for efficient signal transmission
