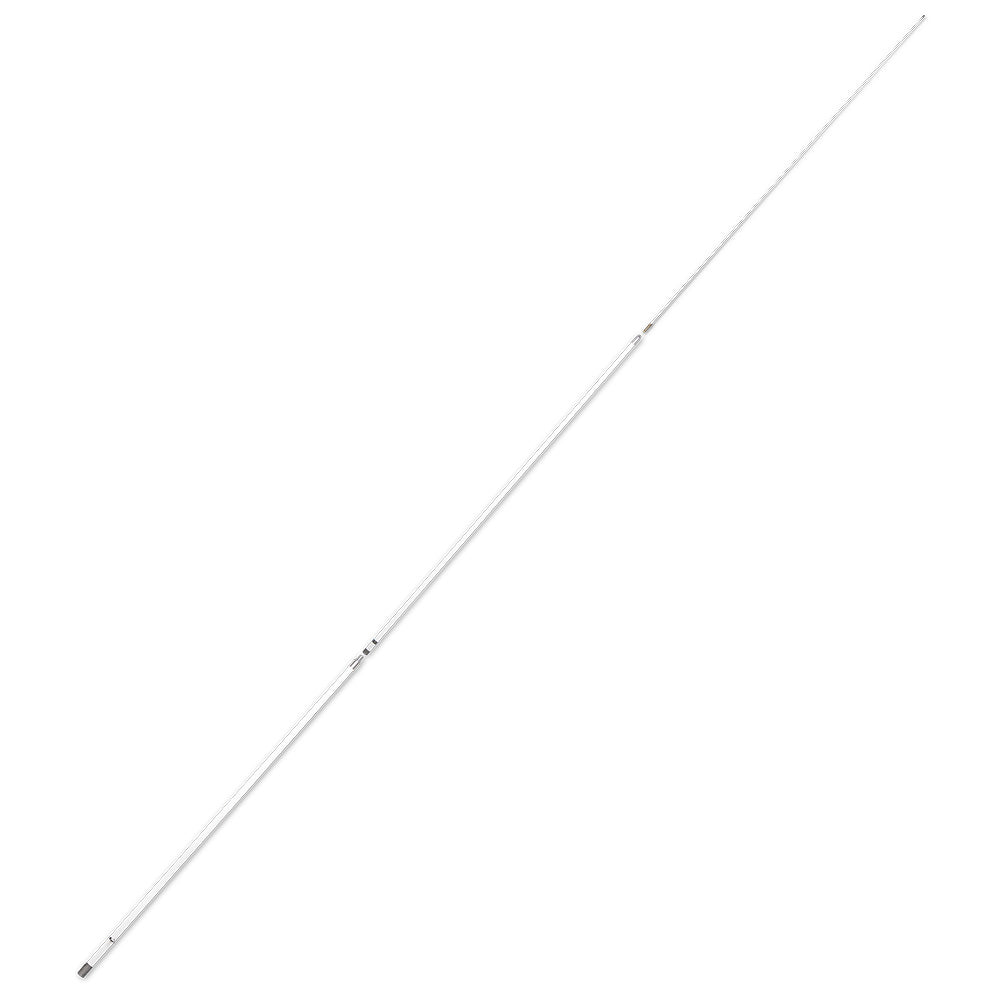

Shakespeare Style 393 23' Single Side Band HF Antenna for Marine VHF Communications

Shakespeare Style 393 SSB
23' LENGTH

WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)

The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm to moderate seas.

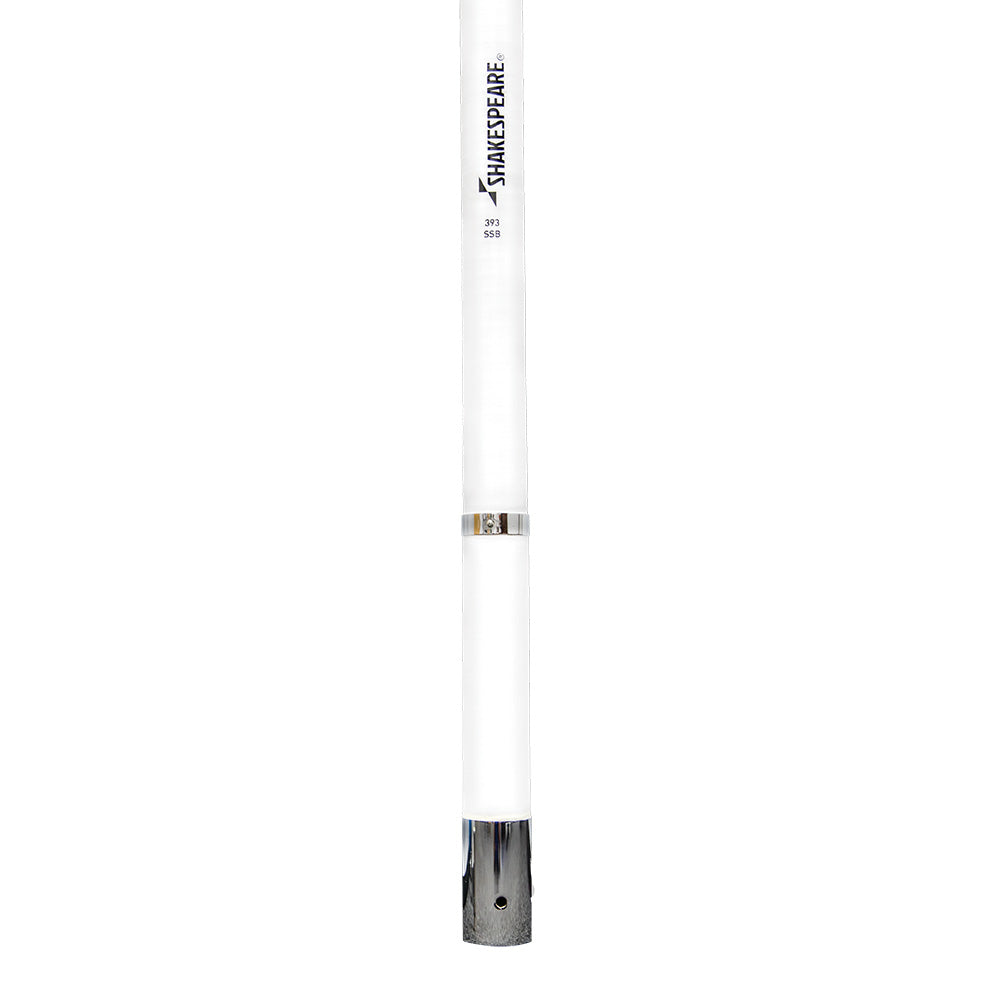

• Chrome-plated brass ferrules, bottom ferrule has 1-14 thread

• Side feed termination band

• Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting

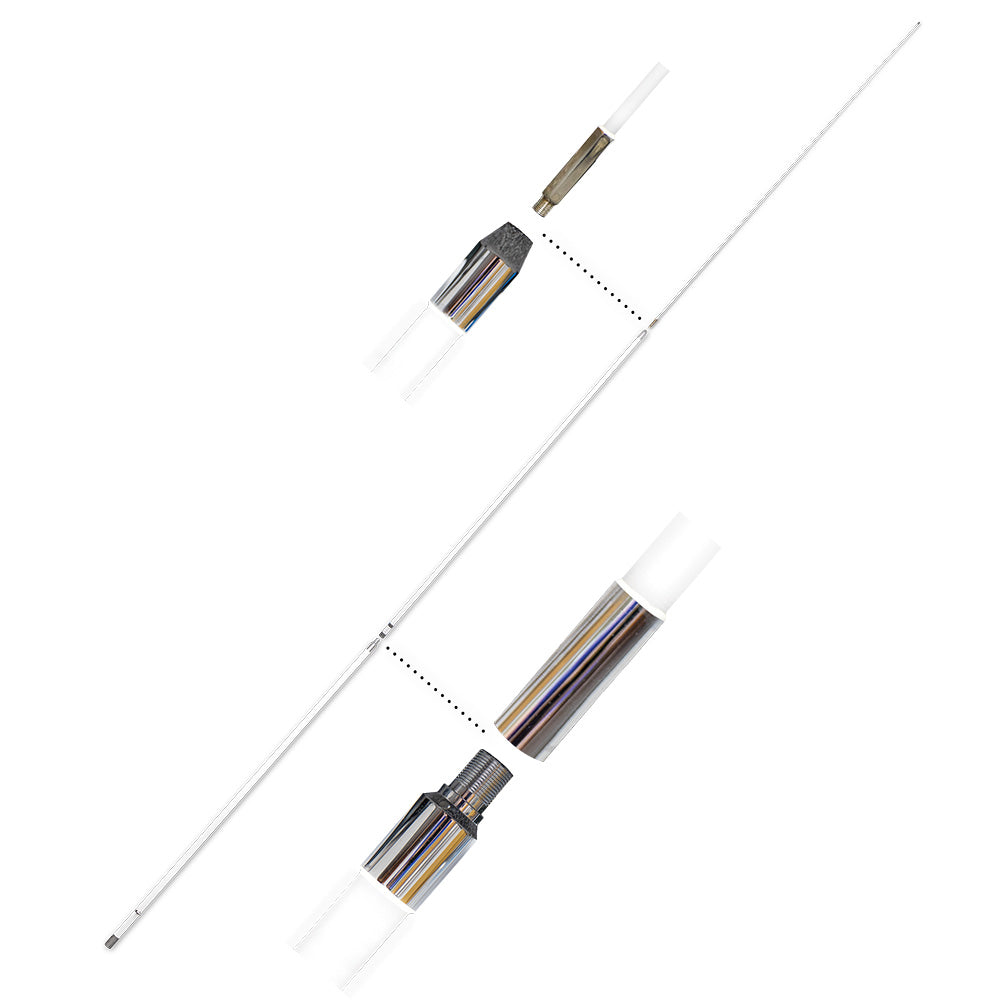

• Three sections: Base 92; Center 92; Tip 92

• Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	2-30 MHz HF band with tuner
Bandwidth:	Resonant frequency 10.8 MHz
SWR:	N/A
Impedance:	(Ohms): N/A
Gain:	N/A
Max Input (Watts):	1000
DC Ground:	N/A
Termination:	Side Termination
Height (feet):	23
Polarization:	Vertical
Radiation pattern:	Omni-directional

The Shakespeare Style 393 SSB is a 23-foot whip antenna designed for use in calm to moderate sea conditions, providing reliable HF band communication. Crafted with a full-length conductors running along the whip without loading coils, this antenna ensures optimal signal transmission and reception across the 2-30 MHz HF band, making it suitable for a variety of marine communication needs. Its durable construction features chrome-plated brass ferrules, with the bottom ferrule threaded for easy mounting, typically using the Shakespeare Style 409-R or 410-R mounting kits for deck or side installation. The three-section design — base, center, and tip, each 92 inches in length — allows for flexibility and ease of installation while maintaining structural integrity. The side feed termination band simplifies connection to your radio system and ensures a secure, stable setup. With a maximum input capacity of 1000 watts, the Style 393 is capable of handling high-power transmissions, making it ideal for demanding marine environments. The antenna's vertical polarization and omni-directional radiation pattern provide broad coverage, ensuring consistent communication regardless of your vessel's orientation. Designed for durability and longevity, the Shakespeare Style 393 comes with a two-year limited warranty, offering peace of mind for marine operators who depend on reliable communication tools. This antenna's robust construction and versatile mounting options make it an excellent choice for recreational boaters and professional mariners alike, seeking dependable HF communication performance at sea.

Features:

• Full-length conductors running the entire whip for efficient signal transmission

• Chrome-plated brass ferrules with threaded bottom ferrule for secure mounting

• Side feed termination band for easy connection to radio systems

• Three-section design (base, center, tip) for flexible installation

• Suitable for use in calm to moderate sea conditions

• Operates across 2-30 MHz HF band with tuner compatibility

• Maximum wattage capacity of 1000 watts for high-power transmissions

• Vertical polarization with omni-directional radiation pattern for broad coverage

• Designed for durable marine use with a 2-year limited warranty
