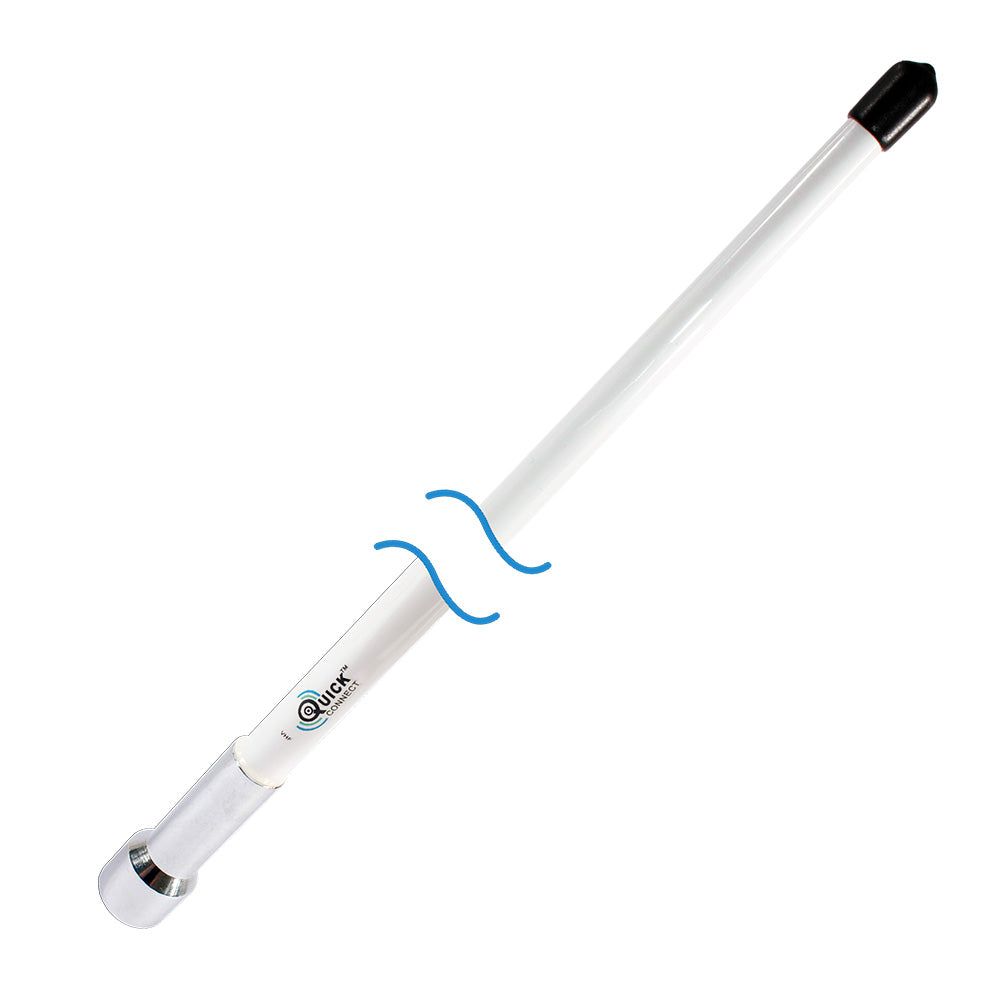

Shakespeare VHF 4' QuickConnect 3dB Antenna for QCM Series Mounts

VHF 4' QuickConnect 3dB for QCM Series Mounts

QuickConnect antennas stem from the popularity of the quick connecting feature on Shakespeare's high-end Phase III marine antennas, the QuickConnect product line brings you the ease of connecting and disconnecting your marine antenna in a more affordable line-up.

Features:

• QuickConnect System - Screw or unscrew the antenna to disconnect or connect
• Splash Protection Cap - Protects the connector on the mount when the antenna is disconnected
• Centerpin PL-259 Connector - An easy crimp-on connector
• Base connector included for use with QuickConnect mounts only
• Single Section antennas with VSWR of <1.5:1 at 156.8 MHz
• Maximum input power of 50W
• The bandwidth of 5 MHz within 2.0:1 VSWR
• Does not contain a built-in DC ground connection

The Shakespeare VHF 4-foot QuickConnect 3dB antenna offers a reliable and user-friendly solution for marine communication needs. Designed specifically for the QCM series mounts, this antenna features the innovative QuickConnect system, allowing you to easily screw or unscrew the antenna for quick installation or removal. This design simplifies maintenance and enhances convenience during marine operations. The splash protection cap safeguards the connector on the mount when the antenna is disconnected, ensuring durability and resistance to water ingress. Equipped with a centerpin PL-259 connector, the antenna provides a secure and easy crimp-on connection, suitable for various marine communication setups. The antenna is engineered to operate with a VSWR of less than 1.5:1 at 156.8 MHz, ensuring efficient signal transmission and reception. With a maximum input power capacity of 50W, it is suitable for most marine VHF applications. Its bandwidth spans approximately 5 MHz within a 2.0:1 VSWR range, offering stable performance across relevant frequencies. Please note that this antenna does not contain a built-in DC ground connection, which may require additional grounding for optimal performance. The Shakespeare VHF QuickConnect antenna combines ease of use, durability, and performance, making it an excellent choice for boaters seeking a reliable communication antenna that is simple to install and maintain.

Features:

• QuickConnect System: Screw or unscrew the antenna for easy connection and disconnection

• Splash Protection Cap: Protects the connector on the mount when the antenna is disconnected

• Centerpin PL-259 Connector: An easy crimp-on connector for secure attachment

• Base connector included for use with QuickConnect mounts

• Single Section design with VSWR under 1.5:1 at 156.8 MHz for efficient signal transmission

• Maximum input power of 50W suitable for marine VHF applications

• Bandwidth of approximately 5 MHz within a 2.0:1 VSWR range

• Does not include a built-in DC ground connection, additional grounding may be required
