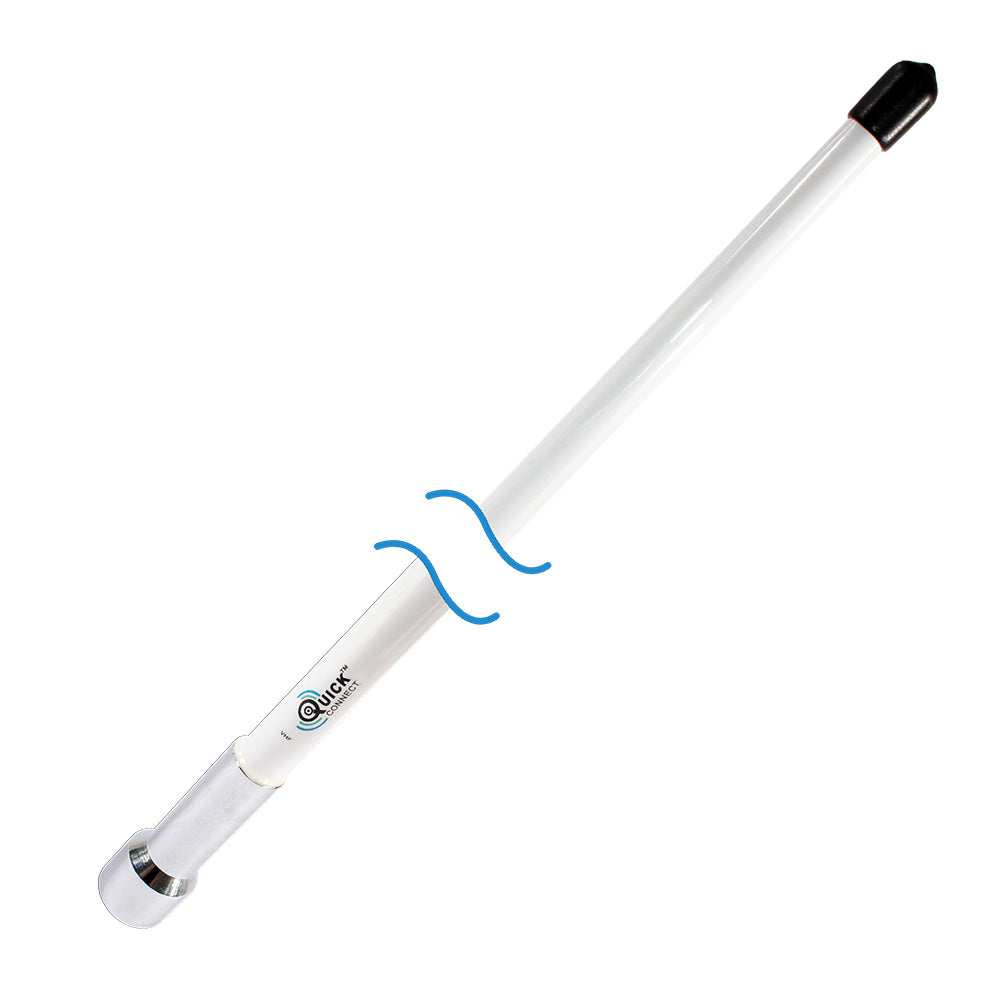

Shakespeare VHF 8' QuickConnect 6dB Antenna for QCM Series Mounts

VHF 8' QuickConnect 6dB for QCM Series Mounts

QuickConnect antennas stem from the popularity of the quick connecting feature on Shakespeare's high-end Phase III marine antennas, the QuickConnect product line brings you the ease of connecting and disconnecting your marine antenna in a more affordable line-up.

Features:

• QuickConnect System - Screw or unscrew the antenna to disconnect or connect
• Splash Protection Cap - Protects the connector on the mount when the antenna is disconnected
• Centerpin PL-259 Connector - An easy crimp-on connector
• Base connector included for use with QuickConnect mounts only
• Single Section antennas with VSWR of <1.5:1 at 156.8 MHz
• Maximum input power of 50W
• The bandwidth of 5 MHz within 2.0:1 VSWR
• Does not contain a built-in DC ground connection

The Shakespeare VHF 8' QuickConnect 6dB antenna provides a reliable and easy-to-use solution for marine communications. Designed specifically for the QCM Series mounts, this antenna features a quick connect system that allows you to screw or unscrew the antenna effortlessly, simplifying installation and removal. The splash protection cap safeguards the connector on the mount when the antenna is disconnected, ensuring durability and longevity in marine environments. Built with a centerpin PL-259 connector, this antenna offers a straightforward crimp-on installation, making setup quick and hassle-free. The single-section design maintains a VSWR of less than 1.5:1 at 156.8 MHz, ensuring efficient signal transmission with minimal power loss. With a maximum input power of 50W, it is suitable for a variety of marine VHF communication needs. The antenna's bandwidth spans 5 MHz within a 2.0:1 VSWR, providing stable performance across relevant frequencies. Please note that this model does not include a built-in DC ground connection, which may be a consideration depending on your system requirements. Overall, the Shakespeare VHF 8' QuickConnect antenna combines ease of use, durability, and solid performance, making it an excellent choice for boaters and marine enthusiasts seeking reliable communication equipment.

Features:

• QuickConnect System: Screw or unscrew the antenna for quick connection and disconnection

• Splash Protection Cap: Protects the connector on the mount when the antenna is not attached

• Centerpin PL-259 Connector: Easy crimp-on connector for hassle-free installation

• Base connector included: Designed for use with QCM series QuickConnect mounts

• Single Section Design: Maintains a VSWR of less than 1.5:1 at 156.8 MHz

• Power Handling: Supports up to 50W maximum input power

• Bandwidth: 5 MHz within 2.0:1 VSWR for stable performance

• Note: Does not contain a built-in DC ground connection
