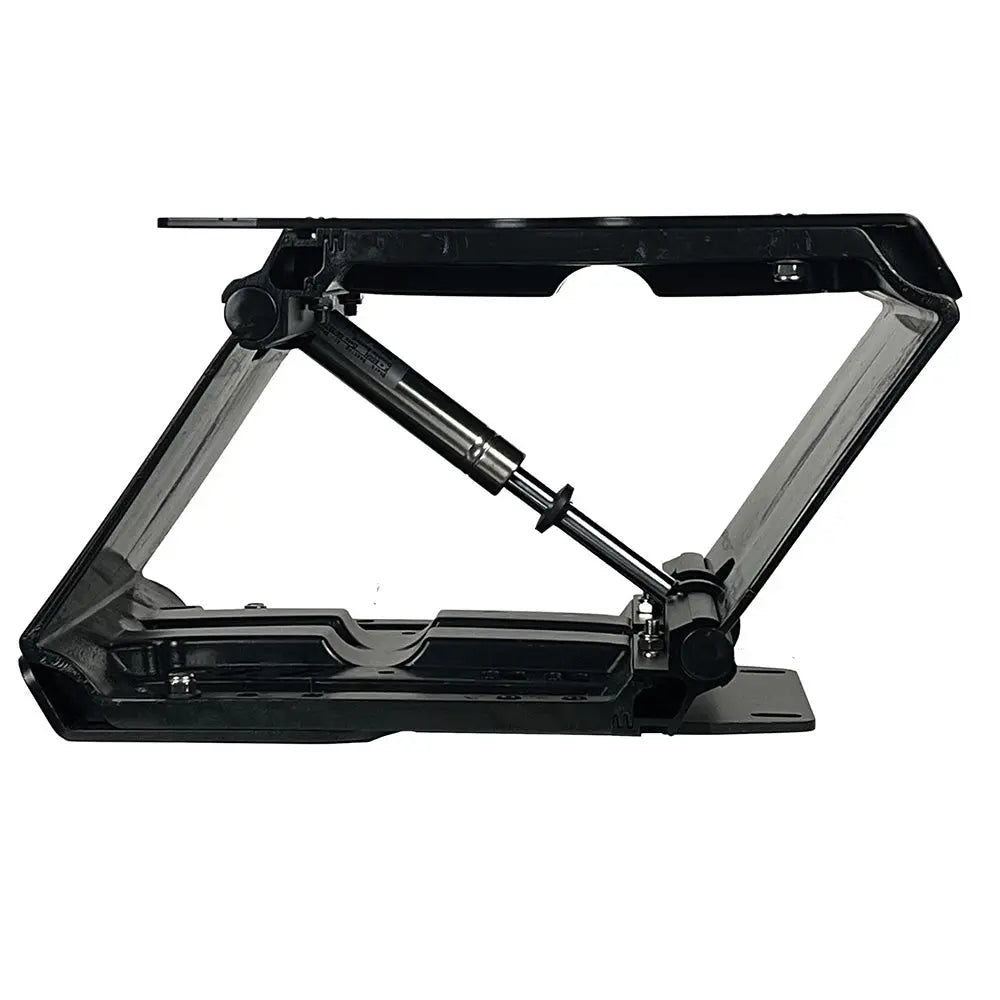

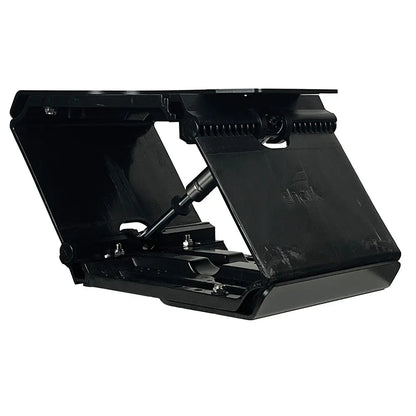

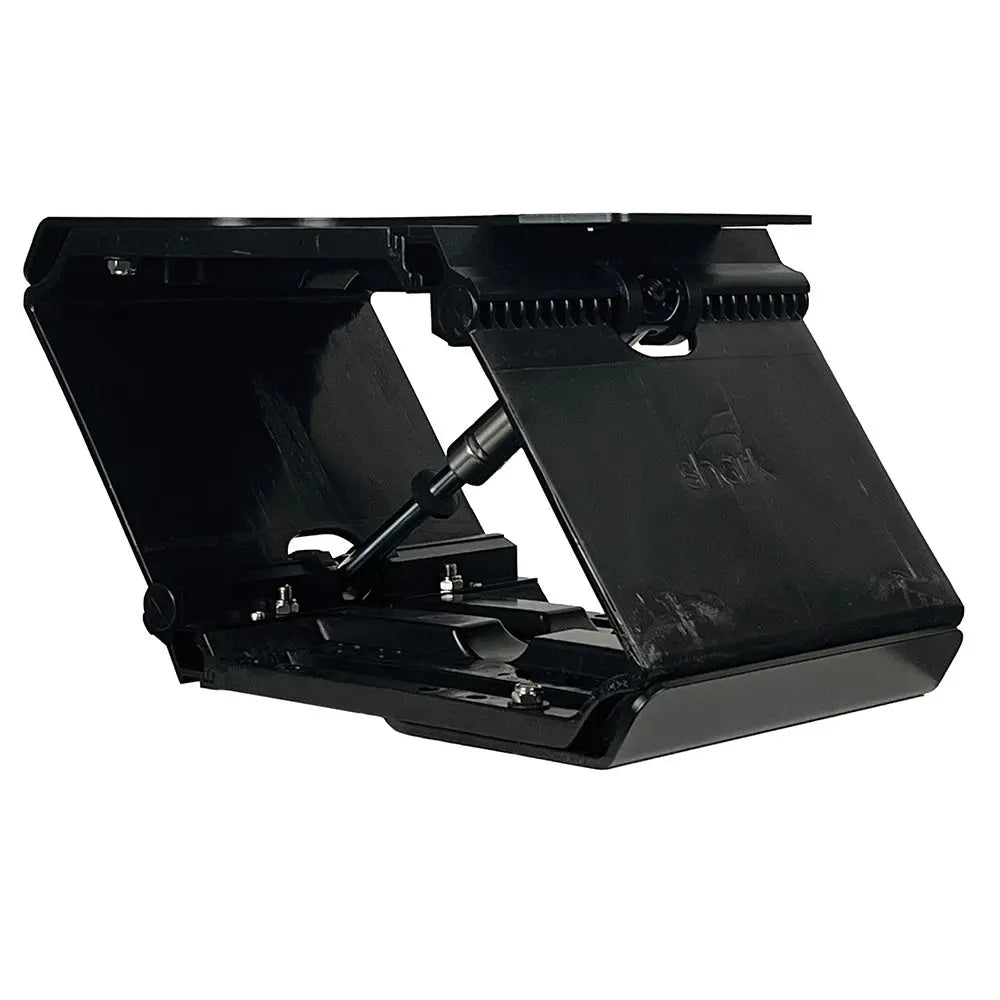

Shark Seating FLEXpod HD Suspension with Firmer Shock and Stiffener – Heavy-Duty Marine Suspension System

FLEXpod HD Suspension with Firmer Shock Stiffener

Toughened weight-saving HD stands for heavy-duty. 2 alloy plates are added to stiffen the suspension to allow for approved 3rd party seats. Available complete or as an upgrade kit.

Specifications:

• Weight: 4.3kg/9.5lbs
• Impact Protection: 6g
• Weight Capacity: 100kg/220lbs
• Travel: 150mm/6

Specifications of the FLEX suspension unit:

• Simplicity: has only 3 unique parts
• Compatible with most third-party seats and attachments (including swivels) as well as Shark seats
• 225mm of progressive and ULTRA-SMOOTH travel
• Light: Only 9kg (20lb)
• 450mm overall height
• Compact: 300mm wide, 350mm deep
• Less fatigue: From 3-axis shock mitigation eliminates whiplash and takes stress off your body
• Non-corroding: soft-edged and non-marking, built with 316 stainless and Flexanite
• Super low maintenance
• Tested: 1 Million full 10g impacts
• Crash test rating: To HSC2000 Annex 10 requirements
• 3-year global manufacturers warranty on all parts
• Independent tests reveal that Flex outperformed a well-known European brand
• Easy one-man installation
• Easily repairable: the shock can be replaced in under 2 minutes by one person
• Suspension can be bolted directly to your deck with 8 bolts (minimum)

The Shark Seating FLEXpod HD Suspension with Firmer Shock and Stiffener offers a robust and lightweight solution designed for demanding marine environments. Engineered with toughened alloy plates, this heavy-duty suspension system provides enhanced stiffness, ensuring stability and safety when accommodating approved third-party seats, including swivels and Shark seats. Its modular design features only three unique parts, simplifying installation and maintenance while maintaining high durability. This system is compatible with most third-party seating attachments, making it versatile for various vessel configurations. The 150mm (6 inches) of ultra-smooth, progressive travel absorbs impacts effectively, reducing fatigue and stress on the operator during long hours of operation. Weighing only 9.5 pounds, this suspension unit is engineered to be both strong and lightweight, supporting up to 220 pounds comfortably. The compact dimensions, with a height of 17.7 inches, width of 11 inches, and depth of 13.8 inches, make it suitable for various deck layouts without occupying excessive space. Its corrosion-resistant construction, utilizing 316 stainless steel and Flexanite coating, ensures longevity even in harsh marine conditions. The system has undergone rigorous testing, including 1 million impacts at 10g forces, and meets crash test standards per HSC2000 Annex 10 requirements. It features a 3-year global warranty and has been independently tested to outperform similar European brands. Designed for easy, one-person installation, the suspension can be bolted directly to your deck with a minimum of eight bolts, and the shock absorber is repairable in under two minutes. Whether upgrading an existing setup or installing a new seat, the Shark FLEXpod HD Suspension delivers reliable shock mitigation, improved comfort, and enhanced safety for marine applications.

Features:

• Heavy-duty construction with alloy stiffening plates for increased stiffness and safety

• Compatible with most third-party seats, swivels, and Shark seats

• 150mm (6 inches) of progressive, ultra-smooth travel for impact absorption

• Lightweight design weighing only 9.5 pounds (4.3kg) for easy handling and installation

• Compact profile with an overall height of 17.7 inches and footprint of 11 by 13.8 inches

• Corrosion-resistant materials including 316 stainless steel and Flexanite coating for durability in marine environments

• Reduced operator fatigue through 3-axis shock mitigation system

• Rigorous testing with 1 million impact cycles and crash test compliance

• Includes a 3-year global manufacturer’s warranty

• Simple, one-man installation process with bolting directly to deck surface

• Repairable shock absorber that can be replaced in under two minutes

• Designed for minimal maintenance and long-term reliable performance
