Shockwave Seats S5-AL Suspension Base - White for Enhanced Ride Comfort and Safety

S5-AL Suspension Base - White

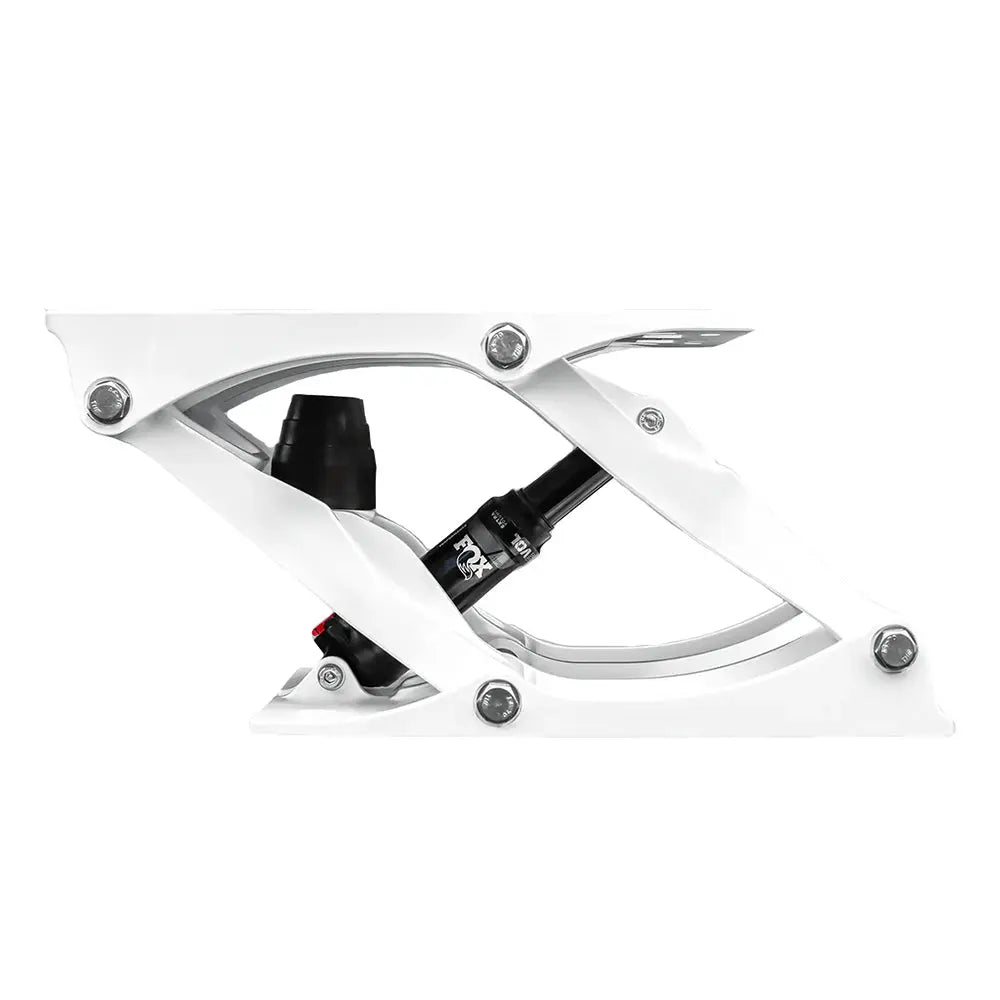

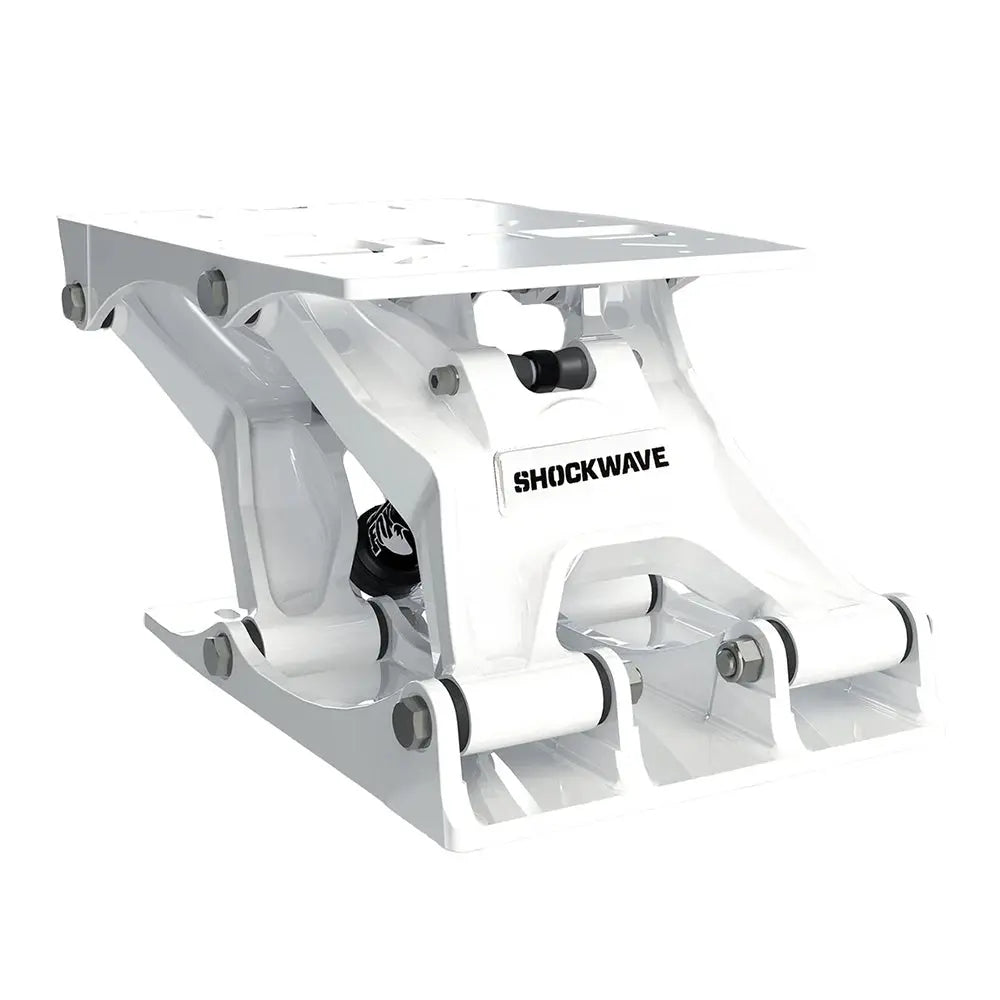

The Shockwave S5-AL suspension base (formerly the S5 Sentinel) provides comfort and safety to boaters, offering them an experience theyve never had before. It offers a smoother, safer, and more comfortable ride, protecting occupants from the shock of wave impact. Recreational boaters can stay out longer and travel farther with less fatigue. Made from anodized A360 cast aluminum that has been powder-coated and fitted with 316 stainless steel hardware, the S5-AL suspension base utilizes a four-link forward action suspension design.

Fitted with a FOX Rhythm air-sprung shock with adjustable rebound, suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impact.

A shock pump with a pressure gauge is included with your purchase at no extra cost.

Features:

• Designed and manufactured in Canada
• Custom-tuned and valved marine FOX Rhythm air spring and shock with adjustable rebound
• Surge protection: Suspension travel is 4-inch vertical and 1.5-inch forward, mitigating deceleration associated with wave impacts
• 4-Link Forward Action
• Anodized A360 Cast Aluminum, 316 SS Hardware, Powder Coated
• Minimal parts count and simple construction
• Easy to mount and adapt to the current seating

Vessel Application:

The S5-AL suspension base is most often found on fishing boats, coastal cruisers, ski/wake boats, guide boats, fisheries boats, whale watching boats, crew boats and yacht tenders. Due to its universal design, the S5-AL can be fitted to almost any boat and any seat.

The Shockwave Seats S5-AL suspension base (Part Number: SW-07823-W) offers boaters an advanced solution for smoother and safer rides. Crafted from durable anodized A360 cast aluminum with a powder-coated finish and fitted with corrosion-resistant 316 stainless steel hardware, this suspension base is built to withstand marine environments. Its four-link forward action suspension design, combined with a FOX Rhythm air-sprung shock featuring adjustable rebound, effectively absorbs wave impacts and mitigates deceleration, providing a more comfortable experience during extended outings. Suspension travel includes 4 inches vertically and 1.5 inches forward, ensuring optimal shock absorption across various sea conditions. The package includes a shock pump with a pressure gauge, allowing easy adjustment for personalized comfort and performance. This suspension base is designed for easy installation and compatibility with most boat seats, making it a versatile upgrade for fishing boats, coastal cruisers, ski and wake boats, guide vessels, fisheries boats, whale watching boats, crew vessels, and yacht tenders. Its minimal parts count and straightforward construction facilitate quick mounting and adaptation, reducing downtime and maintenance. Overall, the Shockwave S5-AL suspension base enhances safety and comfort, enabling boaters to stay out longer with less fatigue and enjoy a smoother ride in diverse marine settings.

Features:

• Designed and manufactured in Canada for quality assurance

• Custom-tuned and valved marine FOX Rhythm air spring and shock with adjustable rebound for personalized comfort

• Surge protection with 4-inch vertical and 1.5-inch forward suspension travel to mitigate wave impact deceleration

• Four-link forward action suspension design for effective shock absorption

• Constructed from anodized A360 cast aluminum with powder coating and 316 stainless steel hardware for durability

• Minimal parts count and simple construction for ease of installation and maintenance

• Easy to mount and adapt to most boat seats for versatile application
