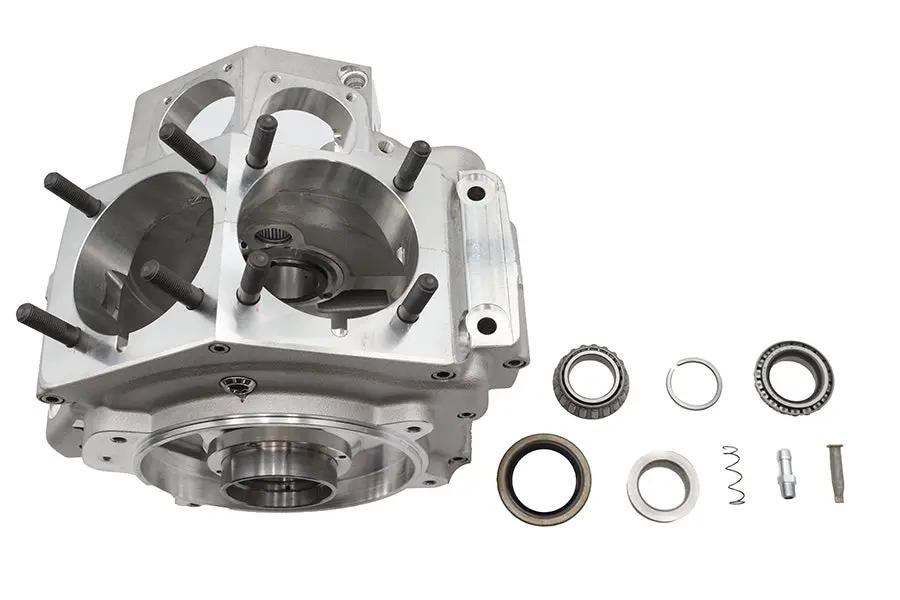

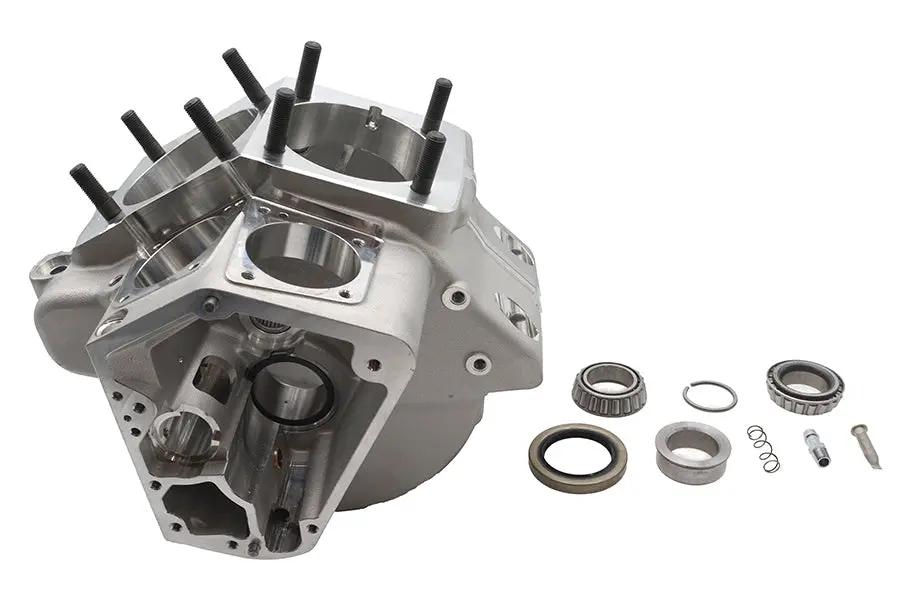

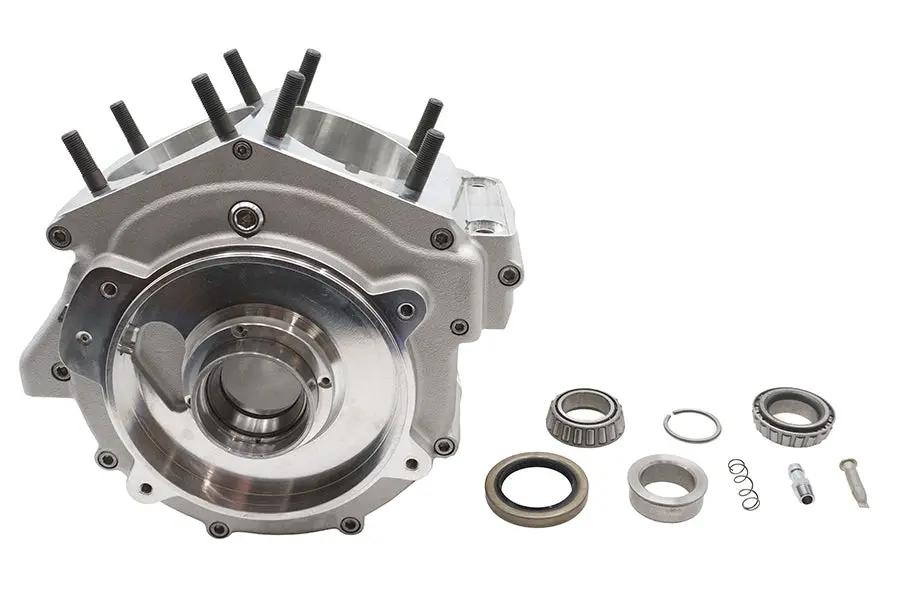

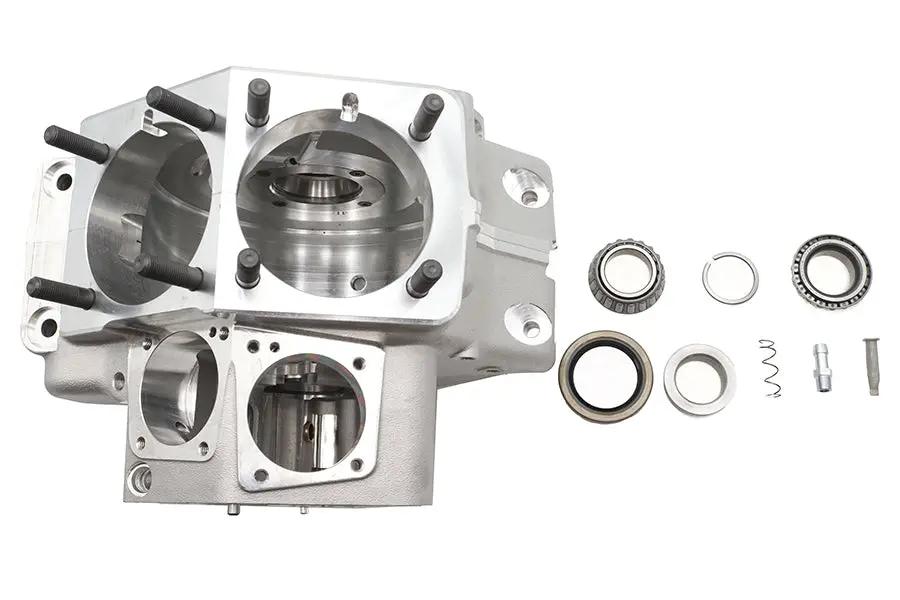

Ultima Shovelhead Engine Case Set — Natural Finish, 5 Piece

Ultima’s Shovelhead Engine Case Set in a natural finish provides a complete, ready-to-build foundation for Harley-Davidson FL and FX models from 1970 through 1984. The case features a 3.625" bore case and supports a 96" big bore setup that uses the 1992+ oil pump.

• Large bore breather for increased crankcase vacuum and less blow-by.
• 5 piece flywheel design with its pinion race sized to 1.751" and the 'white' pinion bearing.
• Set includes main bearings installed; chromoly cylinder studs; main seal spacer; chrome timing hole plug.
• Case counterbores for socket head bolts; stainless socket head case bolts; alignment dowels for true line bore.
• Top end feed screen with spring; oil pressure gauge.
• Part number 206-21.
• Fitment: Harley Davidson FL 1970–1984; Harley Davidson FX 1970–1984.

Shovelhead Ultima engine case set features a natural finish and a 5 piece flywheel design. Engine case features large bore breather for increased crank case vacuum and less blow by.
5 piece wheel design have thier pinion race sized to 1.751 inch and utilize the 'white' pinion bearing. Set includes main bearings installed chromoly cylinder studs main seal spacer chrome timing hole plug case counterbores for socket head bolts stainless socket head casebolts alignment dowels for true line bore top end feed screen with spring and the oil pressue gauge. Engine case features a 3.625 inch bore case. 96 inch big bore case uses 1992-up oil pump.

Fitment:
Harley Davidson FL 1970
Harley Davidson FL 1971
Harley Davidson FL 1972
Harley Davidson FL 1973
Harley Davidson FL 1974
Harley Davidson FL 1975
Harley Davidson FL 1976
Harley Davidson FL 1977
Harley Davidson FL 1978
Harley Davidson FL 1979
Harley Davidson FL 1980
Harley Davidson FL 1981
Harley Davidson FL 1982
Harley Davidson FL 1983
Harley Davidson FL 1984
Harley Davidson FX 1970
Harley Davidson FX 1971
Harley Davidson FX 1972
Harley Davidson FX 1973
Harley Davidson FX 1974
Harley Davidson FX 1975
Harley Davidson FX 1976
Harley Davidson FX 1977
Harley Davidson FX 1978
Harley Davidson FX 1979
Harley Davidson FX 1980
Harley Davidson FX 1981
Harley Davidson FX 1982
Harley Davidson FX 1983
Harley Davidson FX 1984
