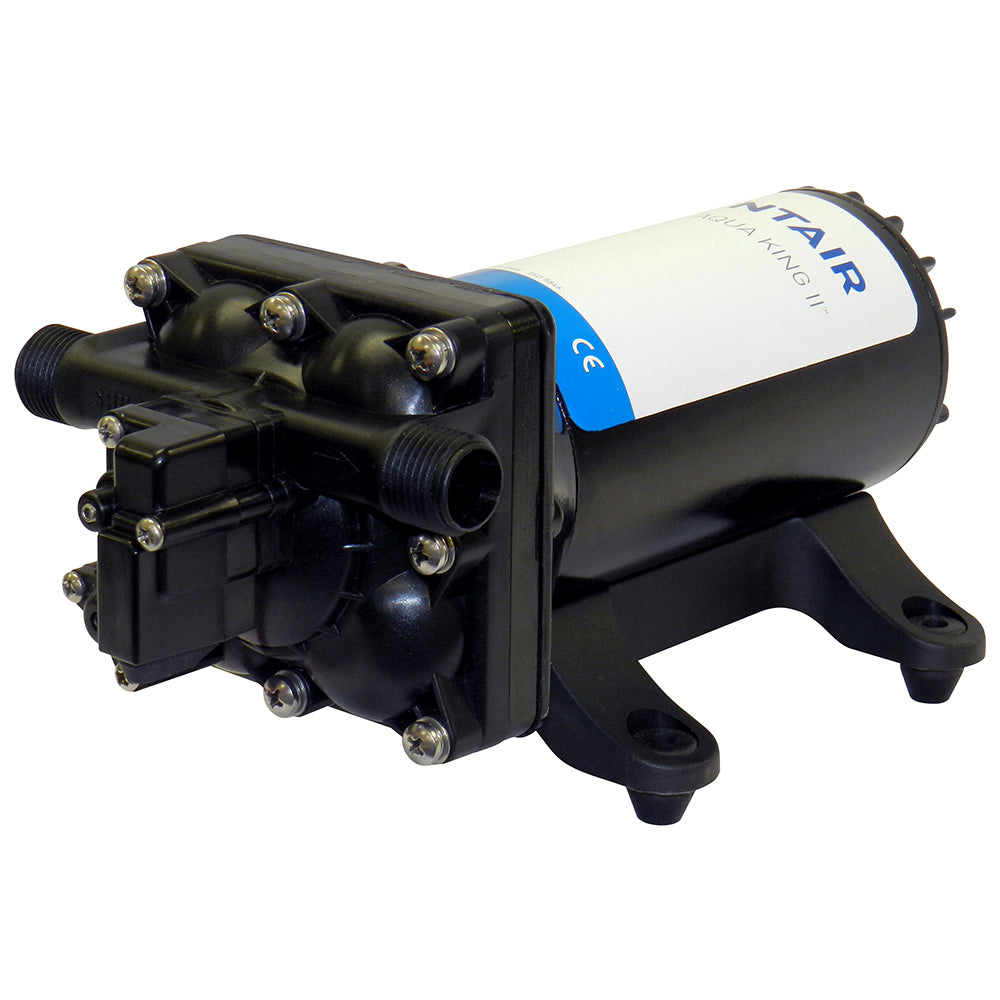

Shurflo by Pentair AQUA KING II Supreme 5.0 24VDC Fresh Water Pump with Strainer and Fittings

AQUA KING II Supreme 5.0 (24VDC) Fresh Water Pump w/Strainer Fittings

SHURFLOs AQUA KING II Fresh Water Pumps are designed for boats with multi-fixtures providing Just like home shower pressure, and can operate at lower flow conditions without cycling. A built in mechanical bypass function enables these pumps to vary the flow rate for any on demand condition, without the need for an accumulator. With heavy duty motors built to withstand the tough marine environment these motors feature an electro-coated seamless shell motor, O-ring sealed end bells, and complete sealed wire entries on the motor shell and pressure switch. The AQUA KING II Fresh Water Pumps can run dry without damage. Inlet strainer and hose barb fittings are included. (aftermarket models only). Ignition protected. Thermally protected. 3 Year Warranty

Features:

• Sealed Switch
• Sealed Motor
• Corrosion Resistant Electro
• Coated Motor
• Independent Chambers
• Built-in Check Valve
• Co-Molded Diaphragm
• Adjustable Switch By-Pass
• Self-Priming up to 6 Feet
• Dry Run Capability
• Thermally Protected
• Ignition Protected, CE

Specifications:

• 24 VDC
• 5.0 GPM [18.9 LPM]
• 7 Amps (Max.)
• 55 PSI [3.8 BAR]
• Intermittent Duty
• Multi-fixture Applications
• 1/2 NPS-M Inlet/Outlet

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Shurflo by Pentair AQUA KING II Supreme 5.0 24VDC Fresh Water Pump is engineered for reliable freshwater delivery on boats, providing the same pressure as a home shower system. Its advanced design allows it to operate efficiently at low flow conditions without cycling, thanks to a built-in mechanical bypass that adjusts flow rates seamlessly for on-demand use. This feature eliminates the need for an additional accumulator, ensuring smoother operation and extended pump life. The pump's heavy-duty motor is constructed with an electro-coated seamless shell, O-ring sealed end bells, and fully sealed wire entries, making it highly resistant to the corrosive marine environment. The pump can run dry without sustaining damage, offering enhanced durability in various operating conditions. Included with the pump are an inlet strainer and hose barb fittings, simplifying installation and maintenance. Its ignition protection and thermal protection features make it suitable for demanding marine applications, ensuring safety and longevity. The AQUA KING II is ideal for multi-fixture applications, capable of delivering up to 5 gallons per minute at 55 PSI, with a maximum draw of 7 amps. Its self-priming capability up to 6 feet ensures quick startup, and the adjustable switch bypass allows fine-tuning of flow rates to match specific needs. Designed for intermittent duty, this pump is suitable for various freshwater systems on boats, providing consistent pressure and performance. The compact size and robust construction make it a reliable choice for marine water systems requiring durability, efficiency, and safety. Backed by a 3-year warranty, the Shurflo AQUA KING II Supreme 5.0 is a trusted solution for onboard freshwater management, combining advanced features with proven performance.

Features:

• Sealed switch for added safety

• Sealed motor to prevent corrosion

• Corrosion-resistant electro coating

• Motor with electro-coating for durability

• Independent chambers for reliable operation

• Built-in check valve to prevent backflow

• Co-molded diaphragm for durability

• Adjustable switch bypass for flow control

• Self-priming up to 6 feet for easy startup

• Dry run capability without damage

• Thermally protected motor for safety

• Ignition protected and CE certified
