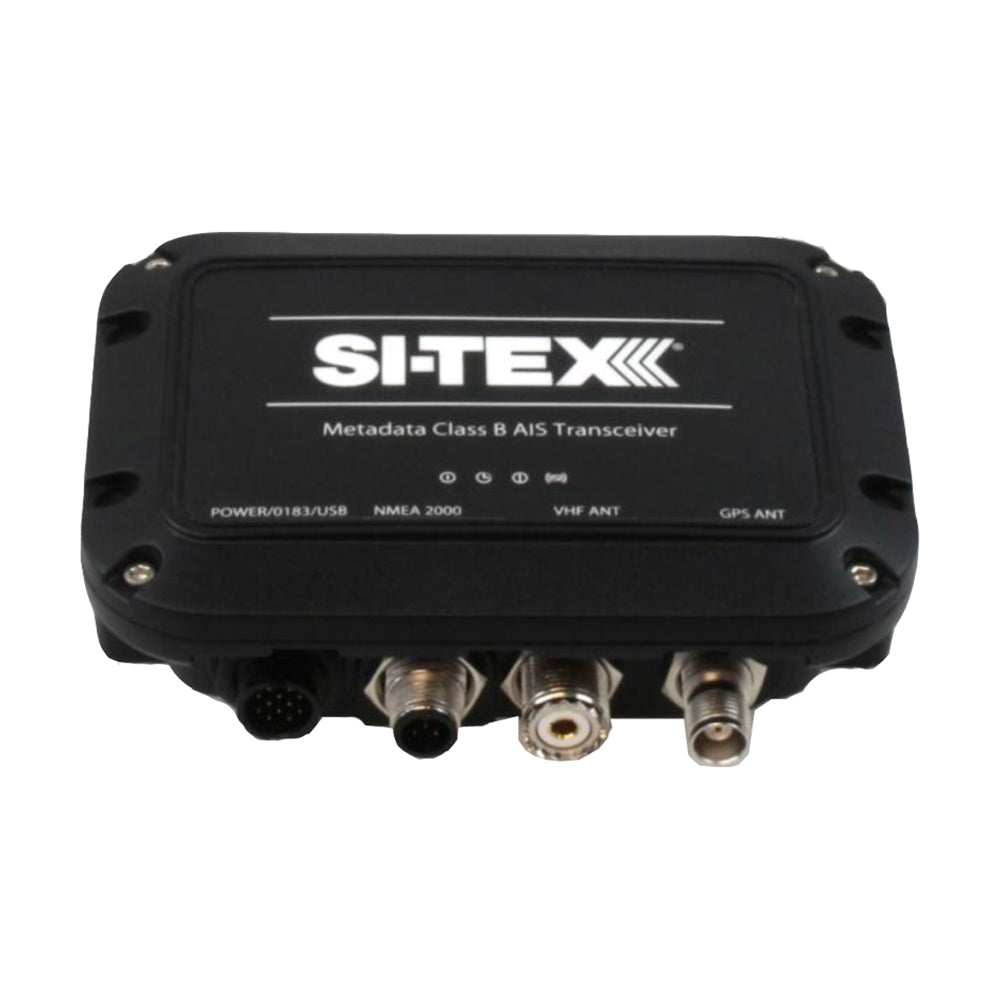

SI-TEX MDA-1 Metadata Class B AIS Transceiver with Internal GPS for Marine Vessels

MDA-1 Metadata Class B AIS Transceiver

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owners signature on the completed programming form.**

Click here to download form.

Utilizes a compact (5.5X3.9X1.9) module that is IPx7 Waterproof rated, for flexible location and rugged performance in any marine environment.

Class B AIS Transceiver featuring an Rmax Class B engine that provides maximum range and efficient real-time AIS message processing for all message types. Despite its compact size, the Metadata Class B Transceiver features an internal 50-channel GPS smart antenna, eliminating the need for an external GPS antenna in many installations. It also features NMEA0183, NMEA2000 and USB connectivity for easy plug-and-play installations on recreational or commercial vessels wanting to send and receive AIS data.

Unit will need to be mounted with a clear view of the sky to utilize the internal GPS antenna.

Specifications:

Power

• 12 to 24V DC
• Power consumption: 150mA @12VDC, <2W average

Data Interfaces

• USB
• NMEA2000
• IEC61162-1 (NMEA0183) output, 38400baud
• IEC61162-1 (NMEA0183) input, 4800baud
• Silent mode switch input

Supplied with

• 2m power and NMEA0183 cable
• User manual and quick start guide
• Product CD
• Fixing screws

The SI-TEX MDA-1 Metadata Class B AIS Transceiver offers reliable marine communication capabilities designed for both recreational and commercial vessels. Featuring a compact and rugged IPx7 waterproof module measuring approximately 5.5 x 3.9 x 1.9 inches, this transceiver is built to withstand harsh marine environments. Its small size allows flexible installation options while maintaining high performance. The device includes an integrated 50-channel GPS smart antenna, eliminating the need for an external GPS antenna in many setups, provided it has a clear view of the sky for optimal satellite reception. This feature ensures accurate positioning and seamless AIS data transmission in real-time, enhancing navigational safety and vessel tracking.

Features:

• Utilizes Rmax Class B engine for maximum range and efficient AIS message processing

• Integrated 50-channel GPS smart antenna for simplified installation

• IPx7 waterproof rating for durable performance in challenging marine conditions

• Multiple data interfaces including NMEA0183, NMEA2000, and USB for versatile connectivity

• Low power consumption of approximately 150mA at 12V DC, with under 2W average power use

• Easy installation with supplied 2-meter power and NMEA0183 cables, fixing screws, and user guides

• FCC compliance requiring professional programming with MMSI registration or FCC license

• Must be mounted with a clear sky view for GPS functionality and optimal AIS performance
