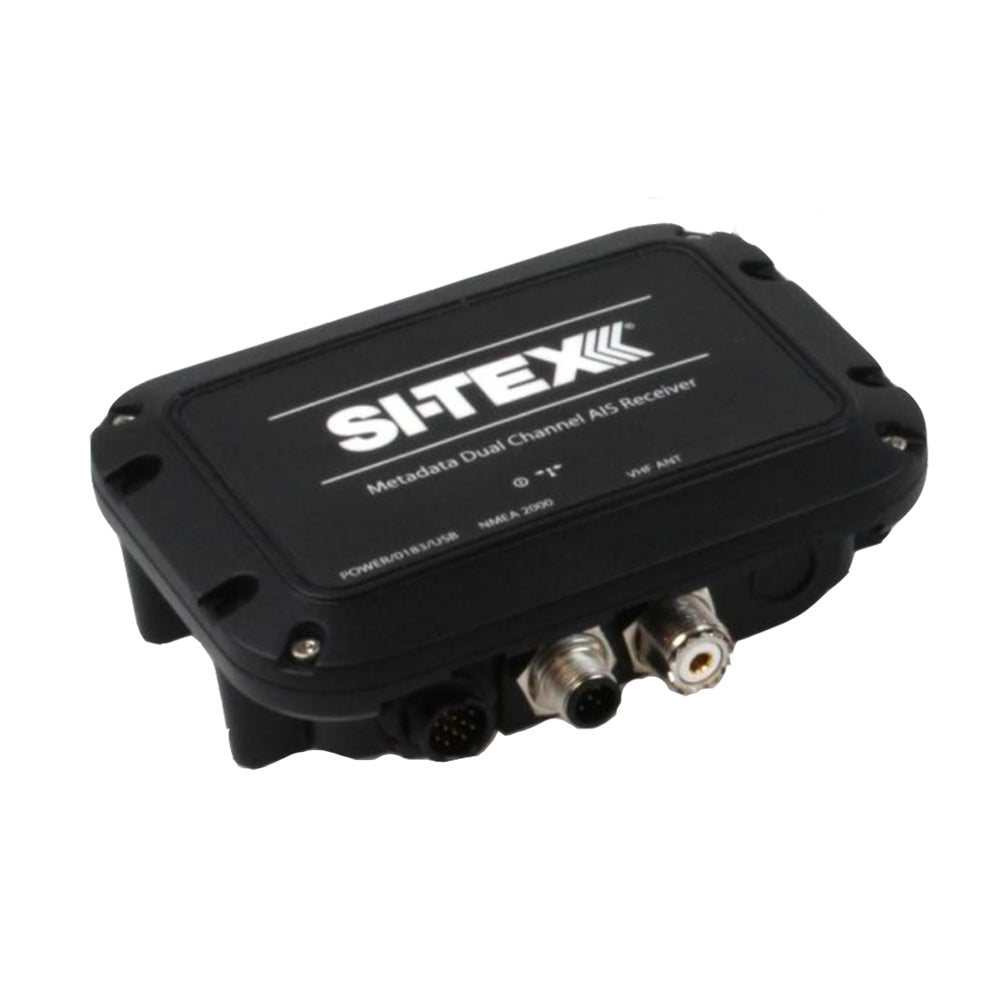

SI-TEX MDA-2 Metadata Dual Channel AIS Receiver for Marine Navigation

MDA-2 Metadata Dual Channel AIS Receiver

Utilizes a compact (5.5"X3.9"X1.9") module that is IPx7 Waterproof rated, for flexible location and rugged performance in any marine environment.

The new Metadata Dual Channel AIS Receiver module features the next generation Rmax AIS technology, with lightning-fast processing to maximize reception range and ensure that all incoming AIS messages are received and fully decoded in real time. This overcomes performance issues with yesterday's first generation AIS systems in real-world marine situations - and the advantages of Rmax technology will become even more important as the number of AIS-equipped vessels increases in the future. Designed for plug-and-play integration with chart plotters, radars, onboard PCs and other marine electronics, the Metadata Dual Channel AIS Receiver has built-in NMEA0183 and NMEA2000 interfaces, as well as a USB interface that can be used to power the device.

Specifications:
Power

• 12 to 24V DC

• Power consumption: 150mA @12VDC, <2W average

Data Interfaces

• USB

• NMEA2000

• IEC61162-1 (NMEA0183) output, 38400baud

• IEC61162-1 (NMEA0183) input, 4800baud

Supplied with

• 2m power and NMEA0183 data cable

• User manual and quick start guide

• Product CD

• Fixing screws

The SI-TEX MDA-2 Metadata Dual Channel AIS Receiver offers reliable and high-performance vessel tracking for marine environments. Its compact design measures approximately 7 inches long, 4 inches wide, and 2.4 inches high, making it suitable for flexible installation aboard various types of vessels. The device is IPx7 rated for waterproofing, ensuring durability and consistent operation even in harsh weather conditions. Equipped with next-generation Rmax AIS technology, the MDA-2 provides lightning-fast processing capabilities that maximize reception range and ensure all incoming AIS messages are received and fully decoded in real time. This advanced processing overcomes limitations of earlier AIS systems, making it highly effective in busy ports and crowded waterways where vessel density is increasing. Designed for seamless plug-and-play integration, the MDA-2 connects effortlessly with chart plotters, radars, onboard PCs, and other marine electronics via built-in NMEA0183, NMEA2000, and USB interfaces. The USB port also supplies power to the device, simplifying installation and reducing wiring clutter. The package includes a 6.5-foot power and NMEA0183 data cable, a user manual, quick start guide, product CD, and fixing screws, ensuring a straightforward setup process. Its low power consumption of less than 2 watts at 12V DC makes it energy-efficient for extended use. This receiver is ideal for commercial and recreational vessels seeking enhanced AIS detection capabilities with reliable, real-time data processing and easy integration into existing navigation systems. Whether used for collision avoidance or vessel monitoring, the SI-TEX MDA-2 improves situational awareness, enhancing safety and operational efficiency for mariners in diverse sea conditions.

Features:

• Compact and waterproof design rated IPx7 for durability in marine environments

• Next-generation Rmax AIS technology for fast processing and extended reception range

• Dual channel reception to capture all AIS messages in real time

• Multiple data interfaces including USB, NMEA0183, and NMEA2000 for seamless integration

• Low power consumption of less than 2 watts at 12V DC for energy efficiency

• Includes 6.5-foot power and data cable, user manual, quick start guide, and fixing screws
