**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

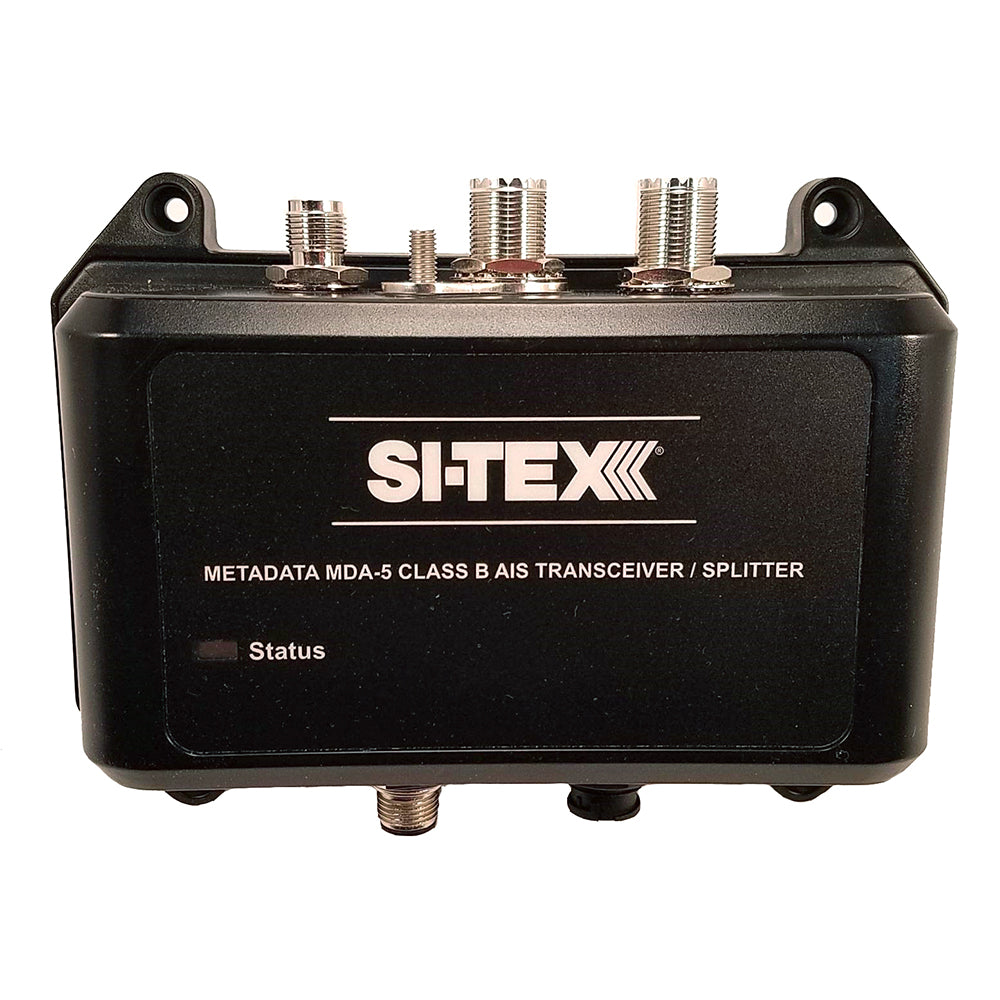

MDA-5 Hi-Power 5W SOTDMA Class B AIS Transceiver w/Built-In Antenna Splitter Long Range Wi-Fi
Features:
The MDA-5 is the world's most sophisticated fully certified 5-Watt SOTDMA Class B AIS Moble on the market
5-Watt transmitter power, Higher Output power means your vessel will be seen at longer ranges by other vessels and via AIS websites
SOTDMA Class A Priorities means that your vessel will always transmit and be seen in very congested Commercial Harbors and Ports where traditional Class B units don"t have network priority.
Intergrated zero loss VHF antenna splitter - no second antenna needed
Built-In 802.11 b/g/n Long Range WIFI allows unit to send AIS and Position data to any WIFI connected devices
NMEA-0183 data port, NMEA-2000 USB intelligent connectivity to all bridge systems
Dual Receivers decodes all DSC AIS messages, including MOB SART
Ultra-power efficient
IEC-62287-2, FCC and USCG certified
2 Year Warranty
Package Includes:
Commercial Grade External GPS Antenna with Coax Cable
Mounting hardware
Power Data Interface cable
VHF Radio Connection cable
Product Information DVD, with ProAis2 Software for Programming Troubleshooting
User Manual Quick Start Guide
Specifications:
Transmitter Output Power: 5 Watts
VHF Antenna Connector SO-239 UHF
GPS Antenna Connector TNC
Frequency Range: 156.025-162.025 Mhz
Input Voltage: 9.6-31.2 VDC
Current Draw: 220mA average power consumption
Operating Temperature Range: -25C to +55xC
Ingress Protection: IP67
Dimensions (transceiver): 6.8" W x 5.0" H x 2.0" D
Weight 0.8 lbs.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
The SI-TEX MDA-5 is a highly advanced and fully certified 5-Watt SOTDMA Class B AIS transceiver designed for professional marine applications. With its powerful transmitter, the MDA-5 ensures your vessel remains visible over longer distances to nearby ships and AIS networks, enhancing safety and communication in busy maritime environments. Its integrated zero-loss VHF antenna splitter eliminates the need for a second antenna, simplifying installation while maintaining optimal signal integrity. The built-in 802.11 b/g/n long-range Wi-Fi capability allows seamless transmission of AIS and vessel position data to any Wi-Fi-enabled device on board, providing real-time situational awareness. The unit also features dual receivers capable of decoding all DSC and AIS messages, including MOB and SART signals, ensuring comprehensive monitoring of nearby vessels and emergency signals. Certified to IPX7 waterproof standards, the MDA-5 is built to withstand harsh marine conditions, making it suitable for both commercial and recreational vessels. Its versatile connectivity options include NMEA-0183, NMEA-2000, and USB interfaces, enabling integration with existing bridge systems for streamlined navigation and communication. The built-in GPS and GLONASS receiver further enhance positioning accuracy, supporting safe navigation in complex waterways. Included with the transceiver are a commercial-grade external GPS antenna, mounting hardware, power and data cables, and comprehensive software and manuals to facilitate setup and troubleshooting. The MDA-5 operates efficiently within a wide voltage range and is backed by a two-year warranty, providing reliable performance in demanding marine environments. Please note that FCC programming is required at purchase, and documentation for registration and licensing is provided for compliance with US maritime regulations.
Features:
Powerful 5-Watt transmitter enhances vessel visibility over long distances
SOTDMA Class B operation ensures priority transmission in congested ports
