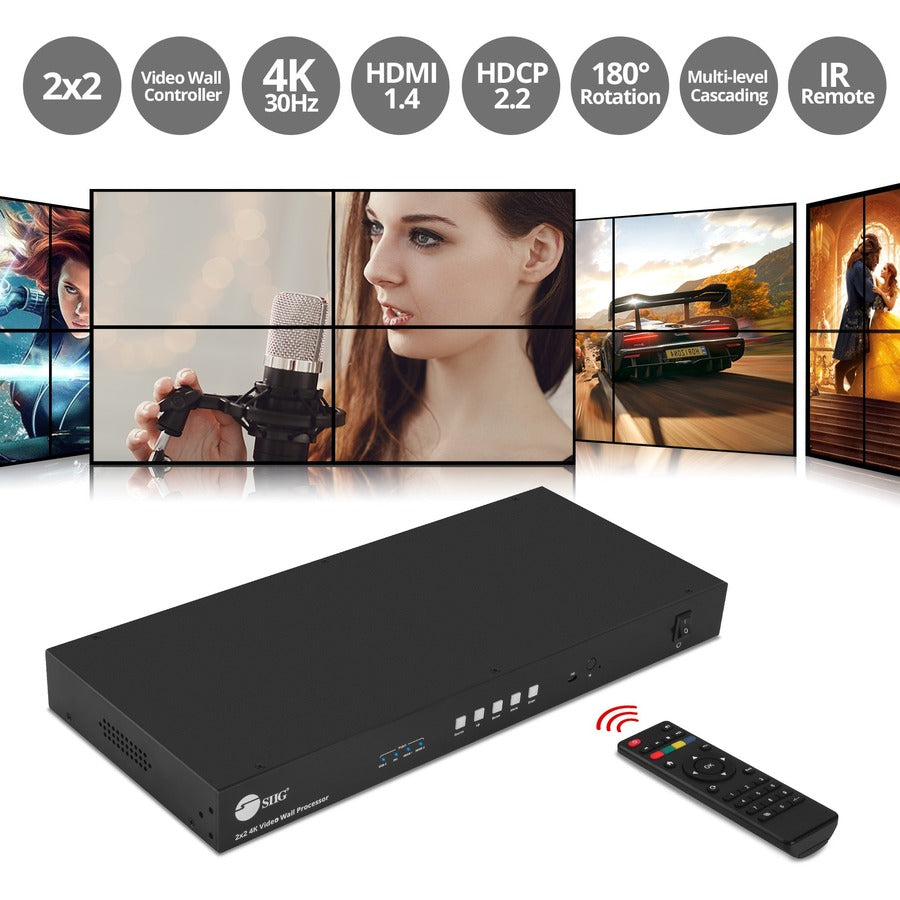

SIIG 2x2 4K Video Wall Processor with USB-C, DVI, and HDMI Inputs

SIIG 2x2 4K Video Wall Processor with USB-C / DVI / HDMI Inputs with EDID management

The SIIG CE-H26E11-S1 is a versatile 2x2 4K video wall processor designed to enhance your display setup with flexible input options and advanced control features. It allows users to select and switch between up to four source devices, including two HDMI, one USB-C, and one DVI-D port, enabling seamless content display across four HDMI screens. This capability makes it ideal for digital signage, control rooms, or immersive presentations where multiple sources need to be managed efficiently.

This video wall processor supports creating a 2x2 video wall easily from any source device, with the ability to cascade multiple units for larger configurations such as 10x10 walls. It supports multi-level cascading, providing extensive flexibility in designing custom display arrangements tailored to specific environments. The processor also features support for resolution up to 4K at 30Hz on HDMI and USB-C inputs, and 1920x1200 on DVI-D, ensuring high-quality visuals for professional applications. Additionally, it supports 180° HDMI image rotation, which is useful for installation in various orientations.

Connectivity options include SPDIF and analog audio extraction, allowing external speakers or AV equipment to be integrated effortlessly. Control options are comprehensive, with support for front panel buttons, remote control, RS232 commands, and TCP/IP control, providing multiple ways to operate and manage your video wall system. Firmware updates can be easily performed via the USB port, ensuring the device remains current with latest features and improvements. The included mounting brackets facilitate flexible installation in different environments, making this processor suitable for a variety of professional and commercial settings.

Features:

• Mounting brackets included for various installation options

• Supports SPDIF and analog audio extraction to connect external speakers or AV equipment

• USB port allows firmware upgrades when needed

• Supports source device switching via front panel button, remote control, RS232 command, and TCP/IP control

• Supports resolution up to 4K@30Hz for USB-C and HDMI inputs, 1920x1200 for DVI-D input

• Supports EDID management: two default EDID modes (4K30Hz & 1080p), copy EDID of HDMI loop out or any output port

• Supports 180° HDMI image rotation

• Supports multi-level cascading to create complex video wall configurations (up to 10x10)

• Create a 2x2 video wall using any source device to four displays

• Allows switching between four source devices (two HDMI, one USB-C, one DVI-D) for display on four HDMI screens
