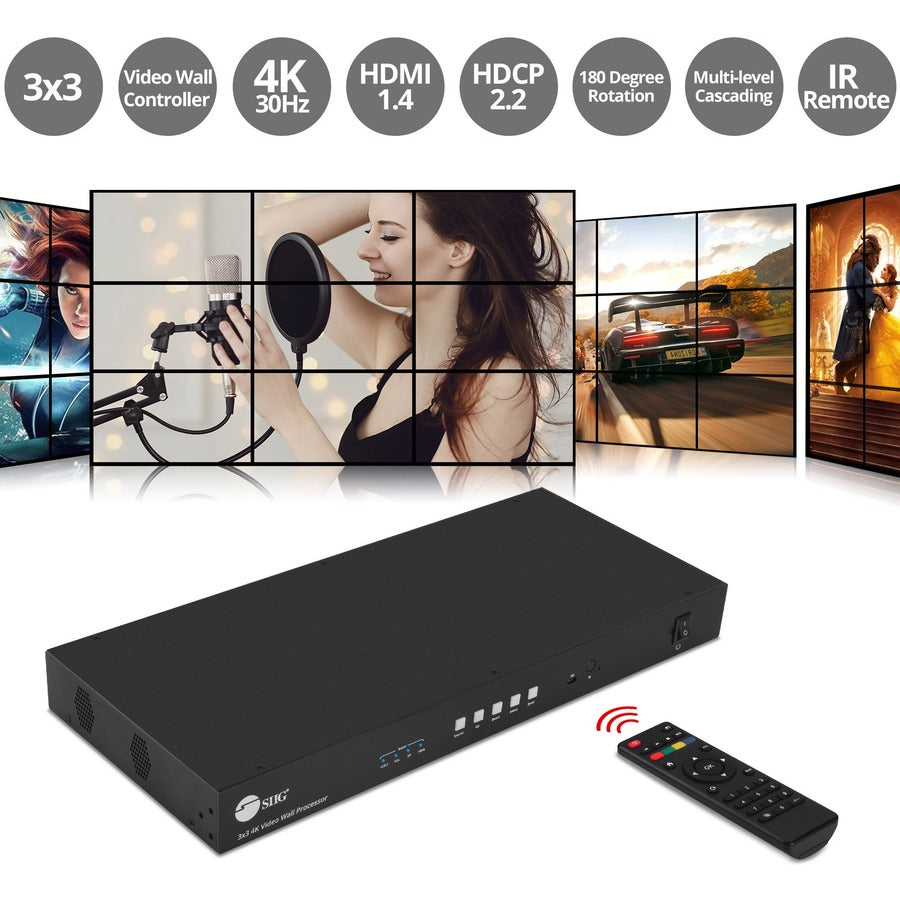

SIIG 3x3 4K Video Wall Processor with USB-C, DisplayPort, VGA, HDMI Inputs – CE-H26F11-S1

SIIG 3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input with EDID Management

The SIIG CE-H26F11-S1 is a versatile 3x3 4K video wall processor designed to deliver seamless multi-source video display solutions. Compatible with HDMI, DisplayPort, USB-C, and VGA inputs, this unit enables users to select and switch between four different source devices, providing flexibility for various installation environments. It supports creating a 3x3 video wall utilizing any source device to display on nine HDMI screens, with the added capability of multi-level cascading to form larger configurations like 3x4, 4x5, 5x6, or even a maximum 10x10 wall setup. This scalability makes it suitable for control rooms, retail displays, or large venues requiring extensive visual coverage.

Built with user convenience in mind, the processor features an on-screen display (OSD) that offers more than ten splicing modes, allowing quick and easy video wall configuration with a single click. Support for monitor edge adjustment ensures precise alignment of displays, while HDMI image rotation up to 180 degrees provides orientation flexibility. The device also supports EDID management with default profiles of 4K at 30Hz and 1080p, ensuring optimal resolution compatibility across connected sources. It complies with HDCP 2.2 and 1.4 standards, safeguarding content protection and ensuring compatibility with high-definition content.

Connectivity options include support for audio extraction via SPDIF and analog outputs, enabling external speakers or AVRs to be connected for synchronized audio. The processor can switch sources through multiple control methods, including front panel buttons, remote control, RS232 commands, and TCP/IP, providing versatile integration into existing control systems. Firmware upgrades are facilitated through a dedicated USB port, ensuring the device remains up-to-date. Designed for installation flexibility, mounting brackets are included, accommodating various mounting options. Overall, the SIIG CE-H26F11-S1 is a comprehensive solution for creating dynamic, high-resolution video walls that are easy to configure and expand as needed.

Features:

• Mounting brackets included for various installation options

• Supports SPDIF and analog audio extraction to connect external speakers or AVRs

• USB port allows firmware upgrades when needed

• Supports source device switching via front panel button, remote control, RS232 command, and TCP/IP control

• Supports monitor edge adjustment

• OSD allows more than 10 splicing modes, video wall setup by single click

• Supports resolution up to 4K@30Hz for USB-C, DisplayPort and HDMI inputs, 1080p for the VGA input

• Supports EDID management: Two default EDID: 4K30Hz & 1080p

• Supports 180° HDMI image rotation

• Compliant with HDCP 2.2/1.4 specification

• Supports multi-level cascading to create 3x4, 4x5, 5x6, and 10x10 (max) video walls

• Create a 3x3 Video Wall using any source device to 9 displays

• Allows you to select and switch between 4 source devices (1 HDMI, 1 DisplayPort, 1 USB-C, and 1 VGA) to display on 9 HDMI displays + 1 local HDMI out
