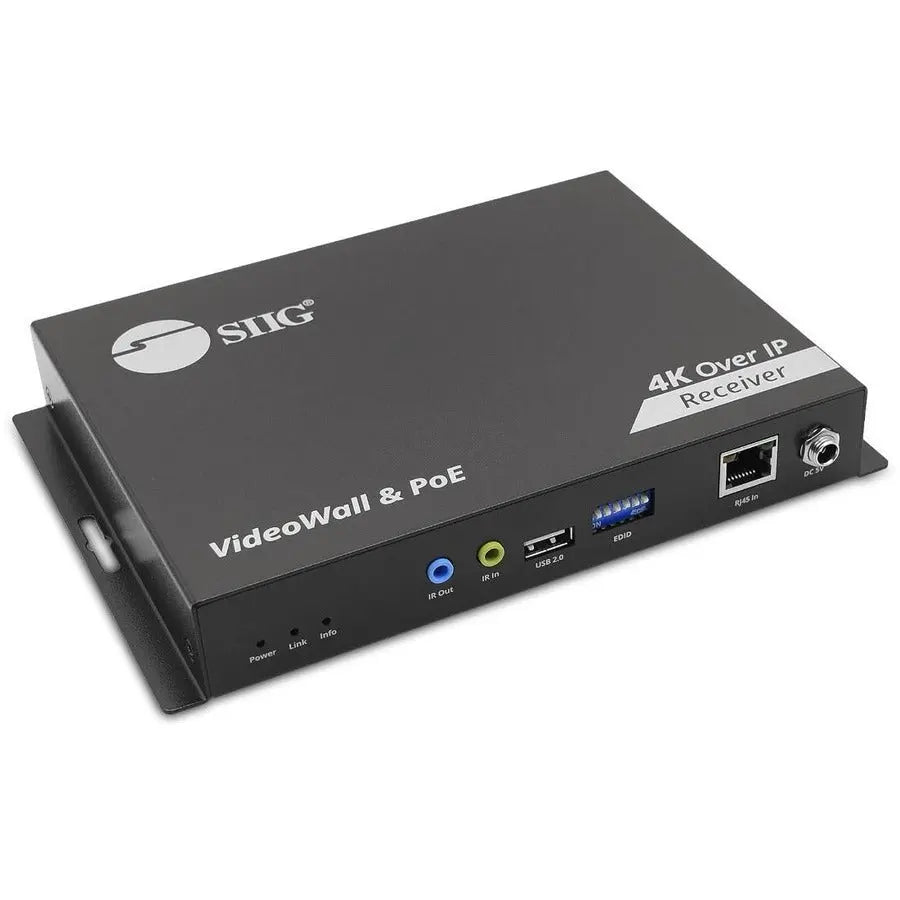

SIIG 4K 60Hz HDMI over IP Matrix Receiver - Wall Mountable 394 ft Long-Distance UHD Video Extender

SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Decoder (RX) 394ft TAA Compliant

The SIIG CE-H27G11-S1 is a high-performance HDMI over IP matrix receiver designed to deliver reliable, high-quality audio and video signals over long distances. Capable of supporting 4K resolution at 60Hz, this device ensures crystal-clear, vibrant visuals suitable for control centers, digital signage, and professional AV setups. With a maximum transmission distance of nearly 394 feet (120 meters), it utilizes a single Cat6/7 Ethernet cable to extend Ultra HD HDR content seamlessly, reducing the need for multiple cables and simplifying system installation. Its compatibility with PoE technology allows power to be supplied through the Ethernet connection, eliminating the need for additional power adapters and enhancing system robustness and flexibility. This feature makes it an ideal choice for installations where space and power options are limited.

This receiver supports a wide array of advanced features including HDCP 2.2 for secure content transmission, 18Gbps bandwidth for smooth, high-fidelity video, and 7.1-channel surround sound for immersive audio experiences. It offers bi-directional IR pass-back and RS-232 control to enable remote source device management, making it suitable for multi-room or multi-display environments. The device also supports digital audio extraction via S/PDIF (Toslink), 3.5mm stereo, or HDMI output, providing flexible audio options for various applications. Designed with a compact wall-mountable form factor, it can be discreetly integrated into existing setups while maintaining an aesthetic appeal.

The SIIG 4K 60Hz HDMI over IP Matrix Receiver includes essential accessories such as an IR extension cable, power adapter, mounting kit, and user guide, ensuring a straightforward installation process. Its high scalability allows multiple units to be combined for expansive AV distributions, supporting up to 65,536 total units and 1,023 transmitters. This makes it suitable for large-scale commercial deployments that require robust, scalable solutions for transmitting ultra-high-definition content over existing IP networks. Built with environmentally friendly RoHS compliance and manufactured in Taiwan, this device ensures quality, durability, and eco-conscious operation for professional AV systems.

Features:

• Flexible matrix function to extend HDMI audio/video signals over UTP Cat6/7 cable up to 394ft (120m) with support for 4K@60Hz HDR resolution

• Scalable TX/RX matrix operation over dedicated IP networks, supporting up to 65,536 units with separate transmitters and decoders

• PoE technology enables power delivery through Ethernet, eliminating the need for extra power adapters

• Long-distance extension up to 394ft (120m) through Gigabit Ethernet network for reliable signal transmission

• Supports Ultra HD 4K resolution at 60Hz with HDR 10, HDCP 2.2, 4:4:4, and 3D for vivid, high-quality visuals

• Bi-directional IR pass-back and RS-232 control for source device management from remote locations

• High video bandwidth of 18Gbps with support for 7.1-channel surround sound for immersive audio and video experience

• Audio extraction via digital S/PDIF (Toslink), stereo 3.5mm, or HDMI output for flexible audio options

• Multiple connectivity ports including HDMI output, Gigabit Ethernet, IR, USB, microphone, and audio jacks, enabling versatile integrations

• Wall-mountable design for space-efficient installation and enhanced safety

• Supports digital audio formats including PCM, Dolby 5.1, DTS 5.1, and higher for comprehensive sound reproduction
