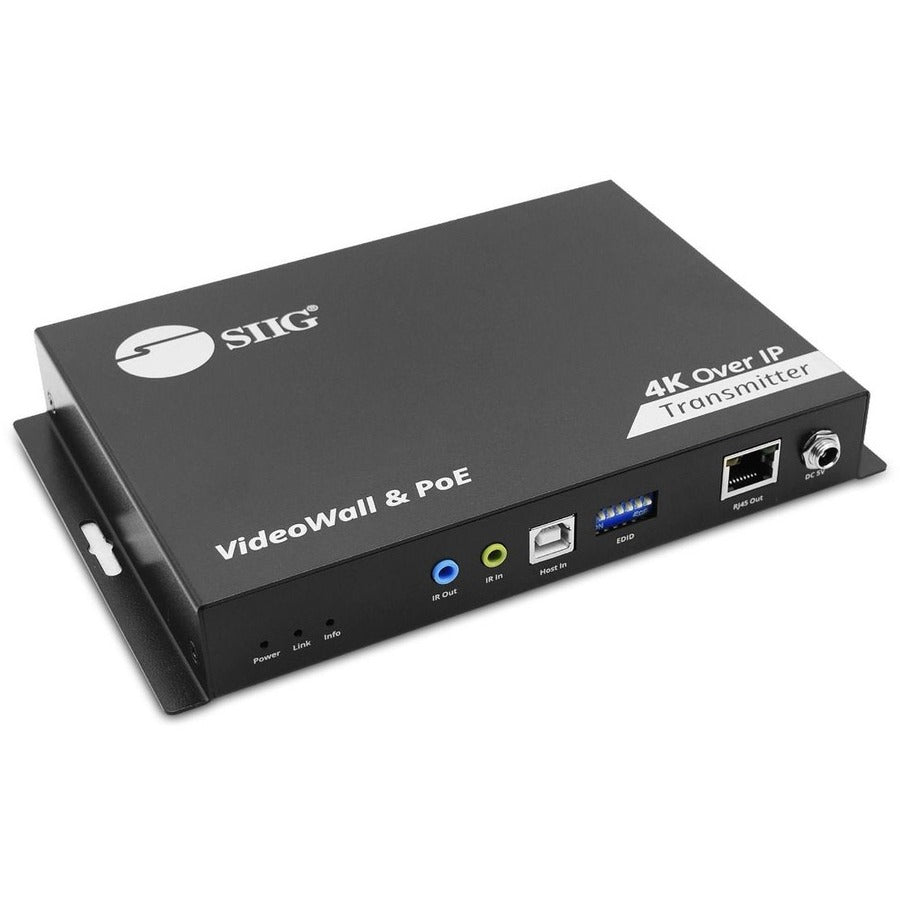

SIIG 4K 60Hz HDMI over IP Matrix Transmitter (CE-H27F11-S1) – Extend UHD Video up to 394 Feet

SIIG 4K 60Hz 18Gbps HDMI over IP Matrix - Encoder (TX) 394ft TAA Compliant

The SIIG 4K 60Hz HDMI over IP Matrix Transmitter (Model CE-H27F11-S1) is designed to deliver high-performance, reliable transmission of Ultra HD video signals over long distances. With the ability to transmit 4K@60Hz HDR content up to 394 feet using a single Cat6/7 cable, this device is ideal for control centers, digital signage, and professional AV setups. Its advanced technology supports a maximum video bandwidth of 18Gbps, ensuring smooth, crisp images with rich colors and deep contrast. The transmitter’s compact, wall-mountable design makes installation straightforward, and its PoE capability simplifies power management by eliminating the need for additional power adapters. This setup supports a range of configurations, including one-to-one, one-to-many, and multi-casting, making it scalable for various applications. The device also features HDMI audio/video extraction, IR extension, and RS-232 control, enabling seamless integration with remote sources and control systems. Additionally, compatibility with HDCP 2.2, HDR 10, and support for 7.1 surround sound provides an immersive viewing experience with high fidelity audio. The unit’s digital S/PDIF, 3.5mm stereo, and HDMI audio outputs offer flexible audio extraction options suited for different audio systems. The device’s robust construction and environmental compliance, including RoHS 2, ensure durability and eco-friendliness. With support for a maximum of 65,536 units and up to 1,023 transmitters in a scalable network, this matrix system is suitable for large-scale AV installations requiring extensive coverage and reliable performance. Its wide array of connectivity ports, including USB-B, Ethernet, IR, RS-232, and audio ports, provides versatile integration options. The package includes the transmitter, IR extension cable, power adapter, mounting kit, and user guide, backed by a 3-year limited warranty. Whether for control centers, digital signage, or multi-screen video walls, the SIIG 4K HDMI over IP Matrix Transmitter ensures high-quality, scalable, and efficient AV distribution across extensive environments.

Features:

• Flexible matrix functionality supports extending and splitting HDMI signals over UTP Cat6/7 cables up to 394 feet with stable 4K@60Hz HDR transmission

• Highly scalable system allows up to 65,536 total units with support for multiple configurations including one-to-one, one-to-many, and multi-casting

• PoE technology enables power delivery through the Ethernet connection, eliminating the need for additional power supplies for both transmitter and receiver units

• Long-distance transmission capability reliably extends HDMI signals up to 394 feet over a Gigabit Ethernet network, ideal for large venues and installations

• Supports Ultra HD 4K resolution at 60Hz with HDR 10, HDCP 2.2, 7.1 surround sound, and deep color for vivid, immersive visuals

• Bi-directional IR and RS-232 control support remote source switching and device control from multiple locations

• Audio extraction options include digital S/PDIF, 3.5mm stereo, and HDMI outputs for flexible integration with audio systems

• Multiple connectivity ports such as USB-B for webcams and KVM, Ethernet, IR, RS-232, and audio jacks facilitate comprehensive system integration

• Compact, wall-mountable design with durable construction, compliant with RoHS 2 standards for environmental safety

• Includes all necessary accessories such as IR extension cable, power adapter, mounting kit, and user guide, supported by a 3-year warranty
