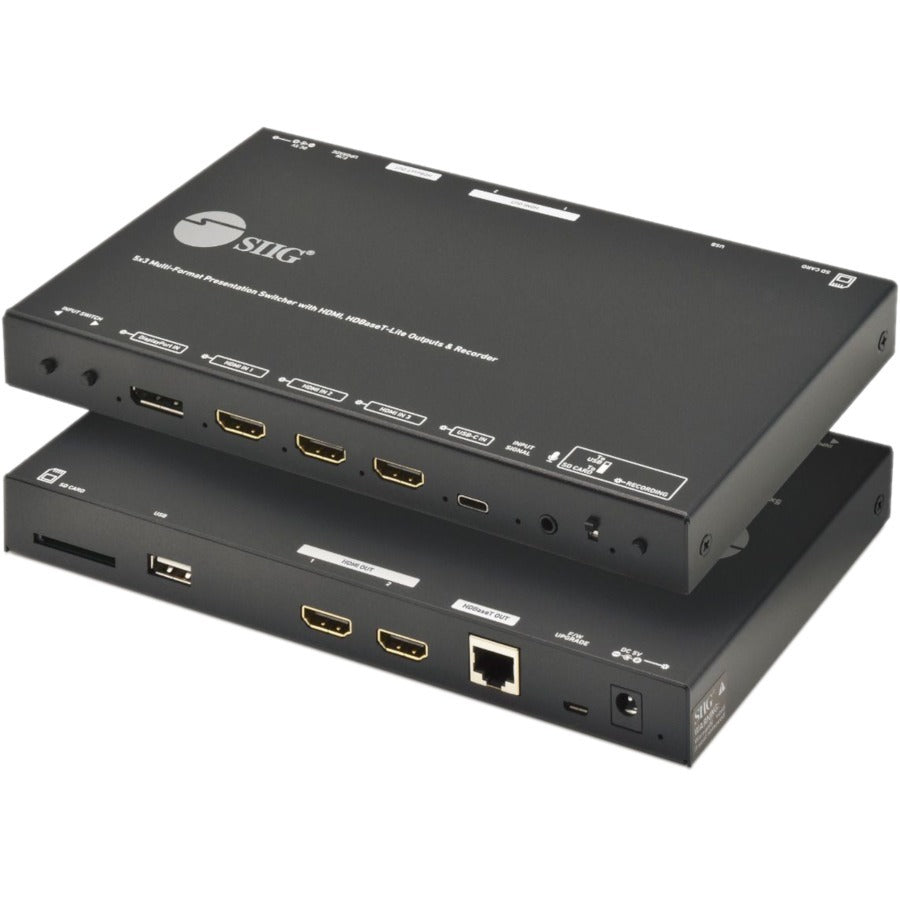

SIIG 5x3 Multi-Format 4K 60Hz Presentation Switcher & Recorder - CE-H26S11-S1

SIIG 5x3 Multi-Format 4K 60Hz Presentation Switcher & Recorder 230ft - TAA Compliant

The SIIG CE-H26S11-S1 is a versatile and compact presentation switcher designed for professional environments requiring multiple video input options and recording capabilities. Equipped with five input ports—including three HDMI 2.0a, one DisplayPort 1.2, and one USB-C (DP Alt)—it offers flexible connectivity for various devices such as computers, laptops, and media players. This switcher supports video bandwidth up to 18Gbps, enabling seamless 4K resolution at 60Hz with YUV 4:4:4 chroma subsampling, ensuring high-quality image output for presentations or broadcasts. It is compliant with HDCP 2.2 and 1.4, making it compatible with protected content and safeguarding digital rights. The device's output options include two HDMI outputs and one HDBaseT port, which can transmit signals over distances up to 230 feet using an HDBaseT extender (sold separately), making it suitable for large venues or conference rooms. The switcher supports resolutions up to 4Kx2K@60Hz for HDMI outputs and 4Kx2K@60Hz or 30Hz via HDBaseT, with flexible color encoding options like xvYCC, x.v.Color, and Deep Color for enhanced visual fidelity. It also facilitates video and audio recording directly to USB flash drives or SD cards in FAT32 or NTFS formats, although it does not record HDCP-protected content, ensuring secure handling of sensitive media. The device includes front panel push buttons for quick input switching and LED indicators that provide real-time status updates on source selection, input signals, and recording activities. Supporting built-in and external microphones, this switcher offers comprehensive audio options for live presentations. Its robust design, environmentally friendly construction, and TAA compliance make it suitable for professional and government installations. The package includes the main switcher, a 5V/4A power adapter, power cord, and user manual, all backed by a two-year limited warranty. Whether for corporate presentations, educational environments, or live broadcasting, the SIIG 5x3 Multi-Format Presentation Switcher & Recorder delivers reliable performance with advanced features to meet demanding audiovisual needs.

Features:

• Multiple video inputs: 3 HDMI 2.0a, 1 DisplayPort 1.2, 1 USB-C (DP Alt)

• Note: The adapter's USB-C input does not support smart phones

• Video bandwidth up to 18Gbps for high-quality 4K output

• HDCP 2.2 and 1.4 compliance for protected content

• Input resolution up to 4Kx2K at 60Hz with YUV 4:4:4 color sampling

• Output resolution up to 4Kx2K at 60Hz via HDMI and 4K@30Hz via HDBaseT extender (not included)

• Supports HDBaseT transmission distances up to 230 feet from source at Full HD and 133 feet at 4K

• Requires HDBaseT extender, sold separately

• Supports recording to USB flash drives or SD cards in FAT32 and NTFS formats

• Does not record HDCP protected content

• Supports both built-in and external microphones for audio input

• Supports xvYCC, x.v.Color, and Deep Color for enhanced visual quality

• Input switching via front panel push buttons

• Front panel LED indicators display source, input, and recording status
