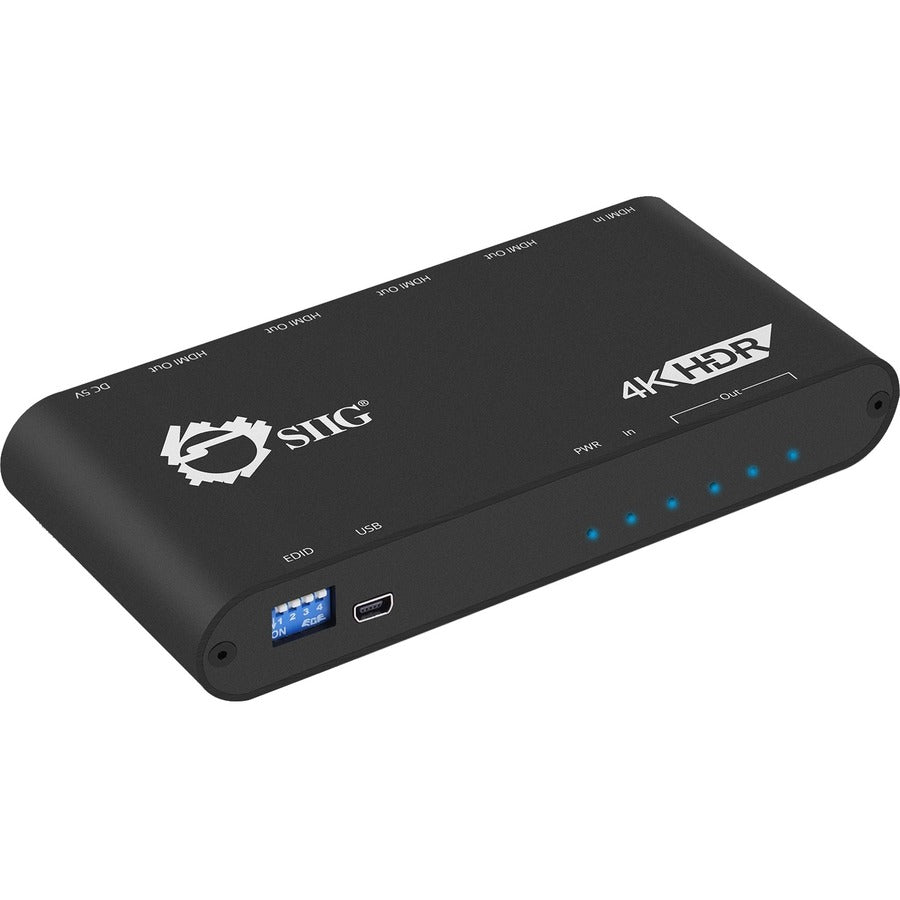

SIIG CE-H22Y11-S1 1x4 HDMI 2.0 HDR Distribution Amplifier with EDID Management

SIIG 1x4 HDMI 2.0 Splitter / Distribution Amplifier with Auto Video Scaling - 4K 60Hz HDR

The SIIG CE-H22Y11-S1 1x4 HDMI 2.0 HDR Distribution Amplifier distributes video and audio from one HDMI source to as many as four HDMI displays simultaneously. Designed for home entertainment, conference rooms, classrooms, digital signage, and commercial AV installations, it maintains reliable signal quality while supporting mixed display environments.

With 18Gbps bandwidth, HDMI 2.0a compatibility, and HDCP 2.2/1.4 support, the SIIG distribution amplifier handles resolutions up to 4K at 60Hz with YUV 4:4:4 8-bit color, as well as HDR 4K at 60Hz with YUV 4:2:0 10-bit color. It also supports 3D, xvYCC, x.v.Color, Deep Color, Dolby Digital, DTS-HD, and Dolby TrueHD audio for a complete high-definition experience.

An integrated auto video scaling feature detects the capabilities of each connected display and configures the output resolution automatically. This allows simultaneous 4K and 1080p output, helping ensure compatibility when different monitors or televisions are connected. EDID management provides pre-programmed settings or EDID learning from connected displays, while firmware can be upgraded through the Mini USB port for expanded compatibility over time.

The durable metal housing promotes heat dissipation, reduces EMI and RFI interference, and supports dependable operation with built-in ESD protection. Multiple SIIG CE-H22Y11-S1 units can be cascaded to expand distribution across larger installations, with support for up to 10 layers. This TAA-compliant, environmentally friendly amplifier is backed by a three-year limited warranty.

Features:

• Distributes one HDMI video and audio source to up to four HDMI displays simultaneously
• Supports HDMI 2.0a, HDCP 2.2/1.4, and 18Gbps bandwidth
• Supports resolutions up to 4K at 60Hz, HDR 4K at 60Hz, 3D, xvYCC, x.v.Color, and Deep Color
• Supports Dolby Digital, DTS-HD, and Dolby TrueHD audio formats
• Automatically scales video according to each connected display's capabilities
• Supports simultaneous mixed 4K and 1080p output
• Provides EDID management with pre-programmed settings and display-based EDID learning
• Firmware upgradeable through the Mini USB port
• Metal housing provides heat dissipation, durability, and reduced EMI/RFI interference
• ESD protection helps support stable and reliable performance
• Supports cascading multiple splitters across up to 10 layers
