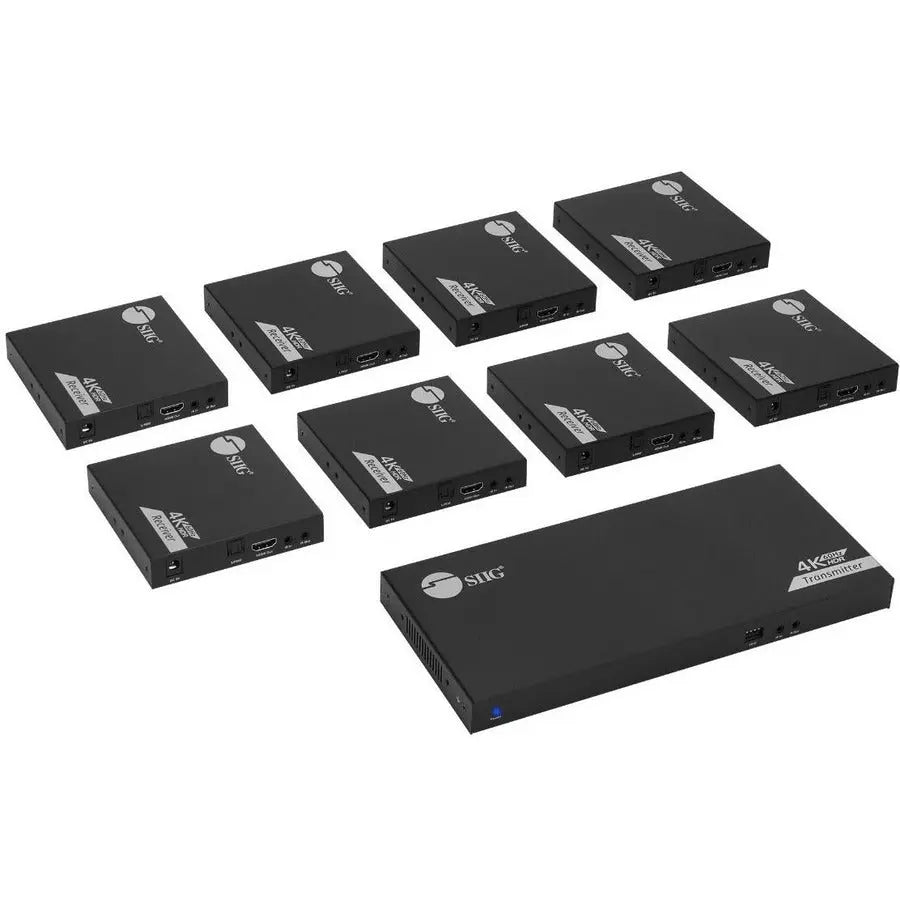

SIIG Inc 1x8 4K HDMI Splitter Over Cat6 Extender with Loopout, IR, ARC & RS-232 - Up to 230ft (70m)

SIIG 1x8 4K 60Hz HDMI Splitter Over Cat6 Extender with Loopout/IR/ARC & RS-232 - Up to 230ft (70m) - Near Zero Latency

The SIIG CE-H27B11-S1 is a versatile 1x8 HDMI splitter and extender designed to deliver ultra-high-definition 4K signals over long distances using cost-effective Cat6/7 cabling. This system supports UHD 4K@60Hz resolution with YUV 4:4:4 color sampling, ensuring vibrant, crisp images on multiple displays. Its advanced digital transmission technology allows for zero latency transmission, making it suitable for professional and recreational applications like conference rooms, lecture halls, multimedia classrooms, home theaters, restaurants, shopping centers, libraries, and showroom displays. The product's robust design includes one HDMI input port, one HDMI loop-out port for local display, and eight HDMI output ports to connect multiple projectors or HDTVs seamlessly.

The system features comprehensive connectivity options including sixteen RJ45 network ports, IR emitter and receiver ports, S/PDIF audio ports, an RS-232 terminal, and multiple power jacks for both transmitter and receivers. These features facilitate flexible integration into various environments, supporting remote control via built-in bi-directional IR, ARC audio through Toslink, and EDID management to optimize display resolution. The inclusion of audio extraction capabilities allows digital audio signals to be routed through the receiver's S/PDIF port, supporting PCM2, Dolby 5.1, and DTS 5.1 audio formats for high-quality sound reproduction. Additionally, the system's RS-232 control port enables integration with existing automation and control systems, providing centralized management for complex setups.

This extender system is built with environmentally friendly RoHS compliance and comes in a sleek black finish. It includes a comprehensive package with one transmitter, eight receivers, power adapters, IR extension cables, a terminal block, mounting kit, and user manual. With a two-year limited warranty, the SIIG 1x8 HDMI splitter over Cat6 is a reliable solution for high-quality, long-distance HDMI extension and distribution in various professional and residential applications. Its compact design and extensive features make it an ideal choice for anyone needing to distribute UHD video and audio signals efficiently over large venues or homes.

Features:

• 4K HDMI Extension - Easily extends UHD 4K@60Hz HDMI signals up to 230ft (70m) over Cat6/7 cabling to up to 8 displays

• Advanced Transmission Technology - Transmits 4K@60Hz YUV 4:4:4 video and audio with zero latency and HDR support

• HDMI Loopout + Extend 8 Displays - Supports one HDMI loop-out and extends signals to 8 receivers for HDTV or projectors

• EDID Management - Controls resolution output to optimize display performance

• Audio Extraction - Routes digital audio via S/PDIF with support for PCM2, Dolby 5.1, DTS 5.1

• IR Control - Built-in bi-directional IR for remote operation of source devices at remote locations

• ARC and Audio Extraction - Supports audio return channel via Toslink connection

• RS-232 Control - Facilitates integration with automation and control systems
