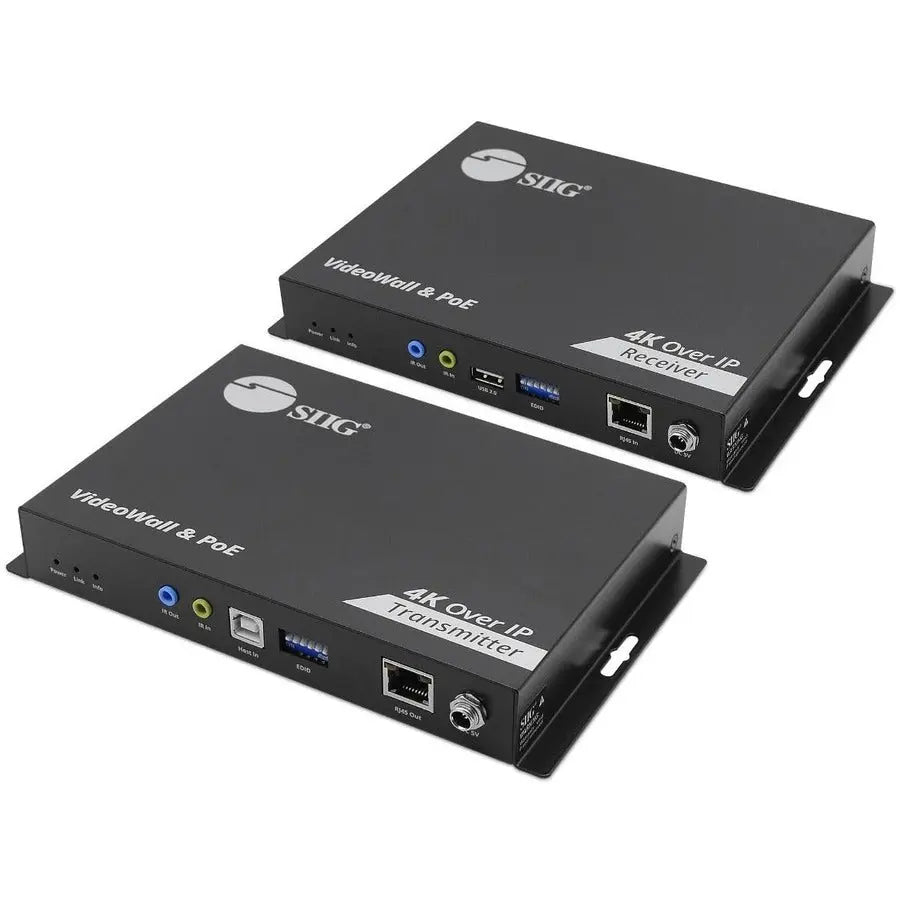

SIIG Inc. 4K60Hz HDMI over IP Matrix Kit (Part CE-H28A11-S1) for Ultra HD Video Distribution

The SIIG 4K60Hz HDMI over IP Matrix Kit is an advanced solution for extending high-definition HDMI signals over long distances using cost-effective Cat6/7 cabling. Designed to support resolutions up to 4K at 60Hz with a bandwidth of 18Gbps, this kit ensures crystal-clear video and audio quality for professional multimedia installations. Its compatibility with HDCP 2.2 guarantees secure content transmission across multiple displays, making it ideal for digital signage, conference rooms, and control centers. The system's PoE support simplifies installation by powering devices through the network cable, reducing clutter and setup time. With built-in IR and RS-232 pass-through, users can remotely control source devices from the display location or vice versa, enhancing operational flexibility and user convenience. Additionally, the kit supports Dolby Digital 7.1ch, DTS-HD, PCM, and Toslink audio formats, ensuring comprehensive audio compatibility for various applications. The flexible architecture allows one-to-one, one-to-many, and multi-casting configurations, supporting up to 1,023 multicast groups, which makes it suitable for complex video distribution networks. Its video wall functionality and support for rotation angles of 90, 180, and 270 degrees provide customizable and dynamic display arrangements. The compact, wall-mountable design combined with a 3-year limited warranty makes this product a reliable choice for professional AV integration. The package includes a transmitter, receiver, power adapters, IR extension cables, mounting screws, and a user manual, streamlining setup and operation. Crafted with environmentally friendly RoHS compliance and TAA compliance, the SIIG 4K60Hz HDMI over IP Matrix Kit is built for performance, scalability, and durability in demanding environments.

Features:

• Extends 4K@60Hz HDMI signals up to 394 feet over economical Cat6/7 cabling

• Supports HDMI 4K60Hz with 18Gbps bandwidth, HDCP 2.2, PoE, IR, and RS-232 pass-through

• Flexible UHD video broadcasting via Gigabit Ethernet LAN/Switch; supports one-to-one, one-to-many, and multicasting up to 1,023 groups

• Supports video wall configuration and KVM functionality; multicast to unlimited displays; supports 90°, 180°, and 270° image rotation

• Built-in bi-directional IR signal from 20kHz to 60kHz for full remote control of source devices from displays and vice versa

• RS-232 control up to 115,200 bps with easy Dip Switch group configuration

• Supports multiple audio formats including Dolby Digital 7.1ch, DTS-HD, PCM, and Toslink stereo
