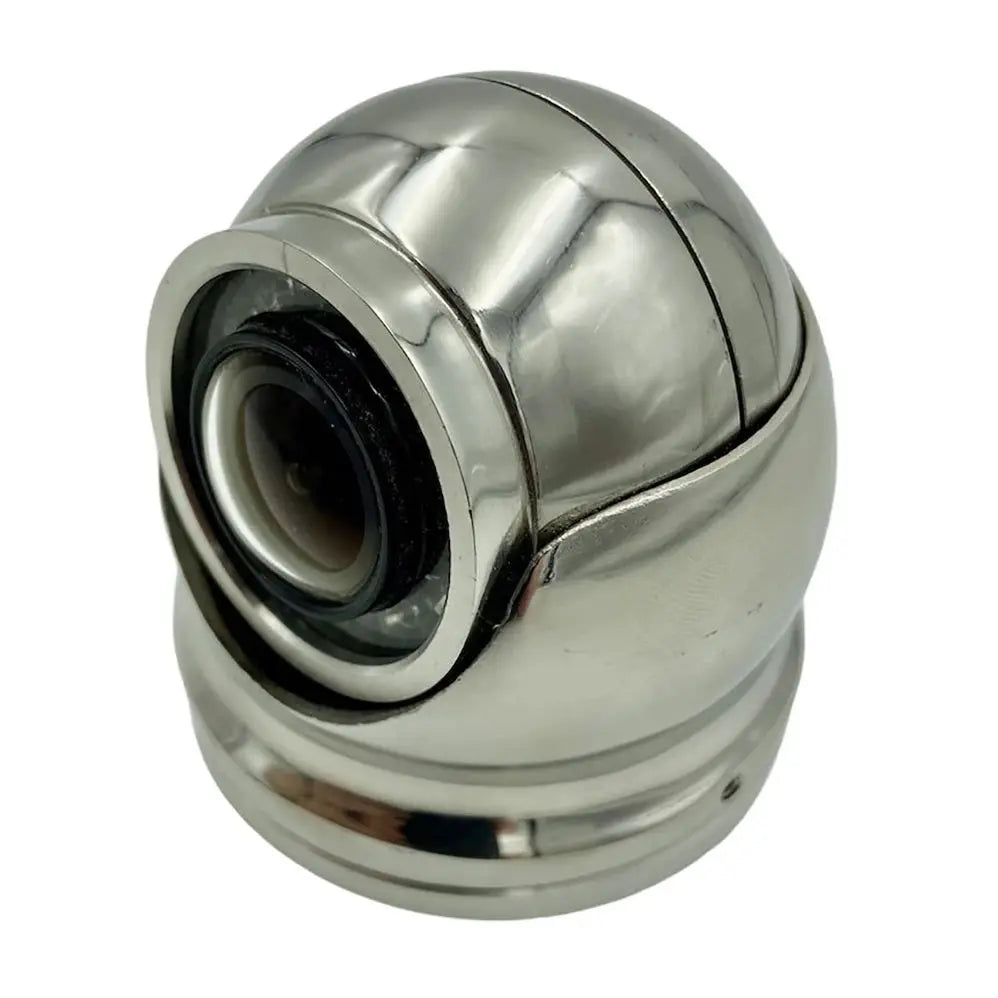

Simrad CAM-1 IP Camera Stainless Steel Marine Grade

Simrad CAM-1: Advanced Stainless Steel Marine Grade IP Camera

Simrad CAM-1 IP Camera Stainless Steel Marine Grade

Simrad CAM-1 Marine grade 316 Stainless Steel IP Camera

Model: 000-15876-001

• Pre-configured for use with Simrad, Lowrance and B&G MFDs
• Fast setup on each MFDs
• Rugged 316 Marine Grade Stainless Steel Housing
• 1.8mm 160 deg viewing angle - See the entire deck
• Compatible with NOS 20.2 or later
• Built In IR LED Illumination (10m Range)
• PoE IEEE802.3af Power Option
• Extremely Low Power Consumption
• IP66 Environmental Protection

Specifications

PoEIEEE802.3af (RJ45)

DC
12V DC (10-16V) DC 2.1/5.5mm Male CCTV power connector

Power Consumption

IR LED Off
1.38W (0.1A at 13.8V DC)

IR LED On
2.76W (0.2A at 13.8V DC)

Enviromental

Operating temperature
-30 degC to +60 degC (-22 degF to 140 degF)

IP Rating
IP66

Resolution

Main stream
1080p (1920x1080)

Sub Stream
448p (800x448)

Protocol
RTSP

Mechanical

Lens
1.8mm (160 deg Wide Angle)

Sensor
1/4 CMOS

Housing
316 Stainless steel

Weight
420g

MFD resolutions capabilities:
NSSevo3S

Durability and Marine-Grade Build Quality

The Simrad CAM-1 IP Camera is engineered with a robust stainless steel housing, ensuring exceptional corrosion resistance and durability in harsh marine environments. Its marine-grade construction is designed to withstand saltwater spray, extreme weather, and temperature fluctuations, making it ideal for vessels of all sizes. Built to last, this IP camera maintains reliable performance even under the most demanding conditions, providing long-term surveillance solutions for marine applications.

High-Quality Imaging and IP Connectivity

The Simrad CAM-1 features superior imaging capabilities that deliver sharp and clear video streams for effective monitoring. Equipped with advanced IP technology, the camera supports seamless integration into marine vessel networks, enabling remote viewing and recording with ease. This IP camera ensures real-time data transmission over Ethernet, enhancing situational awareness and safety onboard, helping operators maintain full visual control regardless of their location.

Versatile Installation and Application

Designed with flexibility in mind, the Simrad CAM-1 IP Camera offers multiple mounting options suitable for both small boats and large ships. Its compact size and marine-grade quality allow installation in various strategic positions, providing optimal coverage of critical areas. Whether used for navigation assistance, security surveillance, or operational monitoring, the camera’s high-performance features and durable construction make it an essential tool for modern marine vessels.
