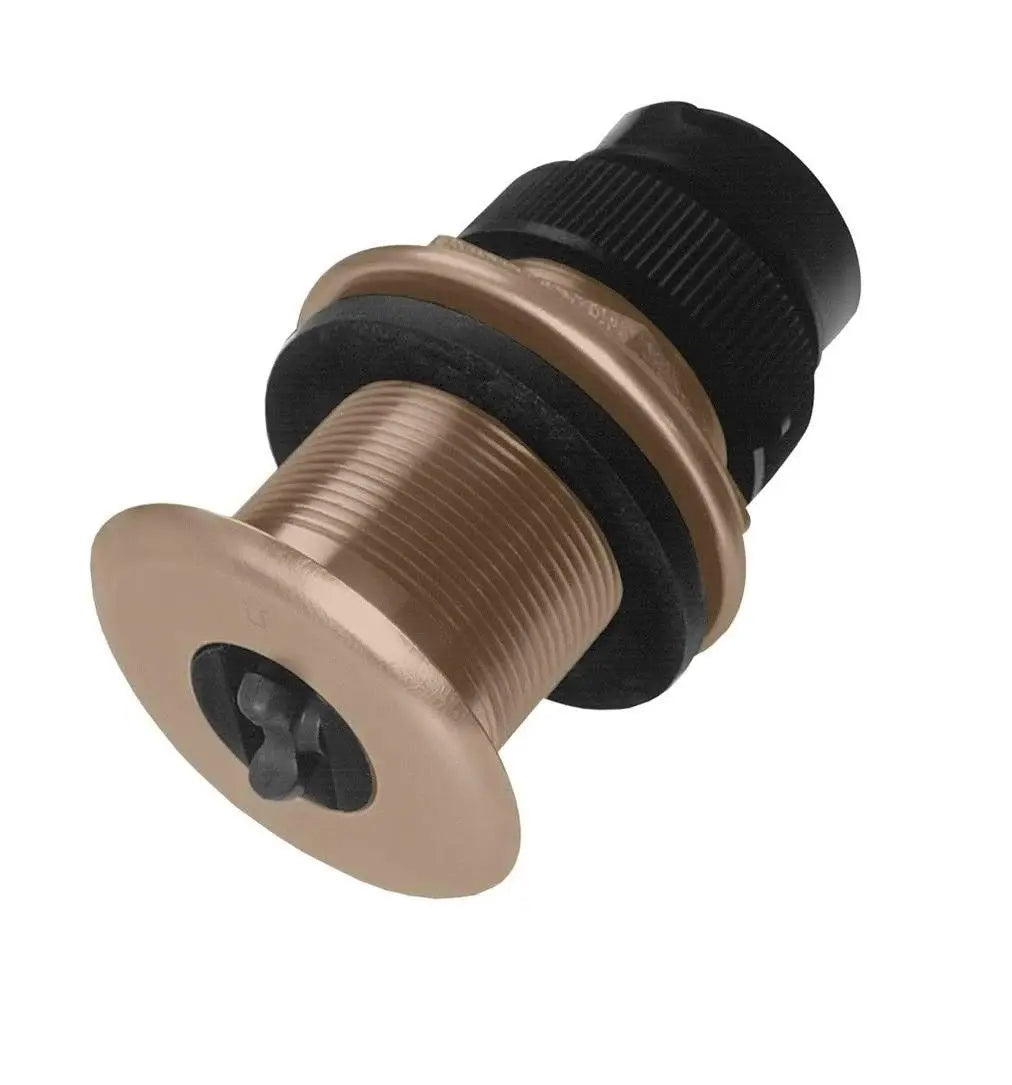

Simrad DST810 Multi Sensor Airmar Smart Transducer Bronze Thru Hull

Simrad DST810 Multi Sensor Airmar Smart Transducer Features and Benefits

Simrad DST810 Multi Sensor Airmar Smart Transducer Bronze Thru Hull

Simrad IDST-810 active Depth, Speed, Temperature thru-Hull Bronze 235 kHz transducer.

Model: 000-15736-001

• 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
• Integrated attitude sensor for heel and trim benefits sailing and power boats
• Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
• DST810 stores configurations and delivers data to the NMEA 2000(R) network.
• Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
• Popular depth sensor for shallow water performance.

Specifications

Acoustic WindowUrethane

Hull Deadrise
Up to 22 deg

Data Update Rate
Depth 1X/second

Data Update Rate
Speed 5X/second

Attitude Accuracy
+/- 1 deg nominal after sensor calibration

Depth Frequency
235 kHz

Minimum Depth Range
0.5 m (1.6 feet)

Maximum Depth Range
Up to 100 m (330 feet)-NMEA 2000(R)

Speed Range
Up to 45 knots

Pressure Rating
3 m (10 feet)

Pulse Rate
20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile

Supply Voltage
9 VDC to 16 VDC-per NMEA 2000

Supply Current
<200 mA-per NMEA 2000(R)

Wireless Protocol
Bluetooth Low Energy (BLE)

Wireless Range
Up to 30 feet depending on mount location

Standard Cable Length
6 m (20 feet) DeviceNet-NMEA 2000(R)

Temperature Sensor Accuracy
+/-0.5 degC (+/-1.8 degF)

Temperature Sensor Range
-10 degC to 40 degC (14 degF to 104 degF)

NMEA 2000 Load Equivalency Number (LEN)
3

What's in the Box:

• DST-810 Insert
• Bronze Housing

Advanced Technology Integration

The Simrad DST810 Multi Sensor integrates cutting-edge Airmar smart transducer technology to deliver precise depth, speed, and temperature readings. Designed for bronze thru hull installation, this sensor ensures durability and long-term reliability in harsh marine environments. With seamless compatibility across Simrad navigation displays, it optimizes vessel performance monitoring while enhancing safety on the water. Its sophisticated design improves data accuracy, making it an invaluable tool for any serious mariner aiming to optimize navigation efficiency.

Durable Bronze Thru Hull Construction

Constructed with high-quality bronze material, the Simrad DST810 sensor is engineered to withstand corrosion and damage from prolonged exposure to seawater. Bronze thru hull mounting offers sturdy protection against mechanical wear and potential leaks, ensuring dependable sensor operation over time. This durable design not only supports longevity but also maintains consistent data flow, critical for effective vessel management. The robust construction makes it suitable for a wide range of vessel types and marine conditions.

Comprehensive Multi-Sensor Capabilities

Beyond just measuring depth, the Simrad DST810 incorporates multiple sensors within one compact unit, offering speed through water and water temperature data. This multi-functional capability provides a comprehensive understanding of underwater environments that supports navigation decisions and performance optimization. The DST810’s smart interface enables straightforward integration with Simrad systems, allowing users to access all relevant data from a single, easy-to-read display. This multi-parameter measurement enhances situational awareness and operational precision on every voyage.
