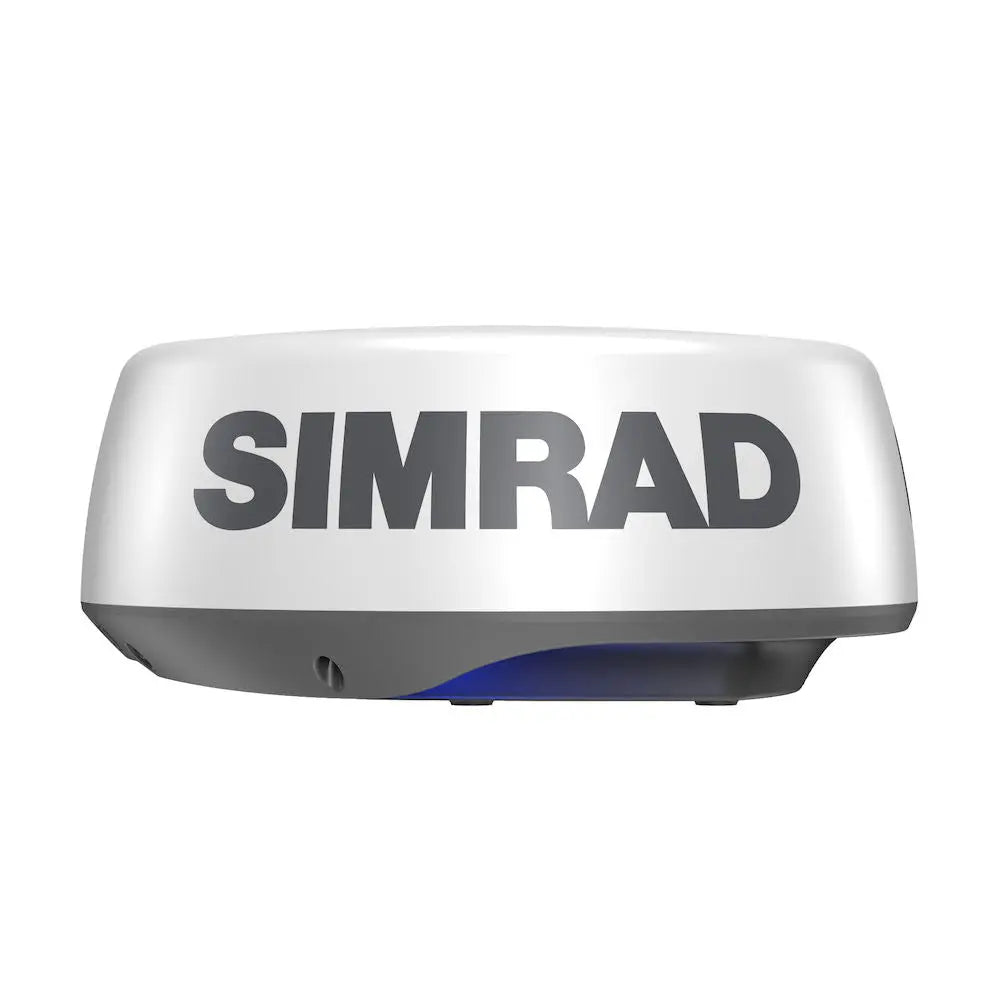

Simrad Halo 20+ Radar Dome - Compact 36 Nautical Mile Range with Dual Range and VelocityTrack Technology

The Simrad Halo 20+ Radar Dome (Part Number: 000-14536-001) offers exceptional short, mid, and long-range detection capabilities in a compact 20-inch dome design. This radar features advanced pulse compression technology with beam sharpening, ensuring high detection accuracy across its 36 nautical mile range. Its dual range operation allows you to monitor both near and far targets simultaneously, providing comprehensive situational awareness vital for safe navigation in coastal and offshore environments. The Halo 20+ operates at an industry-leading 60 RPM, delivering a full 360-degree sweep every second, which facilitates near real-time updates for fast-moving targets and collision avoidance.

Designed for versatility, the Halo 20+ includes multiple operation modes such as harbor, offshore, weather, and bird detection, all optimized through advanced signal processing. VelocityTrack Doppler technology provides instant visual cues on whether targets are approaching or receding, with color-coded alerts to enhance hazard recognition. The radar automatically tracks up to 10 targets in MARPA mode, with the capability to monitor up to 20 targets in dual range, reducing the need for manual target selection and improving safety during complex navigation scenarios. The radar system wakes instantly from standby, providing immediate readiness even after power-down, which is crucial for unpredictable situations.

Constructed to withstand demanding marine conditions, the Halo 20+ is waterproof rated IPX6 and operates reliably over a wide temperature range. Its compact design, measuring approximately 20 inches in diameter and 8.8 inches in height, makes it suitable for a variety of vessels, from bay boats to larger offshore craft. The system's low power consumption and compliance with industry safety and environmental standards ensure efficient and responsible operation. Whether navigating crowded waterways or adverse weather conditions, the Simrad Halo 20+ Radar Dome provides a clear, high-speed, and reliable radar picture, enhancing safety and situational awareness at sea.

Features:

• 36 nautical mile range with advanced pulse compression technology

• Dual range operation for simultaneous near and far target monitoring

• Industry-first 60 RPM rotation for rapid 360-degree sweeps

• VelocityTrack Doppler technology for collision avoidance and hazard detection

• Multiple modes including harbor, offshore, weather, and bird detection

• MARPA target tracking for up to 10 targets, with dual range capability for 20 targets

• Instant wake from standby for immediate operation

• Compact dome design suitable for various vessel sizes

• Waterproof rating IPX6 with reliable performance in tough conditions

• Low power consumption with efficient operation
