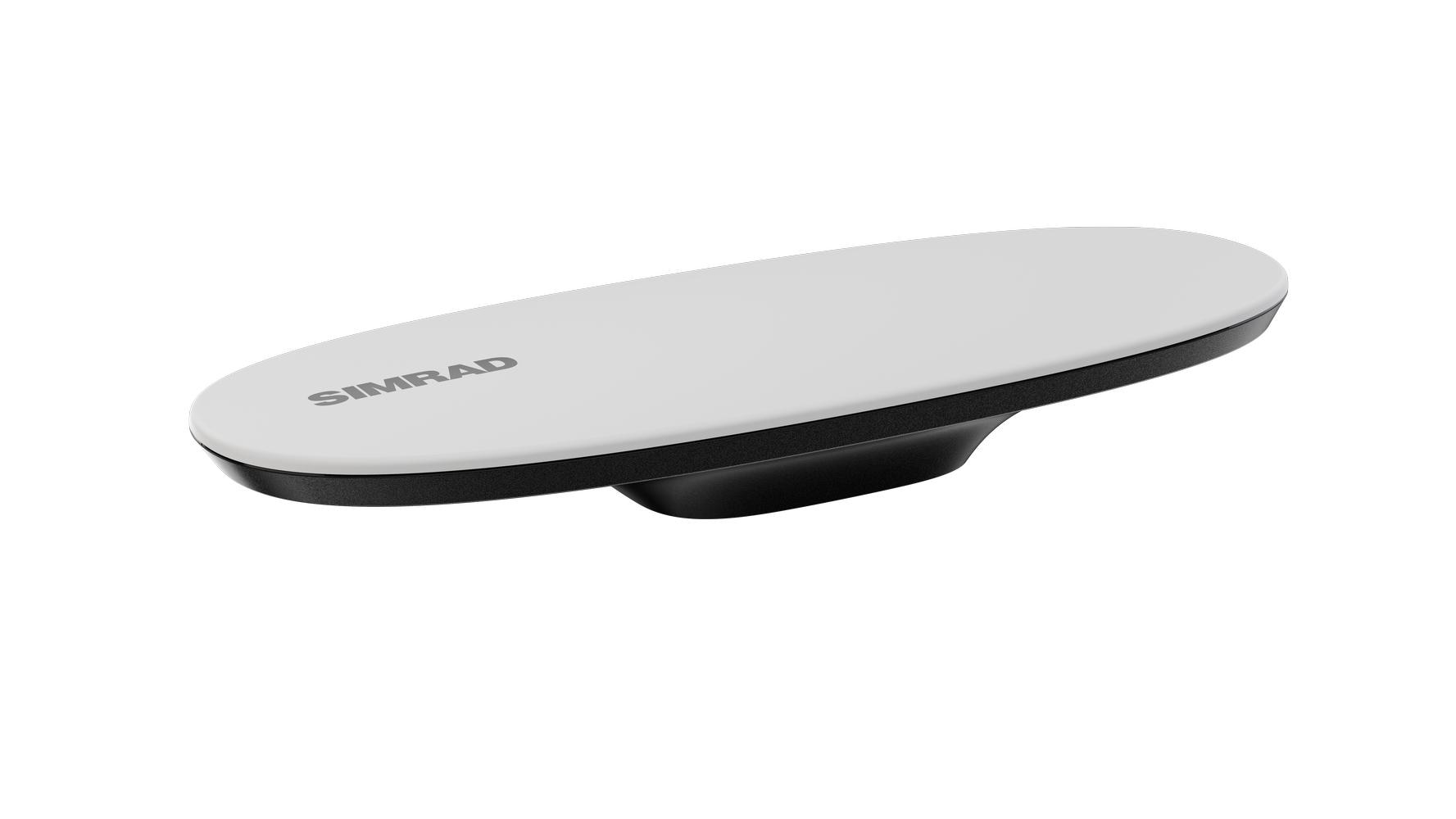

Simrad HS65 GNSS Compass with Flat Mount – High-Precision Marine Heading and Positioning System

The Simrad HS65 GNSS Compass with Flat Mount (Model: 000-16235-001) offers advanced navigation capabilities for marine applications. Designed to provide accurate heading and positioning data, this compass utilizes multiple GNSS constellations including GPS, GLONASS, Galileo, BeiDou, and QZSS, supporting SBAS for enhanced accuracy. Its heading accuracy of less than 2 RMS at 10Hz makes it ideal for autopilot and MARPA systems, ensuring reliable course data even in challenging environments. The device features dead reckoning capabilities, allowing for up to 3 minutes of heading data following satellite signal loss, which enhances navigational safety during signal interruptions. Position accuracy is within 1 meter at 10Hz, providing precise location tracking for dynamic maritime operations. The compass’s pitch and roll accuracy are less than 1.5 RMS, ensuring stable orientation data for vessel stability monitoring. Additionally, a backup magnetic compass with less than 3 RMS offers redundancy, supporting safe navigation in case of GNSS failure. The robust design includes a sleek profile with multiple mounting options—flat, raised, or pole mount—making installation flexible for various vessel configurations. The device is equipped with a 640mm/2ft NMEA 2000 fly-lead and low-profile mounting adapters, facilitating seamless integration with existing marine electronics systems. Operating within a temperature range of 25°F to 158°F, the HS65 is built for durability and reliable performance in diverse maritime conditions. Its IPX6 and IPX7 enclosure ratings provide protection against water ingress, ensuring longevity at sea. The unit consumes only 1.6W of power and features reverse polarity protection, supporting safe operation. Included accessories comprise the HS-65 compass, NMEA2000 T-Joiner, and flat mount, providing everything needed for quick setup and reliable operation. Whether used for precise navigation, autopilot integration, or heading reference, the Simrad HS65 GNSS Compass with Flat Mount is a comprehensive solution for modern marine navigation systems.

Features:

• Multiple GNSS Constellations Support: GPS, GLONASS, Galileo, BeiDou, QZSS for versatile positioning

• High-Precision Heading: Less than 2 RMS at 10Hz, ideal for autopilot and MARPA applications

• Dead Reckoning: Maintains heading accuracy up to 3 minutes after satellite signal loss

• Accurate Positioning: Less than 1 meter accuracy at 10Hz for precise vessel tracking

• Pitch and Roll Accuracy: Less than 1.5 RMS for stable orientation data

• Backup Magnetic Compass: Less than 3 RMS for redundancy in GNSS failure scenarios

• Flexible Mounting Options: Flat, raised, or pole mount configurations for versatile installation

• Waterproof Enclosure: IPX6 and IPX7 ratings for durability in harsh marine environments

• Low Power Consumption: 1.6W with reverse polarity protection for safe, efficient operation

• NMEA 2000 Connectivity: 640mm/2ft fly-lead for seamless system integration
